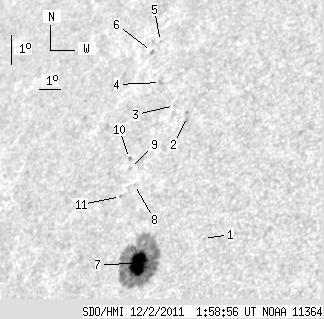

SDO HMI 2011-12-02 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.09 | 157.51 | 18.39 | 120.70 | 19.31 | 104.80 | -47.13 | 65.07 | 0.7651 | -662.0 | -295.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.25 | 19.74 | 107.53 | -44.41 | 63.51 | 0.7382 | 550.0 | 449.0 | |
| 0.00 | 3.42 | 0.00 | 2.67 | 23.59 | 105.23 | -46.71 | 59.60 | 0.7756 | -629.0 | -562.0 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 23.94 | 104.44 | -47.49 | 59.49 | 0.7843 | -396.0 | -322.0 | |
| 0.00 | 2.22 | 0.00 | 1.81 | 24.67 | 103.39 | -48.54 | 59.02 | 0.7967 | -633.0 | -520.1 | |
| 0.00 | 0.85 | 0.00 | 0.71 | 26.00 | 102.66 | -49.27 | 57.73 | 0.8078 | -599.0 | -511.7 | |
| 0.00 | 0.94 | 0.00 | 0.79 | 25.67 | 102.39 | -49.54 | 58.21 | 0.8090 | -491.0 | -402.5 | |
| 24.09 | 144.70 | 18.39 | 110.45 | 18.93 | 104.89 | -47.04 | 65.51 | 0.7630 | -956.8 | -304.1 | |
| 0.00 | 0.77 | 0.00 | 0.61 | 21.41 | 103.70 | -48.23 | 62.84 | 0.7827 | -291.0 | -209.4 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 21.91 | 103.28 | -48.65 | 62.38 | 0.7884 | 376.0 | 299.0 | |
| 0.00 | 1.11 | 0.00 | 0.89 | 22.23 | 103.08 | -48.85 | 62.06 | 0.7913 | 527.0 | 517.5 | |
| 0.00 | 1.28 | 0.00 | 1.02 | 21.02 | 103.19 | -48.74 | 63.49 | 0.7864 | 388.0 | 416.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
