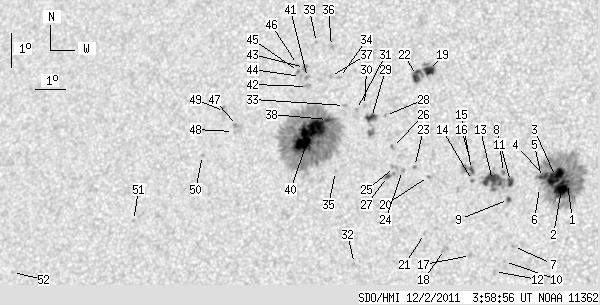

SDO HMI 2011-12-02 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.16 | 608.96 | 61.83 | 328.94 | 8.05 | 128.65 | -22.19 | 70.97 | 0.3962 | -24.1 | 70.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 171.63 | 0.76 | 89.43 | 7.05 | 134.03 | -16.81 | 69.08 | 0.3086 | -1280.9 | -479.5 | |
| 11.87 | -1.00 | 6.18 | -1.00 | 6.90 | 133.85 | -16.99 | 69.73 | 0.3106 | -1437.9 | 999999 | |
| 13.92 | -1.00 | 7.26 | -1.00 | 7.26 | 133.65 | -17.19 | 68.87 | 0.3157 | -1232.2 | 999999 | |
| 3.08 | -1.00 | 1.61 | -1.00 | 7.26 | 133.33 | -17.50 | 69.20 | 0.3205 | -890.5 | 999999 | |
| 0.43 | -1.00 | 0.22 | -1.00 | 7.23 | 133.21 | -17.62 | 69.42 | 0.3223 | -912.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 6.93 | 133.16 | -17.68 | 70.35 | 0.3215 | -116.0 | -129.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 5.18 | 132.41 | -18.43 | 76.22 | 0.3256 | -622.0 | -378.6 | |
| 4.36 | 34.94 | 2.29 | 18.42 | 7.10 | 132.24 | -18.59 | 70.71 | 0.3367 | -1113.8 | -772.2 | |
| 1.45 | 2.14 | 0.76 | 1.12 | 6.57 | 132.20 | -18.63 | 72.28 | 0.3347 | -1020.9 | -911.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 4.73 | 132.14 | -18.70 | 77.73 | 0.3284 | -795.0 | -631.2 | |
| 0.00 | 2.31 | 0.00 | 1.21 | 7.37 | 132.01 | -18.82 | 70.17 | 0.3417 | -920.0 | -742.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 4.43 | 131.83 | -19.00 | 78.79 | 0.3324 | -783.0 | -683.2 | |
| 14.86 | -8.00 | 7.84 | -8.00 | 7.13 | 131.68 | -19.16 | 71.14 | 0.3457 | -984.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 7.13 | 131.04 | -19.79 | 71.68 | 0.3555 | -983.0 | -769.5 | |
| 1.88 | 10.42 | 1.00 | 5.53 | 7.46 | 131.00 | -19.84 | 70.84 | 0.3578 | -959.3 | -621.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 7.63 | 130.99 | -19.85 | 70.37 | 0.3588 | -429.0 | -459.2 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 4.90 | 131.07 | -19.77 | 77.85 | 0.3463 | -786.0 | -591.0 | |
| 0.00 | 3.42 | 0.00 | 1.81 | 5.08 | 130.24 | -20.60 | 77.82 | 0.3601 | -636.0 | -641.7 | |
| 6.58 | 22.81 | 3.55 | 12.31 | 10.41 | 129.48 | -21.36 | 64.87 | 0.3974 | -1110.5 | -727.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 7.24 | 129.64 | -21.20 | 72.47 | 0.3778 | -767.0 | -651.9 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 5.55 | 129.58 | -21.25 | 76.91 | 0.3720 | -681.0 | -530.8 | |
| 7.35 | -19.00 | 3.97 | -19.00 | 10.25 | 129.07 | -21.77 | 65.61 | 0.4024 | -839.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 7.54 | 129.17 | -21.66 | 72.06 | 0.3863 | -757.0 | -665.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 7.42 | 128.80 | -22.04 | 72.63 | 0.3916 | -891.0 | -727.2 | |
| 0.00 | 3.08 | 0.00 | 1.66 | 7.50 | 128.53 | -22.30 | 72.59 | 0.3960 | -570.0 | -524.9 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 8.10 | 128.44 | -22.40 | 71.22 | 0.4002 | 915.0 | 766.1 | |
| 1.45 | 4.10 | 0.78 | 2.21 | 7.24 | 128.32 | -22.51 | 73.39 | 0.3981 | -866.2 | -710.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 9.05 | 128.15 | -22.69 | 69.19 | 0.4092 | 733.0 | 612.8 | |
| 5.13 | 12.22 | 2.79 | 6.64 | 8.99 | 127.70 | -23.14 | 69.68 | 0.4157 | 1068.9 | 897.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 9.35 | 127.44 | -23.39 | 69.05 | 0.4213 | 701.0 | 471.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 9.23 | 127.19 | -23.64 | 69.52 | 0.4244 | 960.0 | 803.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 4.65 | 127.37 | -23.47 | 80.21 | 0.4045 | -497.0 | -425.3 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 9.34 | 126.79 | -24.05 | 69.55 | 0.4310 | 885.0 | 706.2 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 10.18 | 126.56 | -24.28 | 67.89 | 0.4386 | 858.0 | 680.7 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 7.38 | 126.62 | -24.21 | 74.09 | 0.4247 | 660.0 | 527.6 | |
| 0.00 | 2.05 | 0.00 | 1.14 | 11.11 | 126.22 | -24.62 | 66.19 | 0.4487 | 817.0 | 651.4 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 10.21 | 126.26 | -24.57 | 68.05 | 0.4431 | 912.0 | 703.2 | |
| 1.11 | 284.31 | 0.61 | 156.91 | 8.92 | 126.26 | -24.57 | 70.84 | 0.4368 | 1062.6 | 432.3 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 11.23 | 125.71 | -25.13 | 66.34 | 0.4567 | 779.0 | 617.3 | |
| 40.24 | -38.00 | 22.21 | -38.00 | 8.47 | 125.70 | -25.14 | 72.19 | 0.4432 | 1335.6 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.33 | 10.18 | 125.50 | -25.33 | 68.68 | 0.4540 | 891.0 | 755.1 | |
| 0.00 | 3.50 | 0.00 | 1.94 | 9.91 | 125.52 | -25.31 | 69.23 | 0.4524 | 801.0 | 708.7 | |
| 0.00 | 3.67 | 0.00 | 2.04 | 10.47 | 125.38 | -25.46 | 68.14 | 0.4574 | 854.0 | 818.7 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 10.20 | 125.27 | -25.57 | 68.78 | 0.4576 | 993.0 | 758.7 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 10.35 | 125.19 | -25.65 | 68.53 | 0.4595 | 757.0 | 662.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 10.56 | 125.13 | -25.70 | 68.13 | 0.4613 | 677.0 | 518.9 | |
| 0.00 | 3.42 | 0.00 | 1.93 | 8.73 | 123.28 | -27.56 | 73.02 | 0.4801 | 407.0 | 460.6 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 8.55 | 123.16 | -27.68 | 73.44 | 0.4812 | 664.0 | 605.9 | |
| 0.00 | 5.47 | 0.00 | 3.10 | 9.14 | 122.80 | -28.03 | 72.44 | 0.4887 | 736.0 | 626.2 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 7.83 | 122.16 | -28.68 | 75.36 | 0.4934 | 712.0 | 513.3 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 5.88 | 119.92 | -30.91 | 79.94 | 0.5211 | 712.0 | 567.4 | |
| 0.00 | 1.37 | 0.00 | 0.83 | 4.31 | 115.72 | -35.11 | 83.65 | 0.5793 | -591.0 | -400.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
