SDO HMI 2011-12-02 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 25.63 | 3.32 | 14.51 | 20.28 | 129.28 | -21.01 | 44.39 | 0.4802 | 538.1 | 487.1 | |
|
previous
or next observation for the same group /

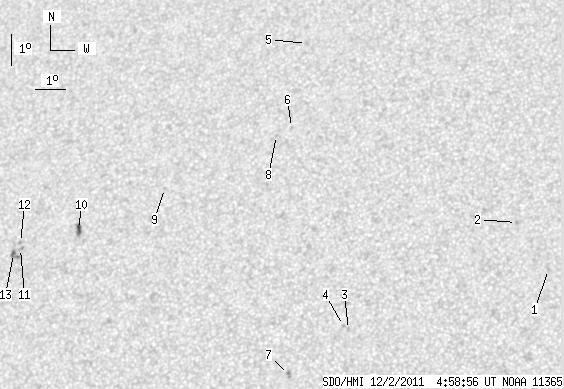

back to the solar disc SDO HMI 2011-12-02 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.13 | 141.64 | -8.65 | 24.28 | 0.3471 | 829.0 | 592.9 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 20.60 | 140.53 | -9.76 | 25.06 | 0.3761 | 828.0 | 640.1 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 17.26 | 135.41 | -14.88 | 40.81 | 0.3769 | 876.0 | 720.0 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 17.38 | 135.24 | -15.05 | 40.90 | 0.3802 | 797.0 | 643.2 | |
| 0.00 | 2.56 | 0.00 | 1.47 | 26.32 | 132.96 | -17.33 | 31.74 | 0.5097 | 482.0 | 333.0 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 23.60 | 132.84 | -17.45 | 35.28 | 0.4777 | 777.0 | 559.6 | |
| 0.00 | 2.82 | 0.00 | 1.51 | 15.87 | 133.60 | -16.69 | 46.64 | 0.3816 | 813.0 | 728.0 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 23.34 | 132.37 | -17.92 | 36.32 | 0.4789 | 713.0 | 562.5 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 21.64 | 128.82 | -21.47 | 43.64 | 0.4951 | 652.0 | 474.9 | |
| 3.50 | 5.64 | 2.02 | 3.25 | 20.33 | 126.07 | -24.22 | 48.88 | 0.5126 | -952.1 | -690.9 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 19.72 | 124.16 | -26.13 | 51.83 | 0.5295 | 994.0 | 737.7 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 19.91 | 124.12 | -26.17 | 51.56 | 0.5314 | 896.0 | 657.8 | |
| 2.22 | 4.87 | 1.30 | 2.84 | 19.57 | 123.94 | -26.35 | 52.29 | 0.5308 | 747.4 | 804.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
