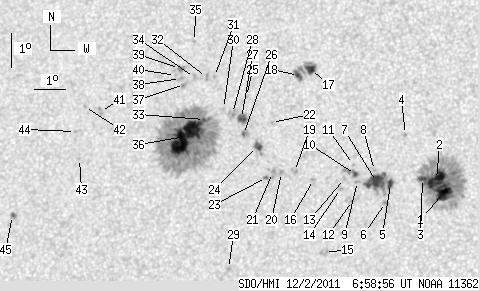

SDO HMI 2011-12-02 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.63 | 621.09 | 69.96 | 331.68 | 8.05 | 128.68 | -20.52 | 69.54 | 0.3709 | -21.1 | 79.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.03 | 172.74 | 9.31 | 89.24 | 6.83 | 133.95 | -15.25 | 67.89 | 0.2832 | -1357.3 | -437.7 | |
| 15.46 | -1.00 | 8.00 | -1.00 | 7.21 | 133.72 | -15.48 | 66.93 | 0.2891 | -1256.6 | 999999 | |
| 2.90 | -1.00 | 1.51 | -1.00 | 7.24 | 133.28 | -15.91 | 67.38 | 0.2960 | -898.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 8.55 | 132.70 | -16.50 | 64.15 | 0.3134 | -888.0 | -608.7 | |
| 3.84 | 35.45 | 2.00 | 18.50 | 7.09 | 132.30 | -16.90 | 69.00 | 0.3104 | -1152.0 | -839.1 | |
| 0.00 | 1.96 | 0.00 | 1.02 | 6.53 | 132.16 | -17.04 | 70.88 | 0.3095 | -1077.0 | -852.7 | |
| 19.73 | -5.00 | 10.30 | -5.00 | 7.15 | 131.86 | -17.34 | 69.30 | 0.3176 | -1000.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 7.48 | 131.78 | -17.42 | 68.41 | 0.3206 | -651.0 | -481.4 | |
| 0.00 | 2.22 | 0.00 | 1.16 | 7.15 | 131.26 | -17.94 | 69.91 | 0.3268 | -949.0 | -692.2 | |
| 1.79 | 7.09 | 0.94 | 3.72 | 7.35 | 131.19 | -18.01 | 69.38 | 0.3290 | -1007.6 | -734.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 7.65 | 131.12 | -18.08 | 68.60 | 0.3319 | -759.0 | -534.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 6.58 | 131.13 | -18.07 | 71.69 | 0.3260 | -932.0 | -780.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 7.23 | 130.85 | -18.35 | 70.05 | 0.3337 | -853.0 | -637.1 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 6.94 | 130.74 | -18.46 | 71.01 | 0.3339 | -774.0 | -633.0 | |
| 0.00 | 4.27 | 0.00 | 2.24 | 5.03 | 130.30 | -18.89 | 76.88 | 0.3327 | -690.0 | -663.1 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 7.20 | 129.88 | -19.32 | 71.03 | 0.3486 | -891.0 | -653.1 | |
| 5.38 | 21.87 | 2.87 | 11.68 | 10.48 | 129.60 | -19.60 | 62.79 | 0.3725 | -1162.9 | -757.1 | |
| 4.02 | -17.00 | 2.15 | -17.00 | 10.30 | 129.23 | -19.97 | 63.65 | 0.3766 | -839.8 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.63 | 7.43 | 129.27 | -19.93 | 70.92 | 0.3593 | -827.0 | -641.2 | |
| 0.00 | 2.05 | 0.00 | 1.09 | 7.40 | 128.85 | -20.34 | 71.34 | 0.3655 | -864.0 | -630.1 | |
| 0.00 | 5.38 | 0.00 | 2.87 | 7.40 | 128.57 | -20.63 | 71.57 | 0.3699 | -798.0 | -624.7 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 8.89 | 128.45 | -20.74 | 67.88 | 0.3794 | 853.0 | 666.3 | |
| 1.37 | 1.71 | 0.73 | 0.91 | 7.25 | 128.38 | -20.81 | 72.10 | 0.3721 | -782.3 | -738.2 | |
| 4.53 | 8.12 | 2.42 | 4.34 | 8.17 | 128.05 | -21.15 | 70.02 | 0.3817 | 1030.5 | 629.0 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 9.67 | 127.60 | -21.60 | 66.78 | 0.3965 | -541.0 | -366.9 | |
| 1.11 | 3.84 | 0.60 | 2.07 | 8.53 | 127.58 | -21.62 | 69.53 | 0.3906 | 888.8 | 851.3 | |
| 5.89 | 7.09 | 3.17 | 3.82 | 9.01 | 127.48 | -21.71 | 68.45 | 0.3946 | 1071.0 | 831.4 | |
| 0.00 | 8.03 | 0.00 | 4.34 | 9.15 | 127.18 | -22.01 | 68.35 | 0.3999 | 883.0 | 599.8 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 4.55 | 127.28 | -21.92 | 79.81 | 0.3797 | -803.0 | -715.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 9.30 | 126.88 | -22.32 | 68.26 | 0.4052 | 802.0 | 553.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 10.26 | 126.52 | -22.68 | 66.37 | 0.4159 | 874.0 | 749.2 | |
| 0.00 | 2.31 | 0.00 | 1.26 | 10.23 | 126.26 | -22.93 | 66.66 | 0.4195 | 912.0 | 772.8 | |
| 0.85 | 296.18 | 0.46 | 161.28 | 8.97 | 126.29 | -22.91 | 69.50 | 0.4123 | 921.1 | 429.2 | |
| 0.00 | 2.14 | 0.00 | 1.17 | 10.23 | 125.87 | -23.33 | 67.00 | 0.4252 | 908.0 | 727.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 11.31 | 125.78 | -23.42 | 64.72 | 0.4328 | 742.0 | 606.4 | |
| 44.94 | -33.00 | 24.48 | -33.00 | 8.46 | 125.70 | -23.49 | 71.10 | 0.4186 | 1311.6 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.68 | 10.01 | 125.56 | -23.64 | 67.71 | 0.4286 | 976.0 | 774.9 | |
| 0.00 | 2.39 | 0.00 | 1.31 | 10.19 | 125.41 | -23.78 | 67.44 | 0.4317 | 988.0 | 761.0 | |
| 0.00 | 5.04 | 0.00 | 2.77 | 10.49 | 125.36 | -23.84 | 66.83 | 0.4341 | 904.0 | 745.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 10.28 | 125.24 | -23.95 | 67.38 | 0.4346 | 938.0 | 749.4 | |
| 0.00 | 2.65 | 0.00 | 1.48 | 9.19 | 122.84 | -26.35 | 71.35 | 0.4644 | 805.0 | 758.9 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 9.34 | 122.30 | -26.90 | 71.37 | 0.4731 | 757.0 | 569.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 7.79 | 122.25 | -26.95 | 74.60 | 0.4677 | 710.0 | 594.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 8.59 | 122.05 | -27.14 | 73.04 | 0.4736 | 740.0 | 601.9 | |
| 1.79 | 2.56 | 1.02 | 1.46 | 6.08 | 120.09 | -29.10 | 78.97 | 0.4948 | 791.6 | 808.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
