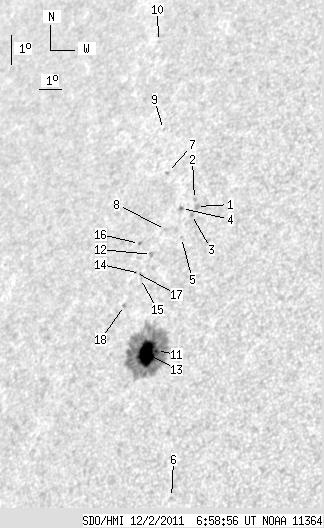

SDO HMI 2011-12-02 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.33 | 176.59 | 19.90 | 129.24 | 19.41 | 104.72 | -44.48 | 63.94 | 0.7381 | -683.0 | -275.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.56 | 0.00 | 1.91 | 23.59 | 105.26 | -43.94 | 58.40 | 0.7490 | -672.0 | -662.4 | |
| 0.00 | 1.28 | 0.00 | 0.96 | 23.81 | 105.07 | -44.13 | 58.20 | 0.7518 | -650.0 | -544.1 | |
| 0.00 | 1.62 | 0.00 | 1.21 | 23.33 | 105.14 | -44.06 | 58.77 | 0.7491 | -708.0 | -628.5 | |
| 0.00 | 1.54 | 0.00 | 1.16 | 23.52 | 104.61 | -44.59 | 58.77 | 0.7551 | -700.0 | -595.1 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 22.59 | 105.00 | -44.20 | 59.76 | 0.7475 | -539.0 | -462.2 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 14.51 | 107.13 | -42.07 | 69.62 | 0.6944 | -688.0 | -560.9 | |
| 0.00 | 1.37 | 0.00 | 1.06 | 24.67 | 103.44 | -45.76 | 57.87 | 0.7711 | -627.0 | -488.6 | |
| 0.00 | 0.60 | 0.00 | 0.45 | 22.84 | 104.17 | -45.03 | 59.80 | 0.7567 | -524.0 | -440.6 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 26.07 | 102.55 | -46.64 | 56.57 | 0.7849 | -534.0 | -390.3 | |
| 0.00 | 1.11 | 0.00 | 0.94 | 28.98 | 100.64 | -48.56 | 53.99 | 0.8130 | -488.0 | -322.1 | |
| 0.85 | 156.59 | 0.62 | 114.07 | 19.03 | 105.21 | -43.99 | 64.23 | 0.7314 | -1150.8 | -266.3 | |
| 0.00 | 2.14 | 0.00 | 1.61 | 22.04 | 103.87 | -45.33 | 60.93 | 0.7566 | -581.0 | -470.4 | |
| 26.48 | -11.00 | 19.28 | -11.00 | 18.93 | 104.81 | -44.39 | 64.52 | 0.7354 | -964.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.84 | 21.44 | 103.61 | -45.59 | 61.79 | 0.7569 | 636.0 | 566.6 | |
| 0.00 | 0.68 | 0.00 | 0.51 | 21.28 | 103.67 | -45.52 | 61.96 | 0.7557 | 513.0 | 368.4 | |
| 0.00 | 1.20 | 0.00 | 0.92 | 22.39 | 103.17 | -46.03 | 60.78 | 0.7648 | 705.0 | 573.4 | |
| 0.00 | 0.94 | 0.00 | 0.71 | 21.47 | 103.37 | -45.83 | 61.84 | 0.7594 | 378.0 | 358.1 | |
| 0.00 | 1.54 | 0.00 | 1.16 | 20.42 | 103.28 | -45.92 | 63.19 | 0.7566 | -726.0 | -589.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
