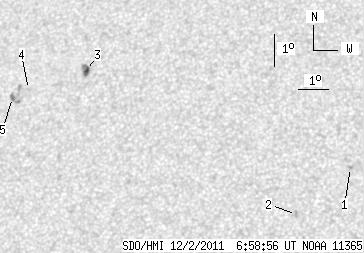

SDO HMI 2011-12-02 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.70 | 20.25 | 2.70 | 11.49 | 19.25 | 126.31 | -22.89 | 48.71 | 0.4875 | 375.5 | 301.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.55 | 17.34 | 135.27 | -13.93 | 38.81 | 0.3682 | 845.0 | 713.8 | |
| 0.00 | 2.48 | 0.00 | 1.32 | 15.89 | 133.66 | -15.54 | 44.59 | 0.3686 | 837.0 | 689.7 | |
| 2.48 | 6.66 | 1.41 | 3.80 | 20.32 | 126.22 | -22.97 | 47.47 | 0.4987 | -946.7 | -782.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 19.72 | 124.32 | -24.87 | 50.54 | 0.5149 | 832.0 | 572.8 | |
| 2.22 | 9.14 | 1.29 | 5.28 | 19.46 | 123.81 | -25.39 | 51.48 | 0.5188 | 745.2 | 729.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
