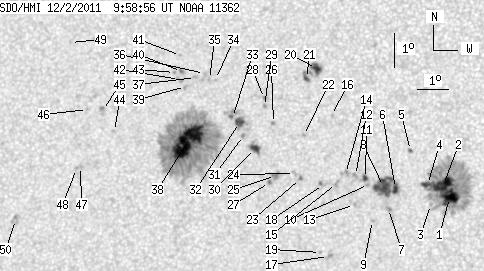

SDO HMI 2011-12-02 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.49 | 630.97 | 70.09 | 333.59 | 7.99 | 128.66 | -18.90 | 68.03 | 0.3462 | -48.6 | 104.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.91 | 176.28 | 8.66 | 90.38 | 6.79 | 134.00 | -13.56 | 65.61 | 0.2568 | -1364.1 | -409.7 | |
| 16.48 | -1.00 | 8.46 | -1.00 | 7.17 | 133.81 | -13.75 | 64.55 | 0.2624 | -1226.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 6.58 | 133.43 | -14.13 | 67.20 | 0.2643 | -216.0 | -140.2 | |
| 5.47 | -1.00 | 2.81 | -1.00 | 7.17 | 133.32 | -14.24 | 65.30 | 0.2699 | -865.5 | 999999 | |
| 1.71 | 1.96 | 0.88 | 1.01 | 8.18 | 132.76 | -14.80 | 62.83 | 0.2856 | -794.8 | -658.0 | |
| 3.84 | 33.22 | 1.98 | 17.18 | 7.05 | 132.34 | -15.23 | 67.08 | 0.2843 | -1143.0 | -836.0 | |
| 0.00 | 2.56 | 0.00 | 1.32 | 6.46 | 132.14 | -15.42 | 69.29 | 0.2838 | -1053.0 | -867.6 | |
| 21.10 | -6.00 | 10.91 | -6.00 | 7.11 | 131.96 | -15.60 | 67.37 | 0.2904 | -1015.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 6.10 | 131.66 | -15.91 | 71.02 | 0.2895 | -797.0 | -605.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 7.17 | 131.50 | -16.07 | 67.76 | 0.2980 | -802.0 | -626.6 | |
| 2.22 | 4.01 | 1.15 | 2.08 | 7.34 | 131.40 | -16.16 | 67.32 | 0.3006 | -994.8 | -760.1 | |
| 0.00 | 2.65 | 0.00 | 1.38 | 7.43 | 131.08 | -16.48 | 67.43 | 0.3060 | -722.0 | -651.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 6.57 | 131.08 | -16.48 | 70.11 | 0.3010 | -818.0 | -630.2 | |
| 0.00 | 4.61 | 0.00 | 2.40 | 7.49 | 130.77 | -16.79 | 67.62 | 0.3112 | -687.0 | -590.3 | |
| 0.00 | 2.48 | 0.00 | 1.29 | 7.19 | 130.50 | -17.06 | 68.82 | 0.3136 | -744.0 | -619.2 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 9.22 | 130.25 | -17.31 | 63.27 | 0.3303 | -753.0 | -652.5 | |
| 0.00 | 3.16 | 0.00 | 1.64 | 5.03 | 130.32 | -17.24 | 75.72 | 0.3060 | -838.0 | -731.2 | |
| 0.00 | 3.16 | 0.00 | 1.65 | 7.16 | 130.10 | -17.47 | 69.34 | 0.3197 | -620.0 | -566.6 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 5.14 | 130.07 | -17.49 | 75.54 | 0.3105 | -737.0 | -549.6 | |
| 6.83 | 16.57 | 3.61 | 8.75 | 10.62 | 129.70 | -17.86 | 60.27 | 0.3486 | -1032.0 | -791.7 | |
| 2.48 | -20.00 | 1.31 | -20.00 | 10.32 | 129.41 | -18.16 | 61.43 | 0.3506 | -892.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 8.62 | 129.41 | -18.16 | 65.94 | 0.3389 | -739.0 | -617.6 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 7.34 | 129.37 | -18.19 | 69.57 | 0.3319 | -1001.0 | -749.4 | |
| 0.00 | 2.22 | 0.00 | 1.17 | 7.49 | 129.18 | -18.39 | 69.34 | 0.3357 | -569.0 | -494.7 | |
| 0.00 | 4.53 | 0.00 | 2.39 | 7.42 | 128.58 | -18.98 | 70.07 | 0.3446 | -857.0 | -767.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 8.97 | 128.44 | -19.12 | 66.05 | 0.3556 | 938.0 | 771.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 7.21 | 128.40 | -19.16 | 70.81 | 0.3463 | -883.0 | -807.1 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 9.72 | 128.11 | -19.45 | 64.49 | 0.3653 | -782.0 | -663.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 9.48 | 128.12 | -19.44 | 65.08 | 0.3635 | -835.0 | -653.5 | |
| 4.78 | 8.63 | 2.54 | 4.58 | 8.22 | 127.91 | -19.65 | 68.54 | 0.3593 | 1154.6 | 875.0 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 8.61 | 127.51 | -20.06 | 67.92 | 0.3675 | 1085.0 | 921.6 | |
| 6.23 | 9.57 | 3.32 | 5.10 | 9.00 | 127.36 | -20.21 | 67.08 | 0.3720 | 1105.8 | 698.9 | |
| 0.60 | 8.80 | 0.32 | 4.70 | 9.15 | 127.12 | -20.44 | 66.93 | 0.3764 | 816.6 | 790.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 10.28 | 126.51 | -21.06 | 64.79 | 0.3925 | 666.0 | 449.0 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 10.28 | 126.31 | -21.25 | 64.98 | 0.3953 | 882.0 | 621.7 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 10.46 | 126.14 | -21.42 | 64.73 | 0.3989 | 741.0 | 624.8 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 10.34 | 125.86 | -21.71 | 65.28 | 0.4023 | 847.0 | 731.8 | |
| 44.84 | 297.99 | 24.14 | 160.33 | 8.42 | 125.72 | -21.84 | 69.93 | 0.3935 | 1306.3 | 430.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 10.07 | 125.55 | -22.01 | 66.19 | 0.4051 | 928.0 | 801.5 | |
| 0.00 | 1.96 | 0.00 | 1.07 | 10.52 | 125.39 | -22.17 | 65.31 | 0.4102 | 997.0 | 813.9 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 11.00 | 125.32 | -22.24 | 64.30 | 0.4142 | 771.0 | 615.6 | |
| 0.00 | 2.82 | 0.00 | 1.53 | 10.28 | 125.34 | -22.22 | 65.90 | 0.4094 | 798.0 | 724.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 10.48 | 125.16 | -22.40 | 65.59 | 0.4133 | 736.0 | 580.3 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 8.71 | 123.33 | -24.23 | 71.00 | 0.4308 | 760.0 | 557.1 | |
| 0.00 | 4.19 | 0.00 | 2.31 | 9.34 | 122.89 | -24.67 | 69.93 | 0.4403 | 863.0 | 730.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 9.36 | 122.40 | -25.17 | 70.21 | 0.4478 | 686.0 | 552.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 7.66 | 122.28 | -25.28 | 73.97 | 0.4422 | 739.0 | 573.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 7.60 | 122.16 | -25.41 | 74.17 | 0.4439 | 690.0 | 571.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 11.37 | 121.65 | -25.91 | 66.58 | 0.4688 | 684.0 | 587.8 | |
| 0.00 | 5.81 | 0.00 | 3.25 | 6.07 | 120.22 | -27.34 | 78.34 | 0.4683 | 870.0 | 664.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
