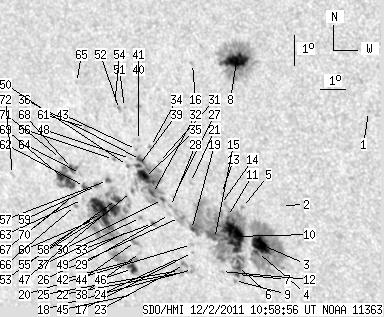

SDO HMI 2011-12-02 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 183.60 | 803.70 | 128.11 | 556.54 | -21.74 | 108.00 | -39.02 | 123.04 | 0.6994 | -34.8 | 18.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.47 | -18.78 | 116.03 | -30.98 | 124.30 | 0.5922 | -629.0 | -389.1 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -21.79 | 112.03 | -34.98 | 125.59 | 0.6570 | 722.0 | 515.7 | |
| 17.93 | 117.34 | 12.05 | 78.69 | -23.05 | 110.83 | -36.19 | 126.45 | 0.6777 | 1043.0 | 493.4 | |
| 1.11 | -3.00 | 0.75 | -3.00 | -23.31 | 110.63 | -36.39 | 126.65 | 0.6814 | 676.0 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.37 | -21.87 | 110.48 | -36.54 | 124.67 | 0.6742 | -129.0 | 128.3 | |
| 4.70 | 201.72 | 3.22 | 137.70 | -23.78 | 109.67 | -37.35 | 126.62 | 0.6941 | 643.9 | 229.0 | |
| 1.62 | -6.00 | 1.12 | -6.00 | -24.04 | 109.58 | -37.44 | 126.89 | 0.6966 | 615.6 | 999999 | |
| 21.61 | 96.84 | 13.85 | 62.03 | -17.22 | 111.45 | -35.57 | 118.86 | 0.6367 | 1008.0 | 412.8 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -24.24 | 109.39 | -37.63 | 127.02 | 0.6997 | 439.0 | 397.9 | |
| 35.01 | -6.00 | 23.78 | -6.00 | -22.80 | 109.83 | -37.19 | 125.48 | 0.6866 | 913.3 | 999999 | |
| 0.68 | -6.00 | 0.46 | -6.00 | -22.16 | 109.79 | -37.23 | 124.62 | 0.6832 | 759.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.07 | -23.95 | 108.95 | -38.06 | 126.39 | 0.7023 | 595.0 | 385.5 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -21.43 | 109.77 | -37.24 | 123.64 | 0.6791 | 594.0 | 462.9 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -21.78 | 109.62 | -37.39 | 124.02 | 0.6827 | 605.0 | 529.4 | |
| 0.43 | -6.00 | 0.29 | -6.00 | -22.88 | 109.03 | -37.99 | 125.08 | 0.6952 | 225.6 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.29 | -17.33 | 109.73 | -37.29 | 118.02 | 0.6575 | 257.0 | 353.0 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -23.34 | 107.97 | -39.05 | 125.03 | 0.7087 | 291.0 | 231.3 | |
| 0.00 | 3.59 | 0.00 | 2.53 | -23.89 | 107.77 | -39.25 | 125.60 | 0.7138 | 649.0 | 527.7 | |
| 0.85 | -6.00 | 0.59 | -6.00 | -22.59 | 108.18 | -38.83 | 124.21 | 0.7024 | 361.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.95 | -23.08 | 108.02 | -39.00 | 124.73 | 0.7068 | -184.0 | -82.0 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -21.09 | 108.63 | -38.39 | 122.51 | 0.6894 | 631.0 | 541.5 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -23.96 | 107.53 | -39.48 | 125.55 | 0.7165 | 292.0 | 235.5 | |
| 0.00 | 3.33 | 0.00 | 2.35 | -23.73 | 107.49 | -39.52 | 125.24 | 0.7157 | 597.0 | 464.1 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -23.51 | 107.41 | -39.61 | 124.91 | 0.7153 | 475.0 | 380.9 | |
| 0.00 | 6.66 | 0.00 | 4.74 | -23.93 | 107.21 | -39.81 | 125.33 | 0.7196 | -280.0 | -156.7 | |
| 0.00 | 10.33 | 0.00 | 7.18 | -22.21 | 107.82 | -39.20 | 123.50 | 0.7041 | -197.0 | -52.2 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -21.54 | 107.79 | -39.23 | 122.62 | 0.7008 | -556.0 | -428.1 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -21.86 | 107.56 | -39.46 | 122.91 | 0.7049 | -418.0 | -359.1 | |
| 0.00 | 2.05 | 0.00 | 1.43 | -22.12 | 107.43 | -39.58 | 123.17 | 0.7076 | -265.0 | -189.2 | |
| 1.28 | 88.65 | 0.89 | 61.95 | -21.64 | 107.30 | -39.71 | 122.48 | 0.7064 | -485.9 | -502.3 | |
| 0.00 | 1.37 | 0.00 | 0.94 | -20.46 | 107.52 | -39.50 | 121.06 | 0.6981 | -643.0 | -421.3 | |
| 2.99 | -30.00 | 2.09 | -30.00 | -21.45 | 106.95 | -40.07 | 122.04 | 0.7091 | -636.2 | 999999 | |
| 1.20 | 2.31 | 0.85 | 1.63 | -22.42 | 106.62 | -40.40 | 123.09 | 0.7175 | -709.4 | -647.3 | |
| 0.00 | 1.71 | 0.00 | 1.18 | -19.96 | 107.34 | -39.67 | 120.30 | 0.6974 | -706.0 | -641.0 | |
| 11.79 | -30.00 | 8.24 | -30.00 | -20.94 | 106.78 | -40.23 | 121.30 | 0.7083 | -927.7 | 999999 | |
| 4.01 | -30.00 | 2.80 | -30.00 | -20.37 | 106.80 | -40.22 | 120.56 | 0.7053 | -852.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -22.23 | 106.18 | -40.84 | 122.62 | 0.7210 | -809.0 | -679.4 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -23.36 | 105.76 | -41.25 | 123.81 | 0.7310 | -787.0 | -649.4 | |
| 1.96 | -30.00 | 1.37 | -30.00 | -20.56 | 106.66 | -40.36 | 120.73 | 0.7078 | -709.7 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.52 | -18.70 | 107.22 | -39.80 | 118.56 | 0.6926 | -742.0 | -518.5 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -19.77 | 106.90 | -40.11 | 119.82 | 0.7012 | -803.0 | -697.2 | |
| 0.94 | 32.71 | 0.68 | 24.01 | -23.59 | 105.50 | -41.52 | 123.96 | 0.7347 | -507.5 | -75.1 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -20.06 | 106.73 | -40.28 | 120.11 | 0.7045 | -799.0 | -672.4 | |
| 0.00 | 5.38 | 0.00 | 3.89 | -23.01 | 105.68 | -41.33 | 123.33 | 0.7300 | -583.0 | -531.5 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -24.74 | 104.91 | -42.11 | 125.05 | 0.7462 | 374.0 | 335.4 | |
| 6.15 | -42.00 | 4.50 | -42.00 | -23.88 | 105.21 | -41.80 | 124.17 | 0.7390 | 615.9 | 999999 | |
| 0.43 | -30.00 | 0.30 | -30.00 | -21.40 | 106.09 | -40.93 | 121.51 | 0.7178 | -646.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -20.34 | 106.39 | -40.62 | 120.31 | 0.7095 | -283.0 | -198.6 | |
| 0.00 | 2.90 | 0.00 | 2.10 | -22.65 | 105.56 | -41.46 | 122.82 | 0.7295 | -212.0 | -110.8 | |
| 0.34 | -30.00 | 0.24 | -30.00 | -20.57 | 106.20 | -40.82 | 120.50 | 0.7127 | 390.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -18.73 | 106.64 | -40.38 | 118.31 | 0.6993 | -781.0 | -624.2 | |
| 0.00 | 2.31 | 0.00 | 1.60 | -18.80 | 106.41 | -40.60 | 118.29 | 0.7020 | -804.0 | -648.5 | |
| 4.95 | 139.80 | 3.56 | 101.70 | -21.66 | 105.36 | -41.66 | 121.47 | 0.7266 | -939.8 | -403.6 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -18.68 | 106.24 | -40.77 | 118.04 | 0.7033 | -623.0 | -532.0 | |
| 9.48 | -53.00 | 6.85 | -53.00 | -21.95 | 105.13 | -41.89 | 121.72 | 0.7304 | -916.5 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -20.38 | 105.67 | -41.35 | 119.99 | 0.7174 | 506.0 | 408.8 | |
| 2.22 | 3.93 | 1.59 | 2.81 | -21.05 | 105.19 | -41.83 | 120.61 | 0.7255 | -790.9 | -567.6 | |
| 27.58 | -53.00 | 20.13 | -53.00 | -22.08 | 104.56 | -42.46 | 121.60 | 0.7368 | -785.5 | 999999 | |
| 1.54 | 2.39 | 1.11 | 1.73 | -21.22 | 104.66 | -42.36 | 120.56 | 0.7318 | -807.1 | -674.6 | |
| 1.20 | -53.00 | 0.88 | -53.00 | -22.31 | 104.17 | -42.85 | 121.69 | 0.7417 | -249.9 | 999999 | |
| 0.00 | 3.33 | 0.00 | 2.37 | -19.38 | 104.85 | -42.16 | 118.30 | 0.7215 | -793.0 | -563.4 | |
| 1.96 | 3.07 | 1.44 | 2.25 | -21.26 | 104.13 | -42.89 | 120.35 | 0.7374 | -746.5 | -655.3 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -21.67 | 103.89 | -43.13 | 120.76 | 0.7417 | -370.0 | -207.4 | |
| 0.00 | 1.79 | 0.00 | 1.31 | -20.84 | 104.10 | -42.91 | 119.82 | 0.7358 | -810.0 | -729.8 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -17.97 | 104.87 | -42.15 | 116.46 | 0.7154 | -566.0 | -432.5 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -21.87 | 103.50 | -43.51 | 120.82 | 0.7464 | -369.0 | -324.6 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -21.55 | 103.54 | -43.48 | 120.44 | 0.7446 | -308.0 | -322.2 | |
| 3.67 | 32.28 | 2.69 | 23.79 | -20.69 | 103.81 | -43.21 | 119.48 | 0.7381 | -864.6 | -545.0 | |
| 15.97 | -68.00 | 11.79 | -68.00 | -21.07 | 103.36 | -43.65 | 119.76 | 0.7443 | -657.3 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.59 | -21.81 | 103.04 | -43.98 | 120.53 | 0.7508 | -467.0 | -259.4 | |
| 0.00 | 2.05 | 0.00 | 1.51 | -20.37 | 103.40 | -43.62 | 118.90 | 0.7410 | -621.0 | -523.5 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -20.91 | 101.05 | -45.96 | 118.54 | 0.7668 | -485.0 | -349.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
