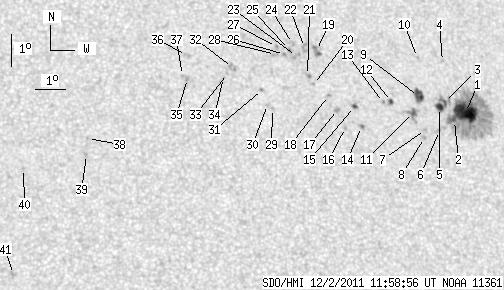

SDO HMI 2011-12-02 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.11 | 252.09 | 29.35 | 146.63 | 18.92 | 172.59 | 26.12 | 307.22 | 0.5239 | -304.3 | -143.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.07 | 147.13 | 15.94 | 86.72 | 18.71 | 174.38 | 27.91 | 304.95 | 0.5431 | -1119.3 | -326.0 | |
| 0.77 | -1.00 | 0.45 | -1.00 | 18.46 | 173.95 | 27.48 | 304.94 | 0.5361 | -984.8 | 999999 | |
| 1.96 | 15.46 | 1.15 | 9.05 | 19.02 | 173.70 | 27.23 | 306.07 | 0.5373 | -873.3 | -677.7 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 20.31 | 173.86 | 27.40 | 307.92 | 0.5492 | -563.0 | -440.7 | |
| 4.61 | -3.00 | 2.70 | -3.00 | 18.87 | 173.49 | 27.03 | 306.01 | 0.5336 | -1050.5 | 999999 | |
| 0.00 | 3.33 | 0.00 | 1.94 | 18.16 | 173.37 | 26.90 | 304.96 | 0.5267 | -843.0 | -732.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 18.19 | 172.89 | 26.42 | 305.46 | 0.5211 | -802.0 | -698.4 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 17.94 | 172.82 | 26.35 | 305.12 | 0.5183 | -884.0 | -713.1 | |
| 9.22 | 9.99 | 5.37 | 5.82 | 19.22 | 172.82 | 26.35 | 307.20 | 0.5283 | -887.6 | -684.7 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 20.44 | 173.00 | 26.53 | 308.94 | 0.5404 | -609.0 | -556.7 | |
| 3.07 | 9.65 | 1.78 | 5.59 | 18.72 | 172.56 | 26.09 | 306.65 | 0.5213 | -919.8 | -753.7 | |
| 1.62 | 2.82 | 0.94 | 1.63 | 19.06 | 171.85 | 25.38 | 307.91 | 0.5156 | -815.6 | -709.9 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 19.04 | 171.57 | 25.10 | 308.15 | 0.5121 | -801.0 | -758.3 | |
| 0.00 | 2.39 | 0.00 | 1.36 | 18.29 | 170.70 | 24.23 | 307.83 | 0.4954 | 577.0 | 540.1 | |
| 1.79 | 2.90 | 1.02 | 1.66 | 18.92 | 170.56 | 24.09 | 309.03 | 0.4990 | 599.7 | 391.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 18.26 | 170.15 | 23.68 | 308.38 | 0.4886 | 778.0 | 530.2 | |
| 0.00 | 2.56 | 0.00 | 1.45 | 18.82 | 169.96 | 23.49 | 309.53 | 0.4912 | 729.0 | 682.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 19.26 | 169.72 | 23.25 | 310.53 | 0.4923 | 641.0 | 479.2 | |
| 0.00 | 5.81 | 0.00 | 3.32 | 20.67 | 169.53 | 23.06 | 313.01 | 0.5032 | 921.0 | 746.3 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 19.61 | 169.26 | 22.79 | 311.63 | 0.4902 | 685.0 | 558.2 | |
| 0.00 | 2.39 | 0.00 | 1.36 | 19.89 | 169.10 | 22.63 | 312.27 | 0.4910 | 786.0 | 652.7 | |
| 0.00 | 4.53 | 0.00 | 2.58 | 20.77 | 169.13 | 22.66 | 313.62 | 0.4998 | 787.0 | 688.5 | |
| 0.00 | 2.90 | 0.00 | 1.65 | 20.49 | 168.82 | 22.35 | 313.56 | 0.4935 | 832.0 | 774.4 | |
| 0.00 | 2.31 | 0.00 | 1.31 | 20.90 | 168.74 | 22.27 | 314.29 | 0.4967 | 628.0 | 626.0 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 20.71 | 168.61 | 22.14 | 314.16 | 0.4934 | 1039.0 | 917.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 20.55 | 168.42 | 21.95 | 314.15 | 0.4898 | 989.0 | 834.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 20.80 | 168.18 | 21.71 | 314.84 | 0.4897 | 851.0 | 833.6 | |
| 0.00 | 2.13 | 0.00 | 1.21 | 20.55 | 168.11 | 21.64 | 314.54 | 0.4864 | 897.0 | 806.2 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 18.87 | 167.77 | 21.30 | 312.22 | 0.4661 | 792.0 | 614.8 | |
| 0.00 | 1.88 | 0.00 | 1.05 | 18.99 | 167.62 | 21.15 | 312.62 | 0.4656 | 936.0 | 667.7 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 19.46 | 167.51 | 21.05 | 313.53 | 0.4690 | 803.0 | 550.0 | |
| 0.00 | 4.70 | 0.00 | 2.63 | 20.15 | 166.60 | 20.13 | 315.87 | 0.4660 | 653.0 | 708.1 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.96 | 166.41 | 19.94 | 315.83 | 0.4619 | 760.0 | 577.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 19.84 | 166.26 | 19.79 | 315.83 | 0.4590 | 770.0 | 691.0 | |
| 0.00 | 1.96 | 0.00 | 1.09 | 19.81 | 165.06 | 18.59 | 317.51 | 0.4458 | 910.0 | 772.2 | |
| 0.00 | 2.31 | 0.00 | 1.28 | 20.53 | 165.11 | 18.64 | 318.57 | 0.4543 | 496.0 | 562.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 19.91 | 164.90 | 18.43 | 317.89 | 0.4452 | 837.0 | 692.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.96 | 161.60 | 15.13 | 320.04 | 0.3883 | -737.0 | -623.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.46 | 161.52 | 15.05 | 319.31 | 0.3817 | -838.0 | -697.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.04 | 159.48 | 13.01 | 322.53 | 0.3555 | -774.0 | -598.1 | |
| 0.00 | 3.16 | 0.00 | 1.65 | 13.80 | 158.96 | 12.49 | 317.11 | 0.3101 | -857.0 | -611.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
