SDO HMI 2011-12-02 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 190.70 | 848.51 | 131.84 | 583.41 | -21.73 | 107.96 | -38.51 | 123.32 | 0.6940 | 16.7 | 11.3 | |
|
previous
or next observation for the same group /

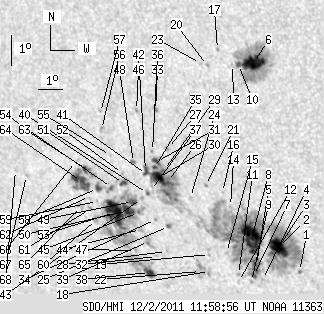

back to the solar disc SDO HMI 2011-12-02 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 1.37 | 0.80 | 0.91 | -23.85 | 111.46 | -35.01 | 128.28 | 0.6707 | 656.4 | 579.0 | |
| 18.19 | 346.52 | 12.13 | 233.41 | -23.08 | 110.87 | -35.60 | 126.88 | 0.6718 | 1046.2 | 300.5 | |
| 0.77 | -2.00 | 0.52 | -2.00 | -23.31 | 110.60 | -35.87 | 126.99 | 0.6760 | 693.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -24.13 | 109.90 | -36.57 | 127.56 | 0.6884 | 485.0 | 348.4 | |
| 8.97 | -2.00 | 6.09 | -2.00 | -23.64 | 109.81 | -36.65 | 126.89 | 0.6862 | 614.6 | 999999 | |
| 20.41 | 100.25 | 12.99 | 63.77 | -17.22 | 111.44 | -35.03 | 119.18 | 0.6303 | 1010.1 | 407.7 | |
| 2.22 | -2.00 | 1.52 | -2.00 | -24.00 | 109.57 | -36.90 | 127.19 | 0.6908 | 610.8 | 999999 | |
| 34.67 | -2.00 | 23.35 | -2.00 | -22.80 | 109.88 | -36.59 | 125.85 | 0.6803 | 948.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.88 | -24.20 | 109.43 | -37.04 | 127.35 | 0.6935 | 439.0 | 391.8 | |
| 2.31 | -6.00 | 1.48 | -6.00 | -17.29 | 110.85 | -35.62 | 118.92 | 0.6376 | 470.1 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.88 | -23.97 | 108.97 | -37.50 | 126.77 | 0.6967 | 567.0 | 394.9 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -24.20 | 108.89 | -37.58 | 127.01 | 0.6989 | 351.0 | 307.9 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -17.29 | 110.62 | -35.85 | 118.78 | 0.6403 | 265.0 | 316.4 | |
| 0.00 | 1.28 | 0.00 | 0.86 | -21.78 | 109.36 | -37.11 | 124.18 | 0.6797 | 550.0 | 530.2 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -23.26 | 108.72 | -37.75 | 125.71 | 0.6950 | -262.0 | -207.9 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -21.33 | 109.17 | -37.30 | 123.48 | 0.6791 | 690.0 | 509.2 | |
| 0.00 | 1.28 | 0.00 | 0.83 | -16.83 | 110.15 | -36.32 | 117.85 | 0.6435 | 710.0 | 581.3 | |
| 0.00 | 3.16 | 0.00 | 2.21 | -23.89 | 107.81 | -38.66 | 125.94 | 0.7079 | 767.0 | 548.7 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -23.33 | 108.00 | -38.47 | 125.36 | 0.7028 | 244.0 | 239.0 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -17.33 | 109.65 | -36.82 | 118.28 | 0.6519 | 751.0 | 515.1 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -21.11 | 108.56 | -37.91 | 122.82 | 0.6845 | 577.0 | 528.4 | |
| 0.00 | 10.93 | 0.00 | 7.68 | -23.89 | 107.43 | -39.04 | 125.72 | 0.7117 | -37.0 | 108.2 | |
| 0.00 | 1.28 | 0.00 | 0.84 | -17.27 | 109.39 | -37.08 | 118.05 | 0.6547 | 671.0 | 512.1 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -21.50 | 107.83 | -38.64 | 122.91 | 0.6944 | -388.0 | -408.1 | |
| 1.62 | 2.05 | 1.14 | 1.44 | -22.44 | 106.61 | -39.86 | 123.42 | 0.7121 | -730.1 | -692.3 | |
| 0.85 | 98.63 | 0.59 | 68.32 | -21.00 | 107.05 | -39.42 | 121.81 | 0.7000 | -931.2 | -484.6 | |
| 0.00 | 2.05 | 0.00 | 1.40 | -19.95 | 107.37 | -39.10 | 120.60 | 0.6911 | -619.0 | -631.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -23.25 | 106.24 | -40.23 | 124.24 | 0.7202 | 369.0 | 209.3 | |
| 1.20 | -26.00 | 0.83 | -26.00 | -20.65 | 106.99 | -39.48 | 121.32 | 0.6988 | -994.1 | 999999 | |
| 10.33 | -26.00 | 7.17 | -26.00 | -20.88 | 106.72 | -39.75 | 121.46 | 0.7029 | -934.0 | 999999 | |
| 4.01 | -26.00 | 2.77 | -26.00 | -20.37 | 106.79 | -39.68 | 120.84 | 0.6995 | -831.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -23.42 | 105.75 | -40.72 | 124.18 | 0.7259 | -574.0 | -527.6 | |
| 1.02 | 1.96 | 0.70 | 1.33 | -18.76 | 107.23 | -39.24 | 118.92 | 0.6868 | -607.4 | -632.6 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -22.22 | 106.14 | -40.33 | 122.88 | 0.7158 | -739.0 | -633.0 | |
| 1.54 | -26.00 | 1.07 | -26.00 | -20.56 | 106.65 | -39.82 | 121.01 | 0.7020 | -765.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -20.05 | 106.73 | -39.74 | 120.39 | 0.6986 | -638.0 | -623.6 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -21.29 | 106.25 | -40.22 | 121.75 | 0.7099 | -497.0 | -501.2 | |
| 6.49 | 29.20 | 4.71 | 21.25 | -23.94 | 105.25 | -41.22 | 124.55 | 0.7336 | 662.8 | -35.3 | |
| 0.00 | 7.43 | 0.00 | 5.32 | -22.94 | 105.59 | -40.88 | 123.48 | 0.7250 | -302.0 | -364.3 | |
| 1.37 | 2.73 | 0.96 | 1.92 | -21.39 | 106.09 | -40.38 | 121.79 | 0.7121 | -690.4 | -512.4 | |
| 0.26 | -26.00 | 0.18 | -26.00 | -20.78 | 106.25 | -40.22 | 121.09 | 0.7074 | -219.0 | 999999 | |
| 4.01 | -26.00 | 2.80 | -26.00 | -20.66 | 106.25 | -40.22 | 120.93 | 0.7067 | 344.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.21 | -21.55 | 105.78 | -40.69 | 121.84 | 0.7161 | -714.0 | -628.2 | |
| 0.00 | 2.39 | 0.00 | 1.71 | -22.55 | 105.39 | -41.08 | 122.89 | 0.7251 | -503.0 | -331.2 | |
| 1.20 | 136.03 | 0.85 | 98.29 | -22.00 | 105.50 | -40.97 | 122.26 | 0.7212 | -708.9 | -413.2 | |
| 0.00 | 1.62 | 0.00 | 1.11 | -18.76 | 106.45 | -40.02 | 118.53 | 0.6954 | -775.0 | -716.6 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -23.23 | 104.92 | -41.55 | 123.50 | 0.7332 | -625.0 | -441.8 | |
| 1.71 | 1.96 | 1.20 | 1.38 | -20.41 | 105.83 | -40.64 | 120.38 | 0.7100 | 441.0 | 465.7 | |
| 4.87 | -45.00 | 3.47 | -45.00 | -21.65 | 105.37 | -41.10 | 121.75 | 0.7209 | -943.4 | 999999 | |
| 9.31 | -45.00 | 6.67 | -45.00 | -21.94 | 105.10 | -41.37 | 121.97 | 0.7251 | -929.9 | 999999 | |
| 3.07 | 17.51 | 2.19 | 12.57 | -21.08 | 105.19 | -41.28 | 120.92 | 0.7200 | -790.2 | -560.8 | |
| 0.00 | 1.28 | 0.00 | 0.91 | -20.76 | 105.25 | -41.22 | 120.54 | 0.7178 | -344.0 | -305.1 | |
| 24.59 | -45.00 | 17.80 | -45.00 | -22.01 | 104.47 | -42.00 | 121.74 | 0.7318 | -806.0 | 999999 | |
| 1.79 | -51.00 | 1.29 | -51.00 | -21.21 | 104.63 | -41.84 | 120.81 | 0.7264 | -820.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -20.19 | 104.93 | -41.54 | 119.65 | 0.7185 | 329.0 | 171.8 | |
| 0.00 | 2.56 | 0.00 | 1.81 | -19.38 | 104.82 | -41.65 | 118.53 | 0.7160 | -672.0 | -588.2 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -18.84 | 104.94 | -41.53 | 117.89 | 0.7123 | -545.0 | -510.6 | |
| 3.59 | -51.00 | 2.60 | -51.00 | -21.25 | 104.02 | -42.45 | 120.55 | 0.7329 | -726.6 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -21.67 | 103.86 | -42.61 | 121.00 | 0.7363 | -128.0 | -161.9 | |
| 0.00 | 5.04 | 0.00 | 3.71 | -22.25 | 103.60 | -42.87 | 121.60 | 0.7416 | 132.0 | 86.4 | |
| 0.00 | 1.79 | 0.00 | 1.32 | -21.90 | 103.47 | -42.99 | 121.10 | 0.7413 | -363.0 | -260.7 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -21.51 | 103.57 | -42.90 | 120.67 | 0.7386 | -334.0 | -294.0 | |
| 4.27 | 40.13 | 3.10 | 29.32 | -20.65 | 103.75 | -42.72 | 119.66 | 0.7329 | -878.0 | -523.9 | |
| 14.86 | -63.00 | 10.87 | -63.00 | -21.04 | 103.40 | -43.07 | 119.98 | 0.7382 | -691.9 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.96 | -21.84 | 103.06 | -43.41 | 120.83 | 0.7452 | -414.0 | -264.0 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -20.40 | 103.37 | -43.10 | 119.16 | 0.7358 | -605.0 | -528.6 | |
| 0.00 | 0.68 | 0.00 | 0.52 | -20.87 | 101.02 | -45.45 | 118.71 | 0.7615 | -541.0 | -442.0 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -20.71 | 100.58 | -45.89 | 118.34 | 0.7653 | -520.0 | -448.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
