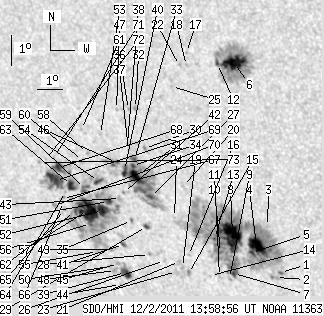

SDO HMI 2011-12-02 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185.02 | 892.24 | 126.94 | 605.44 | -21.60 | 107.78 | -37.59 | 123.71 | 0.6836 | -74.1 | 26.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 1.45 | 0.73 | 0.95 | -23.91 | 111.53 | -33.84 | 129.19 | 0.6592 | 721.7 | 741.5 | |
| 0.00 | 3.76 | 0.00 | 2.48 | -24.08 | 111.29 | -34.09 | 129.23 | 0.6629 | 423.0 | 425.4 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -22.43 | 111.46 | -33.92 | 127.19 | 0.6498 | 419.0 | 342.5 | |
| 16.48 | 338.50 | 10.84 | 224.64 | -23.04 | 110.85 | -34.52 | 127.57 | 0.6603 | 1087.0 | 368.4 | |
| 1.79 | -4.00 | 1.18 | -4.00 | -23.27 | 110.59 | -34.78 | 127.68 | 0.6646 | 679.9 | 999999 | |
| 18.70 | 105.09 | 11.74 | 66.01 | -17.25 | 111.47 | -33.91 | 119.93 | 0.6170 | 1046.9 | 386.8 | |
| 1.96 | -4.00 | 1.32 | -4.00 | -23.96 | 109.66 | -35.71 | 127.93 | 0.6786 | 670.1 | 999999 | |
| 24.84 | -4.00 | 16.47 | -4.00 | -22.70 | 110.01 | -35.36 | 126.53 | 0.6668 | 1045.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.15 | -24.13 | 109.45 | -35.92 | 127.99 | 0.6818 | 452.0 | 388.8 | |
| 1.88 | -4.00 | 1.26 | -4.00 | -23.28 | 109.36 | -36.01 | 126.85 | 0.6773 | -197.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -24.06 | 109.07 | -36.31 | 127.66 | 0.6853 | 432.0 | 414.6 | |
| 1.79 | -6.00 | 1.13 | -6.00 | -17.28 | 110.82 | -34.55 | 119.57 | 0.6249 | 512.9 | 999999 | |
| 1.02 | -4.00 | 0.69 | -4.00 | -22.83 | 109.26 | -36.11 | 126.20 | 0.6755 | 313.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -24.04 | 108.71 | -36.66 | 127.39 | 0.6886 | 333.0 | 292.8 | |
| 0.00 | 2.05 | 0.00 | 1.41 | -23.98 | 107.84 | -37.53 | 126.75 | 0.6971 | 659.0 | 565.0 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -23.39 | 108.04 | -37.34 | 126.13 | 0.6916 | 387.0 | 269.5 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -16.95 | 109.72 | -35.65 | 118.41 | 0.6362 | 619.0 | 491.4 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -17.36 | 109.63 | -35.74 | 118.94 | 0.6394 | 701.0 | 536.4 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -23.78 | 107.66 | -37.71 | 126.39 | 0.6978 | 660.0 | 484.3 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -21.17 | 108.49 | -36.89 | 123.52 | 0.6737 | 618.0 | 468.6 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -23.59 | 107.60 | -37.77 | 126.11 | 0.6972 | 519.0 | 360.2 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -17.36 | 109.36 | -36.01 | 118.78 | 0.6426 | 534.0 | 489.0 | |
| 0.00 | 2.90 | 0.00 | 2.01 | -23.92 | 107.37 | -38.01 | 126.38 | 0.7015 | -236.0 | -120.3 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -22.17 | 107.86 | -37.51 | 124.45 | 0.6861 | 382.0 | 319.4 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -18.02 | 108.90 | -36.48 | 119.44 | 0.6515 | 650.0 | 560.2 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -23.56 | 107.00 | -38.38 | 125.71 | 0.7032 | 388.0 | 288.5 | |
| 3.33 | 97.41 | 2.27 | 66.45 | -21.50 | 107.10 | -38.27 | 123.12 | 0.6904 | -683.2 | -524.2 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -23.37 | 106.44 | -38.93 | 125.13 | 0.7077 | 434.0 | 222.8 | |
| 2.05 | 3.41 | 1.42 | 2.36 | -22.47 | 106.63 | -38.75 | 124.09 | 0.7007 | -704.0 | -503.0 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -19.98 | 107.32 | -38.06 | 121.22 | 0.6798 | -682.0 | -598.6 | |
| 8.28 | -27.00 | 5.66 | -27.00 | -20.87 | 106.73 | -38.64 | 122.07 | 0.6909 | -990.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -18.72 | 107.31 | -38.07 | 119.51 | 0.6733 | -710.0 | -621.0 | |
| 2.13 | -27.00 | 1.45 | -27.00 | -20.33 | 106.81 | -38.56 | 121.40 | 0.6872 | -920.4 | 999999 | |
| 1.71 | -27.00 | 1.16 | -27.00 | -20.52 | 106.67 | -38.70 | 121.58 | 0.6897 | -840.3 | 999999 | |
| 1.20 | 1.37 | 0.83 | 0.95 | -22.28 | 106.07 | -39.30 | 123.53 | 0.7055 | -606.6 | -609.0 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -18.75 | 107.02 | -38.35 | 119.40 | 0.6768 | -755.0 | -631.5 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -20.01 | 106.66 | -38.71 | 120.90 | 0.6872 | -725.0 | -661.9 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -19.82 | 106.68 | -38.69 | 120.66 | 0.6860 | -656.0 | -584.6 | |
| 7.26 | 11.18 | 5.19 | 7.99 | -23.97 | 105.22 | -40.16 | 125.17 | 0.7232 | 655.9 | 411.9 | |
| 3.93 | -27.00 | 2.69 | -27.00 | -20.68 | 106.30 | -39.07 | 121.58 | 0.6946 | 427.3 | 999999 | |
| 1.79 | 5.89 | 1.27 | 4.16 | -23.06 | 105.47 | -39.91 | 124.17 | 0.7158 | -555.0 | -258.3 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -21.39 | 106.04 | -39.34 | 122.35 | 0.7010 | -843.0 | -781.1 | |
| 0.00 | 2.90 | 0.00 | 2.02 | -21.58 | 105.85 | -39.52 | 122.50 | 0.7040 | -686.0 | -579.4 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -24.36 | 104.85 | -40.52 | 125.45 | 0.7289 | 441.0 | 379.0 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -23.68 | 105.03 | -40.34 | 124.70 | 0.7235 | -54.0 | 37.8 | |
| 1.20 | 15.79 | 0.82 | 10.90 | -20.43 | 106.05 | -39.32 | 121.11 | 0.6960 | 536.2 | -61.1 | |
| 0.00 | 1.20 | 0.00 | 0.81 | -18.76 | 106.54 | -38.84 | 119.14 | 0.6822 | -899.0 | -716.2 | |
| 0.00 | 2.73 | 0.00 | 1.96 | -23.91 | 104.81 | -40.56 | 124.87 | 0.7269 | -119.0 | -161.1 | |
| 0.00 | 2.31 | 0.00 | 1.64 | -23.23 | 104.98 | -40.39 | 124.11 | 0.7216 | -141.0 | -359.6 | |
| 0.00 | 2.31 | 0.00 | 1.66 | -23.78 | 104.61 | -40.77 | 124.60 | 0.7282 | -214.0 | -145.8 | |
| 3.84 | 163.32 | 2.69 | 116.28 | -21.68 | 105.32 | -40.05 | 122.34 | 0.7101 | -971.8 | -360.0 | |
| 9.65 | -51.00 | 6.81 | -51.00 | -21.97 | 104.97 | -40.40 | 122.52 | 0.7152 | -947.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -19.55 | 105.66 | -39.71 | 119.74 | 0.6958 | -427.0 | -368.6 | |
| 3.59 | 24.16 | 2.51 | 16.98 | -21.04 | 105.11 | -40.26 | 121.40 | 0.7090 | -867.2 | -501.4 | |
| 0.00 | 1.37 | 0.00 | 0.98 | -23.30 | 104.28 | -41.10 | 123.82 | 0.7290 | -290.0 | -241.2 | |
| 1.71 | -51.00 | 1.22 | -51.00 | -22.39 | 104.31 | -41.06 | 122.70 | 0.7241 | -563.7 | 999999 | |
| 28.60 | -51.00 | 20.39 | -51.00 | -21.98 | 104.33 | -41.04 | 122.19 | 0.7218 | -833.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -20.16 | 104.94 | -40.43 | 120.16 | 0.7065 | 425.0 | 258.5 | |
| 4.01 | -54.00 | 2.84 | -54.00 | -21.27 | 104.45 | -40.92 | 121.35 | 0.7171 | -835.6 | 999999 | |
| 0.00 | 2.90 | 0.00 | 2.04 | -20.38 | 104.66 | -40.71 | 120.31 | 0.7106 | -372.0 | -301.9 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -19.40 | 104.93 | -40.45 | 119.16 | 0.7031 | -590.0 | -537.2 | |
| 1.11 | -51.00 | 0.80 | -51.00 | -22.01 | 103.77 | -41.61 | 121.94 | 0.7278 | -285.9 | 999999 | |
| 5.98 | 61.81 | 4.26 | 44.32 | -21.18 | 103.93 | -41.44 | 120.97 | 0.7221 | -915.3 | -492.0 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -21.38 | 103.61 | -41.76 | 121.05 | 0.7263 | -386.0 | -322.1 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -21.95 | 103.36 | -42.01 | 121.66 | 0.7316 | -313.0 | -226.5 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -21.70 | 103.41 | -41.96 | 121.36 | 0.7299 | -181.0 | -188.0 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -21.60 | 103.40 | -41.97 | 121.23 | 0.7295 | -371.0 | -300.5 | |
| 6.15 | -63.00 | 4.39 | -63.00 | -20.61 | 103.57 | -41.80 | 120.06 | 0.7231 | -877.2 | 999999 | |
| 17.93 | -63.00 | 12.91 | -63.00 | -21.03 | 103.30 | -42.07 | 120.46 | 0.7279 | -664.9 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.80 | -21.83 | 102.97 | -42.40 | 121.31 | 0.7350 | -331.0 | -281.0 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -20.30 | 103.47 | -41.90 | 119.60 | 0.7228 | -589.0 | -478.7 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -20.36 | 103.10 | -42.27 | 119.51 | 0.7269 | -518.0 | -420.0 | |
| 0.00 | 1.37 | 0.00 | 0.99 | -20.46 | 102.81 | -42.56 | 119.50 | 0.7304 | -568.0 | -420.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
