SDO HMI 2011-12-02 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.50 | 248.05 | 27.17 | 147.46 | 19.03 | 172.79 | 28.51 | 305.12 | 0.5533 | -164.3 | -133.8 | |
|
previous
or next observation for the same group /

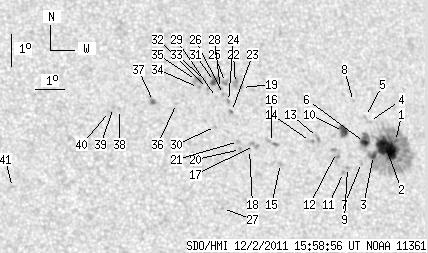

back to the solar disc SDO HMI 2011-12-02 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.94 | 159.79 | 0.57 | 96.17 | 18.93 | 174.80 | 30.53 | 303.16 | 0.5762 | -366.0 | -352.6 | |
| 25.69 | -1.00 | 15.47 | -1.00 | 18.71 | 174.43 | 30.16 | 303.11 | 0.5703 | -1128.2 | 999999 | |
| 2.65 | -1.00 | 1.58 | -1.00 | 18.50 | 173.92 | 29.65 | 303.18 | 0.5627 | -1030.5 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.18 | 19.56 | 173.98 | 29.71 | 304.77 | 0.5708 | -637.0 | -442.8 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 19.72 | 173.87 | 29.60 | 305.10 | 0.5706 | -496.0 | -335.4 | |
| 3.33 | -1.00 | 1.99 | -1.00 | 18.91 | 173.67 | 29.40 | 304.01 | 0.5625 | -1151.9 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.17 | 18.29 | 173.45 | 29.18 | 303.22 | 0.5555 | -522.0 | -453.3 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 20.19 | 173.53 | 29.26 | 306.10 | 0.5700 | -473.0 | -454.8 | |
| 0.00 | 1.88 | 0.00 | 1.11 | 18.13 | 172.92 | 28.65 | 303.41 | 0.5480 | -920.0 | -734.4 | |
| 7.08 | 7.94 | 4.22 | 4.73 | 19.25 | 172.99 | 28.72 | 305.12 | 0.5568 | -887.2 | -676.8 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 17.98 | 172.75 | 28.48 | 303.30 | 0.5448 | -927.0 | -727.7 | |
| 0.00 | 5.21 | 0.00 | 3.08 | 18.60 | 172.62 | 28.35 | 304.41 | 0.5476 | -479.0 | -803.2 | |
| 0.00 | 2.90 | 0.00 | 1.71 | 19.07 | 172.03 | 27.76 | 305.67 | 0.5440 | -708.0 | -638.1 | |
| 0.00 | 2.65 | 0.00 | 1.55 | 18.95 | 171.76 | 27.49 | 305.72 | 0.5399 | -576.0 | -545.7 | |
| 0.00 | 2.56 | 0.00 | 1.48 | 18.27 | 170.59 | 26.32 | 305.70 | 0.5206 | 605.0 | 402.2 | |
| 0.00 | 4.18 | 0.00 | 2.43 | 18.92 | 170.39 | 26.12 | 306.96 | 0.5233 | 608.0 | 487.8 | |
| 0.00 | 4.61 | 0.00 | 2.66 | 18.83 | 169.78 | 25.51 | 307.41 | 0.5153 | 839.0 | 638.6 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 18.71 | 169.59 | 25.32 | 307.41 | 0.5120 | 788.0 | 651.5 | |
| 0.00 | 1.37 | 0.00 | 0.80 | 20.65 | 169.64 | 25.37 | 310.44 | 0.5290 | 784.0 | 658.6 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 18.71 | 169.28 | 25.01 | 307.72 | 0.5083 | 876.0 | 652.0 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 18.96 | 169.25 | 24.98 | 308.16 | 0.5100 | 780.0 | 561.3 | |
| 0.00 | 3.84 | 0.00 | 2.24 | 20.77 | 169.46 | 25.18 | 310.83 | 0.5280 | 887.0 | 714.2 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 19.90 | 169.16 | 24.89 | 309.77 | 0.5170 | 783.0 | 720.0 | |
| 0.00 | 1.96 | 0.00 | 1.14 | 20.21 | 169.11 | 24.84 | 310.32 | 0.5191 | 803.0 | 675.4 | |
| 0.00 | 2.65 | 0.00 | 1.54 | 20.81 | 169.11 | 24.84 | 311.24 | 0.5244 | 825.0 | 698.0 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 20.43 | 168.98 | 24.71 | 310.80 | 0.5195 | 779.0 | 657.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 16.89 | 168.40 | 24.13 | 305.53 | 0.4826 | 645.0 | 453.2 | |
| 0.00 | 1.96 | 0.00 | 1.14 | 20.62 | 168.91 | 24.63 | 311.18 | 0.5204 | 870.0 | 749.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 20.34 | 168.72 | 24.45 | 310.94 | 0.5158 | 772.0 | 604.5 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 19.43 | 168.53 | 24.26 | 309.69 | 0.5057 | 738.0 | 455.8 | |
| 3.76 | 6.57 | 2.18 | 3.81 | 20.84 | 168.74 | 24.46 | 311.70 | 0.5205 | 859.4 | 613.9 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 20.62 | 168.45 | 24.18 | 311.67 | 0.5153 | 945.0 | 768.0 | |
| 0.00 | 2.82 | 0.00 | 1.63 | 20.87 | 168.39 | 24.12 | 312.13 | 0.5170 | 732.0 | 632.9 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 20.65 | 168.15 | 23.88 | 312.06 | 0.5122 | 886.0 | 785.9 | |
| 0.00 | 4.95 | 0.00 | 2.85 | 20.88 | 168.12 | 23.85 | 312.44 | 0.5139 | 735.0 | 698.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 20.16 | 167.31 | 23.04 | 312.23 | 0.4982 | 736.0 | 551.7 | |
| 2.05 | 3.67 | 1.16 | 2.08 | 20.22 | 166.54 | 22.26 | 313.25 | 0.4902 | 881.7 | 754.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 19.98 | 165.35 | 21.08 | 314.35 | 0.4746 | 646.0 | 501.8 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 20.04 | 165.15 | 20.88 | 314.70 | 0.4731 | 752.0 | 540.5 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 19.91 | 165.00 | 20.73 | 314.70 | 0.4702 | 857.0 | 651.4 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 17.56 | 161.52 | 17.25 | 315.73 | 0.4069 | -553.0 | -560.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
