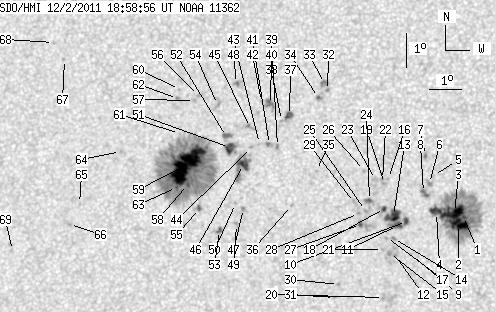

SDO HMI 2011-12-02 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.23 | 642.82 | 70.53 | 331.08 | 8.01 | 128.89 | -13.72 | 60.62 | 0.2687 | 17.8 | 67.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.73 | 159.69 | 1.38 | 80.43 | 6.95 | 134.32 | -8.29 | 52.83 | 0.1805 | -1154.6 | -478.1 | |
| 12.38 | -1.00 | 6.23 | -1.00 | 6.71 | 134.18 | -8.44 | 54.37 | 0.1801 | -1460.4 | 999999 | |
| 14.17 | -1.00 | 7.14 | -1.00 | 7.07 | 134.05 | -8.56 | 53.19 | 0.1854 | -1297.8 | 999999 | |
| 8.28 | -1.00 | 4.18 | -1.00 | 7.07 | 133.51 | -9.11 | 54.84 | 0.1930 | -982.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 8.17 | 133.39 | -9.22 | 50.73 | 0.2058 | -541.0 | -413.1 | |
| 0.00 | 3.76 | 0.00 | 1.90 | 7.93 | 133.28 | -9.34 | 51.99 | 0.2048 | -986.0 | -695.7 | |
| 0.00 | 2.22 | 0.00 | 1.13 | 8.76 | 133.14 | -9.48 | 49.30 | 0.2156 | 1068.0 | 879.2 | |
| 0.00 | 4.95 | 0.00 | 2.50 | 7.66 | 133.10 | -9.51 | 53.56 | 0.2045 | -938.0 | -830.9 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 5.82 | 132.75 | -9.87 | 62.44 | 0.1932 | 490.0 | 383.1 | |
| 3.16 | 36.36 | 1.60 | 18.42 | 6.80 | 132.61 | -10.01 | 58.44 | 0.2034 | -1076.5 | -734.5 | |
| 2.99 | -10.00 | 1.51 | -10.00 | 6.68 | 132.34 | -10.27 | 59.61 | 0.2063 | -1163.8 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.91 | 5.79 | 132.30 | -10.32 | 63.60 | 0.1999 | -931.0 | -759.2 | |
| 11.52 | -10.00 | 5.84 | -10.00 | 6.98 | 132.21 | -10.40 | 58.68 | 0.2108 | -1055.1 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.91 | 6.29 | 132.23 | -10.39 | 61.52 | 0.2048 | -1179.0 | -942.4 | |
| 0.00 | 2.13 | 0.00 | 1.08 | 5.85 | 132.11 | -10.50 | 63.73 | 0.2031 | -1053.0 | -959.3 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.08 | 132.03 | -10.58 | 54.82 | 0.2234 | -725.0 | -546.7 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 6.32 | 132.01 | -10.60 | 61.87 | 0.2083 | -895.0 | -651.5 | |
| 2.13 | -10.00 | 1.08 | -10.00 | 7.18 | 131.93 | -10.68 | 58.50 | 0.2166 | -942.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 7.93 | 131.92 | -10.70 | 55.67 | 0.2237 | -965.0 | -799.7 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 4.54 | 131.96 | -10.66 | 70.08 | 0.1970 | -747.0 | -584.6 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 5.97 | 131.90 | -10.71 | 63.66 | 0.2073 | -854.0 | -589.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 8.05 | 131.85 | -10.76 | 55.38 | 0.2257 | -794.0 | -655.9 | |
| 0.00 | 2.73 | 0.00 | 1.39 | 8.04 | 131.64 | -10.97 | 55.90 | 0.2287 | -698.0 | -593.4 | |
| 0.00 | 4.01 | 0.00 | 2.04 | 7.42 | 131.47 | -11.14 | 58.63 | 0.2254 | -848.0 | -773.5 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 7.12 | 131.36 | -11.25 | 60.04 | 0.2246 | -945.0 | -783.7 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 8.31 | 131.30 | -11.32 | 55.74 | 0.2360 | -738.0 | -545.2 | |
| 1.45 | 8.11 | 0.74 | 4.12 | 6.71 | 131.22 | -11.40 | 61.98 | 0.2233 | -831.3 | -757.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 7.03 | 131.15 | -11.46 | 60.83 | 0.2269 | -848.0 | -709.6 | |
| 0.00 | 2.39 | 0.00 | 1.22 | 7.36 | 131.02 | -11.59 | 59.85 | 0.2316 | -750.0 | -618.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 4.93 | 130.59 | -12.02 | 70.50 | 0.2212 | -997.0 | -802.9 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 4.54 | 130.47 | -12.14 | 72.33 | 0.2210 | -768.0 | -590.0 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 10.70 | 130.08 | -12.53 | 50.87 | 0.2762 | -1151.0 | -854.5 | |
| 0.00 | 5.46 | 0.00 | 2.82 | 10.91 | 129.98 | -12.64 | 50.49 | 0.2797 | -985.0 | -850.7 | |
| 0.85 | 2.13 | 0.44 | 1.10 | 10.49 | 129.81 | -12.80 | 52.06 | 0.2776 | -953.7 | -936.3 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 8.31 | 129.83 | -12.78 | 58.86 | 0.2569 | -843.0 | -693.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.26 | 129.10 | -13.51 | 63.77 | 0.2596 | -910.0 | -722.1 | |
| 4.69 | 5.04 | 2.42 | 2.60 | 9.95 | 128.94 | -13.67 | 55.40 | 0.2842 | -928.7 | -864.2 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 9.80 | 128.70 | -13.91 | 56.30 | 0.2861 | -757.0 | -578.5 | |
| 0.00 | 2.13 | 0.00 | 1.10 | 9.02 | 128.61 | -14.01 | 58.82 | 0.2807 | 1069.0 | 778.9 | |
| 0.00 | 7.68 | 0.00 | 3.98 | 10.28 | 128.34 | -14.28 | 55.58 | 0.2955 | -920.0 | -708.4 | |
| 0.00 | 3.16 | 0.00 | 1.63 | 9.08 | 128.36 | -14.25 | 59.07 | 0.2847 | 882.0 | 871.4 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 10.37 | 128.05 | -14.56 | 55.83 | 0.3002 | -247.0 | -214.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 9.11 | 128.05 | -14.57 | 59.51 | 0.2895 | 732.0 | 592.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 8.99 | 127.81 | -14.81 | 60.28 | 0.2920 | 851.0 | 699.5 | |
| 0.00 | 4.01 | 0.00 | 2.08 | 9.59 | 127.75 | -14.86 | 58.59 | 0.2977 | 948.0 | 628.4 | |
| 7.25 | 21.59 | 3.75 | 11.18 | 8.48 | 127.58 | -15.03 | 62.18 | 0.2914 | 1155.2 | 875.8 | |
| 0.00 | 2.13 | 0.00 | 1.10 | 7.17 | 127.63 | -14.99 | 66.29 | 0.2815 | -883.0 | -694.6 | |
| 0.00 | 2.56 | 0.00 | 1.34 | 10.90 | 127.25 | -15.36 | 55.75 | 0.3162 | 1089.0 | 882.3 | |
| 0.00 | 2.65 | 0.00 | 1.37 | 6.70 | 127.43 | -15.19 | 68.13 | 0.2816 | -790.0 | -683.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 7.32 | 127.38 | -15.24 | 66.15 | 0.2863 | -591.0 | -499.5 | |
| 7.60 | 11.86 | 3.94 | 6.16 | 8.99 | 127.12 | -15.49 | 61.35 | 0.3019 | 1125.4 | 731.9 | |
| 0.00 | 6.32 | 0.00 | 3.28 | 9.31 | 127.02 | -15.60 | 60.55 | 0.3061 | 1195.0 | 880.1 | |
| 2.22 | 3.41 | 1.15 | 1.77 | 6.52 | 126.91 | -15.70 | 69.35 | 0.2887 | -855.5 | -836.2 | |
| 0.00 | 5.21 | 0.00 | 2.72 | 10.27 | 126.69 | -15.92 | 58.37 | 0.3185 | 1067.0 | 703.8 | |
| 0.68 | 3.50 | 0.35 | 1.82 | 7.17 | 126.27 | -16.35 | 68.02 | 0.3025 | 982.1 | 711.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 10.54 | 126.08 | -16.53 | 58.57 | 0.3293 | 967.0 | 738.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 10.39 | 125.96 | -16.65 | 59.15 | 0.3298 | 933.0 | 766.0 | |
| 2.13 | 286.01 | 1.11 | 149.29 | 7.88 | 125.87 | -16.75 | 66.34 | 0.3130 | 995.6 | 458.0 | |
| 51.81 | -58.00 | 27.05 | -58.00 | 8.48 | 125.81 | -16.80 | 64.67 | 0.3178 | 1414.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 10.72 | 125.47 | -17.14 | 58.99 | 0.3394 | 787.0 | 628.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 9.40 | 125.55 | -17.07 | 62.40 | 0.3282 | 112.0 | 85.6 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 10.45 | 125.43 | -17.19 | 59.76 | 0.3379 | 922.0 | 818.2 | |
| 1.19 | -58.00 | 0.62 | -58.00 | 7.79 | 125.53 | -17.09 | 67.01 | 0.3176 | 1010.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 8.86 | 123.72 | -18.90 | 66.06 | 0.3517 | 780.0 | 611.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 7.30 | 122.50 | -20.12 | 71.33 | 0.3617 | 667.0 | 483.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 6.68 | 122.21 | -20.41 | 73.22 | 0.3633 | 977.0 | 749.8 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 11.60 | 121.75 | -20.87 | 61.49 | 0.3988 | 640.0 | 552.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 12.11 | 121.35 | -21.26 | 60.78 | 0.4080 | 676.0 | 508.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 5.90 | 120.42 | -22.19 | 76.38 | 0.3883 | 471.0 | 515.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
