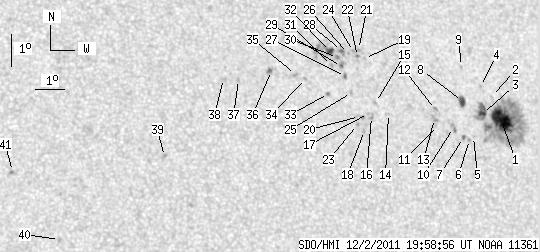

SDO HMI 2011-12-02 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.67 | 232.95 | 27.86 | 141.36 | 19.07 | 172.61 | 30.55 | 303.58 | 0.5779 | -197.6 | -107.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.40 | 132.04 | 16.89 | 81.49 | 18.69 | 174.48 | 32.42 | 301.43 | 0.5974 | -1085.4 | -290.2 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 19.44 | 174.28 | 32.21 | 302.70 | 0.5997 | -259.0 | -163.6 | |
| 2.82 | 14.60 | 1.73 | 8.94 | 18.91 | 173.83 | 31.77 | 302.23 | 0.5910 | -1092.8 | -709.2 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 19.75 | 173.94 | 31.88 | 303.41 | 0.5977 | -699.0 | -566.6 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 18.20 | 173.35 | 31.29 | 301.48 | 0.5808 | -431.0 | -483.6 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 18.11 | 173.19 | 31.13 | 301.45 | 0.5782 | -738.0 | -644.3 | |
| 1.37 | 1.54 | 0.83 | 0.93 | 18.17 | 172.98 | 30.92 | 301.70 | 0.5761 | -767.8 | -778.0 | |
| 5.38 | 5.80 | 3.28 | 3.54 | 19.29 | 173.17 | 31.11 | 303.28 | 0.5856 | -865.6 | -705.2 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 20.38 | 173.38 | 31.32 | 304.77 | 0.5954 | -649.0 | -502.5 | |
| 0.00 | 3.76 | 0.00 | 2.27 | 18.48 | 172.68 | 30.62 | 302.41 | 0.5744 | -910.0 | -814.8 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 18.55 | 172.11 | 30.05 | 302.95 | 0.5680 | -616.0 | -618.4 | |
| 0.00 | 1.88 | 0.00 | 1.13 | 19.05 | 172.14 | 30.08 | 303.70 | 0.5717 | -500.0 | -533.3 | |
| 0.00 | 3.24 | 0.00 | 1.95 | 18.77 | 172.05 | 29.99 | 303.34 | 0.5687 | -673.0 | -685.9 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 18.93 | 170.43 | 28.37 | 304.93 | 0.5504 | 781.0 | 529.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 19.28 | 170.04 | 27.97 | 305.82 | 0.5482 | 614.0 | 454.2 | |
| 0.00 | 2.39 | 0.00 | 1.41 | 18.84 | 169.81 | 27.75 | 305.33 | 0.5423 | 719.0 | 704.8 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 18.93 | 169.73 | 27.66 | 305.56 | 0.5420 | 769.0 | 599.2 | |
| 0.00 | 1.71 | 0.00 | 1.00 | 18.41 | 169.49 | 27.43 | 304.92 | 0.5352 | 774.0 | 626.5 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 20.65 | 169.91 | 27.85 | 308.06 | 0.5574 | 519.0 | 418.7 | |
| 0.00 | 3.41 | 0.00 | 2.00 | 18.84 | 169.39 | 27.33 | 305.71 | 0.5373 | 585.0 | 662.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 20.94 | 169.75 | 27.69 | 308.64 | 0.5578 | 581.0 | 501.6 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 20.72 | 169.67 | 27.61 | 308.38 | 0.5552 | 757.0 | 676.9 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 18.59 | 169.28 | 27.22 | 305.41 | 0.5340 | 934.0 | 739.9 | |
| 0.00 | 1.79 | 0.00 | 1.07 | 20.88 | 169.56 | 27.50 | 308.72 | 0.5552 | 710.0 | 569.3 | |
| 0.00 | 1.88 | 0.00 | 1.10 | 19.59 | 169.24 | 27.18 | 307.03 | 0.5413 | 679.0 | 459.7 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 20.81 | 169.37 | 27.31 | 308.80 | 0.5525 | 758.0 | 611.8 | |
| 1.45 | 2.22 | 0.85 | 1.31 | 20.09 | 169.13 | 27.07 | 307.93 | 0.5439 | 741.5 | 562.4 | |
| 1.28 | 4.27 | 0.76 | 2.53 | 20.91 | 169.14 | 27.08 | 309.17 | 0.5507 | 740.9 | 554.9 | |
| 1.28 | 3.24 | 0.76 | 1.92 | 20.41 | 169.04 | 26.98 | 308.49 | 0.5455 | 788.3 | 626.2 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 20.69 | 168.96 | 26.90 | 309.01 | 0.5468 | 954.0 | 860.1 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 20.44 | 168.70 | 26.64 | 308.87 | 0.5417 | 672.0 | 642.6 | |
| 3.84 | 17.33 | 2.27 | 10.20 | 20.88 | 168.74 | 26.68 | 309.50 | 0.5459 | 817.5 | 691.6 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 19.56 | 168.43 | 26.37 | 307.76 | 0.5315 | 848.0 | 666.4 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 20.04 | 167.71 | 25.65 | 309.22 | 0.5270 | 708.0 | 418.8 | |
| 0.00 | 1.71 | 0.00 | 0.99 | 20.16 | 167.38 | 25.32 | 309.76 | 0.5244 | 825.0 | 656.1 | |
| 0.85 | 2.48 | 0.49 | 1.43 | 20.29 | 166.57 | 24.51 | 310.82 | 0.5162 | 860.3 | 889.6 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 20.02 | 165.39 | 23.33 | 311.69 | 0.5003 | 852.0 | 685.2 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 20.05 | 164.88 | 22.82 | 312.33 | 0.4949 | 670.0 | 528.0 | |
| 0.00 | 2.30 | 0.00 | 1.27 | 17.63 | 162.57 | 20.51 | 311.14 | 0.4452 | -671.0 | -580.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 15.10 | 158.90 | 16.84 | 311.66 | 0.3760 | -954.0 | -717.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.19 | 157.57 | 15.51 | 318.02 | 0.3836 | -868.0 | -787.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
