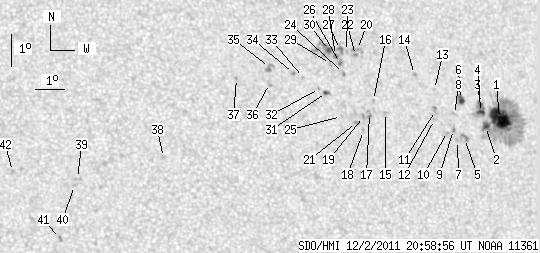

SDO HMI 2011-12-02 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.30 | 245.92 | 25.39 | 149.61 | 19.03 | 172.24 | 30.73 | 303.46 | 0.5797 | -282.4 | -113.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.64 | 135.55 | 14.67 | 84.17 | 18.71 | 174.49 | 32.98 | 301.09 | 0.6043 | -1087.1 | -288.0 | |
| 3.58 | -1.00 | 2.21 | -1.00 | 18.47 | 173.92 | 32.41 | 301.11 | 0.5960 | -990.0 | 999999 | |
| 2.73 | 13.66 | 1.68 | 8.42 | 18.90 | 173.86 | 32.35 | 301.81 | 0.5980 | -1091.4 | -703.0 | |
| 0.85 | -3.00 | 0.53 | -3.00 | 19.18 | 173.89 | 32.38 | 302.21 | 0.6000 | -791.1 | 999999 | |
| 0.00 | 4.78 | 0.00 | 2.91 | 18.10 | 173.07 | 31.56 | 301.14 | 0.5835 | -604.0 | -708.7 | |
| 4.35 | 6.32 | 2.67 | 3.88 | 19.31 | 173.17 | 31.67 | 302.91 | 0.5924 | -830.2 | -597.8 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 18.04 | 172.80 | 31.29 | 301.23 | 0.5798 | -879.0 | -765.8 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 18.85 | 172.85 | 31.35 | 302.44 | 0.5856 | -625.0 | -565.4 | |
| 0.00 | 2.05 | 0.00 | 1.24 | 18.38 | 172.72 | 31.22 | 301.82 | 0.5810 | -964.0 | -854.7 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 18.32 | 172.49 | 30.98 | 301.90 | 0.5779 | -723.0 | -702.7 | |
| 0.00 | 3.16 | 0.00 | 1.91 | 18.98 | 172.19 | 30.68 | 303.14 | 0.5785 | -815.0 | -656.3 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 18.70 | 172.09 | 30.59 | 302.78 | 0.5755 | -980.0 | -795.0 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 19.63 | 172.29 | 30.78 | 304.06 | 0.5840 | -601.0 | -510.0 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 20.10 | 171.66 | 30.15 | 305.27 | 0.5799 | -695.0 | -601.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 18.92 | 170.38 | 28.87 | 304.50 | 0.5564 | 794.0 | 464.3 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 19.30 | 170.02 | 28.51 | 305.40 | 0.5548 | 656.0 | 520.9 | |
| 0.00 | 2.65 | 0.00 | 1.57 | 18.90 | 169.80 | 28.29 | 304.95 | 0.5493 | 656.0 | 669.7 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 18.37 | 169.49 | 27.98 | 304.37 | 0.5417 | 759.0 | 584.1 | |
| 0.00 | 1.79 | 0.00 | 1.06 | 18.80 | 169.57 | 28.06 | 305.00 | 0.5458 | 905.0 | 679.6 | |
| 0.00 | 5.04 | 0.00 | 3.01 | 20.90 | 169.76 | 28.26 | 308.07 | 0.5640 | 577.0 | 502.4 | |
| 0.00 | 2.13 | 0.00 | 1.25 | 18.62 | 169.29 | 27.78 | 304.95 | 0.5411 | 941.0 | 697.5 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 20.71 | 169.65 | 28.15 | 307.89 | 0.5613 | 741.0 | 678.8 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 20.84 | 169.36 | 27.85 | 308.35 | 0.5589 | 640.0 | 533.6 | |
| 0.00 | 1.96 | 0.00 | 1.16 | 20.15 | 169.11 | 27.61 | 307.52 | 0.5506 | 867.0 | 662.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 18.81 | 168.79 | 27.29 | 305.70 | 0.5365 | -539.0 | -393.7 | |
| 1.37 | 2.48 | 0.81 | 1.47 | 20.46 | 169.07 | 27.56 | 308.04 | 0.5526 | 790.7 | 652.3 | |
| 0.00 | 4.18 | 0.00 | 2.49 | 20.90 | 169.15 | 27.65 | 308.63 | 0.5571 | 757.0 | 642.6 | |
| 0.00 | 2.73 | 0.00 | 1.62 | 20.72 | 168.94 | 27.43 | 308.55 | 0.5531 | 908.0 | 808.4 | |
| 0.00 | 1.79 | 0.00 | 1.06 | 20.47 | 168.71 | 27.20 | 308.38 | 0.5485 | 788.0 | 599.5 | |
| 2.73 | 14.51 | 1.62 | 8.59 | 20.87 | 168.76 | 27.25 | 308.96 | 0.5523 | 847.8 | 693.7 | |
| 2.05 | 2.56 | 1.20 | 1.50 | 19.56 | 168.40 | 26.89 | 307.26 | 0.5377 | 583.2 | 566.7 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 19.68 | 168.18 | 26.67 | 307.67 | 0.5361 | 655.0 | 474.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 20.03 | 167.68 | 26.17 | 308.70 | 0.5331 | 776.0 | 537.4 | |
| 0.00 | 2.05 | 0.00 | 1.19 | 20.16 | 167.35 | 25.84 | 309.22 | 0.5303 | 796.0 | 672.6 | |
| 0.00 | 5.38 | 0.00 | 3.12 | 20.35 | 166.55 | 25.04 | 310.35 | 0.5228 | 929.0 | 730.9 | |
| 0.00 | 2.99 | 0.00 | 1.73 | 19.85 | 166.46 | 24.95 | 309.65 | 0.5175 | 399.0 | 402.9 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 20.01 | 165.35 | 23.84 | 311.11 | 0.5061 | 841.0 | 662.4 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 17.56 | 162.53 | 21.03 | 310.35 | 0.4508 | -745.0 | -567.4 | |
| 0.00 | 2.56 | 0.00 | 1.39 | 16.93 | 159.64 | 18.13 | 313.22 | 0.4103 | -675.0 | -599.9 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 16.71 | 159.52 | 18.01 | 313.00 | 0.4067 | -782.0 | -639.7 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 15.09 | 158.92 | 17.41 | 310.73 | 0.3830 | -886.0 | -682.3 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 17.15 | 157.56 | 16.05 | 317.01 | 0.3891 | -752.0 | -656.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
