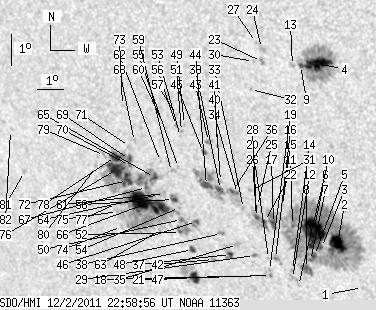

SDO HMI 2011-12-02 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 217.67 | 934.07 | 140.11 | 596.72 | -21.64 | 107.61 | -32.79 | 127.03 | 0.6323 | -58.7 | 71.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.64 | -24.46 | 111.54 | -28.86 | 133.97 | 0.6127 | 592.0 | 481.7 | |
| 15.71 | 386.29 | 9.77 | 241.59 | -23.04 | 110.97 | -29.43 | 131.57 | 0.6068 | 1240.2 | 421.2 | |
| 1.45 | -2.00 | 0.91 | -2.00 | -23.17 | 110.34 | -30.06 | 131.20 | 0.6144 | 642.4 | 999999 | |
| 20.32 | 94.16 | 12.10 | 56.09 | -17.33 | 111.42 | -28.98 | 123.68 | 0.5580 | 1135.2 | 448.7 | |
| 2.13 | -2.00 | 1.34 | -2.00 | -23.43 | 110.02 | -30.39 | 131.27 | 0.6198 | 653.1 | 999999 | |
| 40.12 | -2.00 | 25.08 | -2.00 | -22.65 | 110.17 | -30.23 | 130.36 | 0.6121 | 1080.6 | 999999 | |
| 0.94 | -2.00 | 0.59 | -2.00 | -23.59 | 109.82 | -30.58 | 131.32 | 0.6231 | 700.3 | 999999 | |
| 4.44 | -2.00 | 2.82 | -2.00 | -23.85 | 109.60 | -30.80 | 131.48 | 0.6274 | 753.7 | 999999 | |
| 1.79 | -4.00 | 1.07 | -4.00 | -17.40 | 110.81 | -29.60 | 123.27 | 0.5659 | 540.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -24.41 | 109.15 | -31.25 | 131.83 | 0.6363 | 495.0 | 408.9 | |
| 0.94 | -2.00 | 0.59 | -2.00 | -22.47 | 109.44 | -30.97 | 129.49 | 0.6184 | 659.1 | 999999 | |
| 0.00 | 4.27 | 0.00 | 2.73 | -24.18 | 108.99 | -31.42 | 131.40 | 0.6362 | 611.0 | 457.5 | |
| 0.00 | 2.13 | 0.00 | 1.28 | -17.40 | 110.52 | -29.88 | 123.04 | 0.5693 | 639.0 | 457.5 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -23.92 | 109.06 | -31.35 | 131.12 | 0.6335 | 646.0 | 460.9 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -21.83 | 109.22 | -31.18 | 128.44 | 0.6159 | 732.0 | 569.8 | |
| 1.02 | 5.21 | 0.66 | 3.33 | -23.54 | 108.52 | -31.89 | 130.17 | 0.6361 | 507.0 | 465.7 | |
| 4.18 | -2.00 | 2.65 | -2.00 | -22.41 | 108.74 | -31.66 | 128.84 | 0.6254 | 654.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -24.09 | 108.17 | -32.23 | 130.62 | 0.6438 | 509.0 | 404.6 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -23.93 | 108.18 | -32.22 | 130.42 | 0.6425 | 655.0 | 471.8 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -23.54 | 108.25 | -32.15 | 129.96 | 0.6389 | -123.0 | -91.8 | |
| 0.00 | 3.76 | 0.00 | 2.43 | -24.09 | 108.02 | -32.39 | 130.50 | 0.6454 | -174.0 | 16.7 | |
| 1.62 | -2.00 | 1.03 | -2.00 | -22.35 | 108.42 | -31.99 | 128.50 | 0.6284 | 595.4 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.82 | -17.29 | 109.43 | -30.98 | 122.01 | 0.5818 | 785.0 | 667.3 | |
| 0.00 | 4.27 | 0.00 | 2.59 | -16.88 | 109.50 | -30.90 | 121.44 | 0.5782 | 761.0 | 584.1 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -21.87 | 108.27 | -32.13 | 127.74 | 0.6265 | 351.0 | 252.6 | |
| 1.79 | -2.00 | 1.14 | -2.00 | -22.22 | 108.15 | -32.26 | 128.12 | 0.6304 | 298.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -16.70 | 109.36 | -31.05 | 121.05 | 0.5788 | 622.0 | 468.1 | |
| 0.51 | -2.00 | 0.33 | -2.00 | -22.15 | 108.16 | -32.24 | 128.05 | 0.6297 | -31.8 | 999999 | |
| 1.28 | 2.73 | 0.83 | 1.76 | -23.45 | 107.74 | -32.66 | 129.44 | 0.6435 | 432.1 | 469.5 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -17.29 | 109.14 | -31.27 | 121.79 | 0.5853 | 625.0 | 463.7 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -21.35 | 108.14 | -32.26 | 126.94 | 0.6243 | -618.0 | -468.4 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -18.16 | 108.86 | -31.55 | 122.90 | 0.5943 | 693.0 | 537.2 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -21.93 | 107.73 | -32.67 | 127.41 | 0.6328 | -91.0 | -38.3 | |
| 0.77 | 58.73 | 0.49 | 37.67 | -21.45 | 107.62 | -32.78 | 126.68 | 0.6306 | -899.2 | -472.3 | |
| 0.00 | 2.99 | 0.00 | 1.94 | -23.10 | 107.18 | -33.22 | 128.56 | 0.6468 | -196.0 | -168.1 | |
| 1.28 | -34.00 | 0.82 | -34.00 | -21.39 | 107.45 | -32.95 | 126.47 | 0.6321 | -906.3 | 999999 | |
| 2.30 | 7.09 | 1.50 | 4.62 | -23.42 | 106.82 | -33.58 | 128.72 | 0.6528 | 524.9 | 110.5 | |
| 0.00 | 2.56 | 0.00 | 1.66 | -22.74 | 106.67 | -33.74 | 127.71 | 0.6498 | -932.0 | -763.3 | |
| 3.84 | -34.00 | 2.46 | -34.00 | -21.33 | 107.01 | -33.39 | 126.06 | 0.6365 | -663.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.09 | -21.08 | 107.08 | -33.33 | 125.76 | 0.6341 | -495.0 | -443.8 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -19.97 | 107.24 | -33.17 | 124.32 | 0.6249 | -813.0 | -725.7 | |
| 0.00 | 2.56 | 0.00 | 1.69 | -23.59 | 106.11 | -34.29 | 128.41 | 0.6613 | -146.0 | -74.7 | |
| 0.00 | 3.33 | 0.00 | 2.11 | -19.81 | 106.93 | -33.47 | 123.89 | 0.6273 | -930.0 | -730.3 | |
| 6.57 | -34.00 | 4.23 | -34.00 | -21.21 | 106.51 | -33.90 | 125.53 | 0.6412 | -793.4 | 999999 | |
| 2.13 | 2.99 | 1.36 | 1.91 | -20.16 | 106.66 | -33.74 | 124.19 | 0.6327 | -742.8 | -691.4 | |
| 1.45 | 5.72 | 0.95 | 3.75 | -22.37 | 105.81 | -34.60 | 126.59 | 0.6563 | -887.4 | -754.5 | |
| 7.77 | 21.00 | 5.20 | 14.06 | -24.18 | 105.18 | -35.22 | 128.51 | 0.6748 | 737.1 | -19.3 | |
| 3.33 | 3.59 | 2.21 | 2.38 | -23.27 | 105.38 | -35.02 | 127.48 | 0.6667 | -664.4 | -628.7 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -19.28 | 106.15 | -34.25 | 122.60 | 0.6329 | -710.0 | -625.3 | |
| 1.71 | 14.17 | 1.13 | 9.36 | -22.31 | 105.24 | -35.17 | 126.12 | 0.6620 | -851.2 | -473.6 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -19.50 | 105.99 | -34.42 | 122.80 | 0.6362 | -780.0 | -627.5 | |
| 0.94 | -50.00 | 0.62 | -50.00 | -22.73 | 105.07 | -35.33 | 126.56 | 0.6664 | -703.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -19.66 | 105.91 | -34.49 | 122.97 | 0.6380 | -606.0 | -457.4 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -21.92 | 105.27 | -35.13 | 125.63 | 0.6592 | -784.0 | -790.0 | |
| 0.00 | 1.28 | 0.00 | 0.83 | -20.64 | 105.58 | -34.82 | 124.11 | 0.6477 | -758.0 | -610.3 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -19.31 | 105.84 | -34.56 | 122.44 | 0.6367 | -720.0 | -646.1 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -18.97 | 105.92 | -34.48 | 122.00 | 0.6336 | -708.0 | -558.9 | |
| 2.13 | 5.29 | 1.40 | 3.47 | -21.67 | 105.11 | -35.30 | 125.18 | 0.6593 | -910.7 | -838.4 | |
| 0.00 | 3.16 | 0.00 | 2.06 | -20.77 | 105.28 | -35.13 | 124.08 | 0.6519 | -782.0 | -610.9 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -19.41 | 105.40 | -35.01 | 122.28 | 0.6423 | -457.0 | -335.9 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -21.48 | 104.81 | -35.59 | 124.72 | 0.6613 | -465.0 | -421.0 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -20.46 | 104.93 | -35.47 | 123.43 | 0.6538 | 434.0 | 196.4 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -22.67 | 104.26 | -36.14 | 125.94 | 0.6745 | -617.0 | -480.8 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -21.51 | 104.60 | -35.80 | 124.63 | 0.6638 | -954.0 | -846.9 | |
| 3.67 | 249.02 | 2.42 | 166.43 | -20.97 | 104.56 | -35.84 | 123.88 | 0.6609 | -965.5 | -383.6 | |
| 43.20 | -65.00 | 28.80 | -65.00 | -21.80 | 104.01 | -36.40 | 124.64 | 0.6719 | -974.2 | 999999 | |
| 0.60 | -65.00 | 0.40 | -65.00 | -21.29 | 104.16 | -36.25 | 124.05 | 0.6673 | -1065.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -19.83 | 104.09 | -36.31 | 122.03 | 0.6595 | -737.0 | -520.0 | |
| 3.59 | -65.00 | 2.38 | -65.00 | -20.40 | 103.74 | -36.67 | 122.59 | 0.6667 | -964.0 | 999999 | |
| 0.26 | -65.00 | 0.17 | -65.00 | -20.60 | 103.68 | -36.72 | 122.82 | 0.6683 | -1120.3 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.80 | -19.99 | 103.85 | -36.55 | 122.10 | 0.6631 | -777.0 | -557.8 | |
| 9.13 | -65.00 | 6.10 | -65.00 | -21.07 | 103.47 | -36.94 | 123.33 | 0.6734 | -889.5 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -18.70 | 103.91 | -36.49 | 120.36 | 0.6551 | -737.0 | -586.0 | |
| 0.00 | 1.79 | 0.00 | 1.22 | -22.55 | 102.77 | -37.63 | 124.84 | 0.6894 | -362.0 | -242.6 | |
| 0.00 | 1.28 | 0.00 | 0.87 | -22.07 | 102.76 | -37.64 | 124.21 | 0.6867 | -4.0 | -0.1 | |
| 17.16 | -65.00 | 11.49 | -65.00 | -20.73 | 103.13 | -37.27 | 122.66 | 0.6751 | -871.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -21.81 | 102.80 | -37.60 | 123.90 | 0.6848 | -344.0 | -267.7 | |
| 7.60 | -65.00 | 5.07 | -65.00 | -20.31 | 103.21 | -37.20 | 122.15 | 0.6720 | -866.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -20.29 | 102.78 | -37.62 | 121.85 | 0.6765 | -442.0 | -419.4 | |
| 0.00 | 1.37 | 0.00 | 0.92 | -20.64 | 102.36 | -38.05 | 122.08 | 0.6830 | -392.0 | -365.2 | |
| 0.00 | 1.79 | 0.00 | 1.27 | -20.82 | 99.34 | -41.07 | 120.67 | 0.7162 | -648.0 | -520.7 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -19.53 | 99.17 | -41.23 | 118.90 | 0.7120 | -556.0 | -588.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
