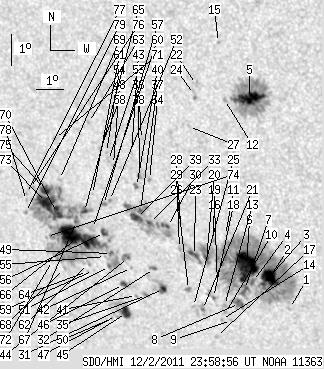

SDO HMI 2011-12-02 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 219.00 | 962.60 | 139.97 | 611.50 | -21.62 | 107.57 | -32.28 | 127.39 | 0.6265 | -18.7 | 58.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-02 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.17 | -24.04 | 111.46 | -28.39 | 133.85 | 0.6043 | 327.0 | 318.1 | |
| 16.99 | 352.34 | 10.51 | 218.75 | -23.04 | 110.97 | -28.88 | 132.06 | 0.6010 | 1230.2 | 452.0 | |
| 1.20 | -2.00 | 0.74 | -2.00 | -23.26 | 110.66 | -29.20 | 132.08 | 0.6061 | 777.8 | 999999 | |
| 2.39 | -2.00 | 1.49 | -2.00 | -23.17 | 110.31 | -29.54 | 131.65 | 0.6089 | 599.4 | 999999 | |
| 22.62 | 105.01 | 13.41 | 62.22 | -17.37 | 111.40 | -28.46 | 124.17 | 0.5518 | 1101.7 | 413.5 | |
| 38.59 | -2.00 | 23.98 | -2.00 | -22.65 | 110.21 | -29.64 | 130.87 | 0.6058 | 1102.6 | 999999 | |
| 4.35 | -2.00 | 2.73 | -2.00 | -23.43 | 109.95 | -29.90 | 131.68 | 0.6148 | 663.1 | 999999 | |
| 5.04 | 9.73 | 3.18 | 6.14 | -23.89 | 109.65 | -30.21 | 132.02 | 0.6215 | 741.1 | 529.9 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -24.44 | 109.20 | -30.66 | 132.36 | 0.6305 | 529.0 | 425.3 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -24.18 | 109.04 | -30.81 | 131.89 | 0.6300 | 646.0 | 513.1 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -21.70 | 109.66 | -30.19 | 129.08 | 0.6041 | 811.0 | 659.7 | |
| 0.00 | 1.88 | 0.00 | 1.12 | -17.40 | 110.50 | -29.35 | 123.47 | 0.5628 | 627.0 | 471.7 | |
| 0.00 | 2.39 | 0.00 | 1.52 | -23.96 | 109.06 | -30.79 | 131.62 | 0.6280 | 598.0 | 461.9 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -24.41 | 108.83 | -31.03 | 132.01 | 0.6340 | 540.0 | 437.4 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -15.64 | 110.59 | -29.26 | 120.72 | 0.5498 | 795.0 | 603.5 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -23.31 | 108.97 | -30.88 | 130.68 | 0.6239 | -159.0 | -207.7 | |
| 0.00 | 1.71 | 0.00 | 1.10 | -24.97 | 108.48 | -31.37 | 132.44 | 0.6418 | 560.0 | 420.4 | |
| 0.34 | 4.78 | 0.22 | 3.04 | -23.70 | 108.72 | -31.13 | 130.99 | 0.6295 | 565.5 | 371.6 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -21.86 | 109.18 | -30.67 | 128.90 | 0.6106 | 741.0 | 550.3 | |
| 2.73 | -2.00 | 1.72 | -2.00 | -22.44 | 108.78 | -31.07 | 129.36 | 0.6193 | 736.7 | 999999 | |
| 0.43 | 2.48 | 0.27 | 1.59 | -24.09 | 108.19 | -31.66 | 131.08 | 0.6379 | 507.0 | 429.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -16.94 | 109.59 | -30.27 | 122.02 | 0.5708 | 779.0 | 661.2 | |
| 5.55 | 15.88 | 3.51 | 10.05 | -22.35 | 108.35 | -31.50 | 128.89 | 0.6231 | 544.6 | 65.0 | |
| 0.00 | 3.33 | 0.00 | 2.01 | -17.26 | 109.46 | -30.39 | 122.40 | 0.5745 | 685.0 | 587.6 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -24.00 | 107.88 | -31.98 | 130.70 | 0.6404 | -226.0 | -180.5 | |
| 0.00 | 2.65 | 0.00 | 1.70 | -23.45 | 107.84 | -32.01 | 129.94 | 0.6367 | 663.0 | 498.5 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -18.26 | 109.05 | -30.80 | 123.60 | 0.5861 | 562.0 | 385.9 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -21.32 | 108.08 | -31.77 | 127.27 | 0.6186 | -600.0 | -411.4 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -22.12 | 107.84 | -32.01 | 128.18 | 0.6269 | -236.0 | -236.3 | |
| 1.28 | 62.75 | 0.81 | 39.99 | -21.42 | 107.57 | -32.28 | 127.01 | 0.6249 | -906.7 | -442.0 | |
| 2.39 | 11.87 | 1.55 | 7.69 | -23.42 | 106.89 | -32.96 | 129.17 | 0.6464 | 497.8 | -29.8 | |
| 1.54 | 2.82 | 0.99 | 1.82 | -22.78 | 106.72 | -33.13 | 128.20 | 0.6435 | -746.2 | -698.9 | |
| 1.96 | -30.00 | 1.25 | -30.00 | -21.30 | 106.92 | -32.93 | 126.35 | 0.6312 | -693.0 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.29 | -19.93 | 107.25 | -32.60 | 124.69 | 0.6182 | -798.0 | -626.7 | |
| 0.00 | 2.05 | 0.00 | 1.34 | -23.65 | 106.16 | -33.69 | 128.93 | 0.6555 | 154.0 | -12.2 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -18.68 | 107.24 | -32.61 | 122.87 | 0.6101 | -785.0 | -570.9 | |
| 2.56 | -30.00 | 1.63 | -30.00 | -20.92 | 106.68 | -33.17 | 125.64 | 0.6313 | -867.7 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.35 | -19.84 | 106.90 | -32.95 | 124.30 | 0.6216 | -930.0 | -782.9 | |
| 7.00 | -30.00 | 4.48 | -30.00 | -21.14 | 106.47 | -33.38 | 125.80 | 0.6351 | -826.1 | 999999 | |
| 0.85 | 2.90 | 0.54 | 1.84 | -20.16 | 106.71 | -33.14 | 124.61 | 0.6258 | -860.9 | -646.2 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -23.66 | 105.77 | -34.08 | 128.65 | 0.6595 | 131.0 | 219.9 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -22.75 | 105.84 | -34.01 | 127.51 | 0.6526 | -804.0 | -604.7 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -19.09 | 106.78 | -33.08 | 123.13 | 0.6182 | -514.0 | -534.4 | |
| 1.20 | 5.72 | 0.78 | 3.73 | -22.43 | 105.82 | -34.03 | 127.07 | 0.6507 | -879.4 | -819.3 | |
| 7.26 | 19.12 | 4.82 | 12.72 | -24.21 | 105.21 | -34.64 | 128.96 | 0.6691 | 729.1 | -60.6 | |
| 2.99 | 5.38 | 1.97 | 3.54 | -23.30 | 105.37 | -34.48 | 127.90 | 0.6613 | -653.7 | -174.1 | |
| 0.00 | 2.48 | 0.00 | 1.66 | -24.32 | 104.78 | -35.07 | 128.79 | 0.6741 | 350.0 | 375.8 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -19.47 | 106.01 | -33.84 | 123.14 | 0.6294 | -826.0 | -614.6 | |
| 1.79 | 284.47 | 1.17 | 188.75 | -22.31 | 105.19 | -34.66 | 126.46 | 0.6565 | -814.4 | -389.0 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -24.42 | 104.55 | -35.30 | 128.75 | 0.6771 | 487.0 | 324.7 | |
| 1.37 | -49.00 | 0.90 | -49.00 | -22.73 | 104.99 | -34.86 | 126.88 | 0.6614 | -692.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.88 | -20.61 | 105.58 | -34.28 | 124.43 | 0.6414 | -820.0 | -647.8 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -19.35 | 105.85 | -34.00 | 122.85 | 0.6304 | -633.0 | -571.7 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -19.09 | 105.83 | -34.02 | 122.49 | 0.6290 | -754.0 | -651.6 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -22.40 | 104.93 | -34.92 | 126.41 | 0.6599 | -599.0 | -505.8 | |
| 3.42 | 5.46 | 2.23 | 3.56 | -21.63 | 105.11 | -34.74 | 125.50 | 0.6531 | -940.0 | -788.8 | |
| 0.00 | 2.48 | 0.00 | 1.60 | -20.74 | 105.31 | -34.54 | 124.43 | 0.6452 | -814.0 | -692.6 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -18.97 | 105.64 | -34.21 | 122.17 | 0.6306 | -489.0 | -491.9 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -22.86 | 104.32 | -35.53 | 126.59 | 0.6693 | -620.0 | -482.5 | |
| 0.00 | 3.16 | 0.00 | 2.07 | -21.51 | 104.68 | -35.17 | 125.04 | 0.6569 | -748.0 | -679.7 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -20.43 | 104.97 | -34.88 | 123.77 | 0.6470 | 295.0 | 257.0 | |
| 0.00 | 1.79 | 0.00 | 1.19 | -22.64 | 104.19 | -35.66 | 126.21 | 0.6692 | -586.0 | -475.7 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -18.16 | 105.37 | -34.48 | 120.83 | 0.6288 | -605.0 | -608.3 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -22.89 | 104.08 | -35.78 | 126.47 | 0.6721 | -682.0 | -542.7 | |
| 2.48 | -49.00 | 1.62 | -49.00 | -20.97 | 104.52 | -35.34 | 124.20 | 0.6554 | -1002.9 | 999999 | |
| 44.40 | -49.00 | 29.40 | -49.00 | -21.80 | 104.01 | -35.84 | 124.99 | 0.6660 | -983.7 | 999999 | |
| 1.11 | -49.00 | 0.73 | -49.00 | -21.29 | 104.11 | -35.74 | 124.37 | 0.6617 | -897.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.86 | -22.80 | 103.19 | -36.66 | 125.77 | 0.6808 | -156.0 | -153.2 | |
| 0.00 | 1.79 | 0.00 | 1.17 | -19.96 | 103.81 | -36.04 | 122.37 | 0.6571 | -669.0 | -553.4 | |
| 8.37 | -49.00 | 5.55 | -49.00 | -21.04 | 103.44 | -36.41 | 123.60 | 0.6675 | -908.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.89 | -18.67 | 103.95 | -35.90 | 120.67 | 0.6482 | -690.0 | -568.4 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -22.55 | 102.79 | -37.07 | 125.18 | 0.6834 | -316.0 | -243.9 | |
| 19.29 | -49.00 | 12.82 | -49.00 | -20.69 | 103.10 | -36.75 | 122.93 | 0.6692 | -870.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -21.78 | 102.78 | -37.07 | 124.17 | 0.6789 | -284.0 | -304.9 | |
| 7.51 | -49.00 | 4.97 | -49.00 | -20.28 | 103.18 | -36.67 | 122.42 | 0.6660 | -867.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -20.26 | 102.55 | -37.30 | 122.00 | 0.6727 | -444.0 | -353.5 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -20.42 | 102.39 | -37.46 | 122.12 | 0.6754 | -395.0 | -320.0 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -20.64 | 102.32 | -37.53 | 122.38 | 0.6773 | -438.0 | -329.1 | |
| 0.00 | 1.62 | 0.00 | 1.09 | -21.02 | 102.17 | -37.68 | 122.79 | 0.6811 | -517.0 | -382.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
