SDO HMI 2011-12-02 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.62 | 0.00 | 4.46 | -10.04 | 126.53 | -13.32 | 129.47 | 0.2964 | 824.3 | 645.3 | |
|
previous
or next observation for the same group /

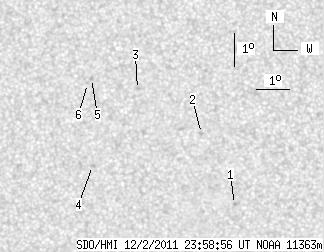

back to the solar disc SDO HMI 2011-12-02 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.66 | -12.35 | 129.31 | -10.54 | 141.61 | 0.2890 | 932.0 | 689.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -10.20 | 128.38 | -11.47 | 133.99 | 0.2732 | 909.0 | 640.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -8.89 | 126.47 | -13.38 | 126.01 | 0.2840 | 764.0 | 619.7 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -11.18 | 124.97 | -14.88 | 129.19 | 0.3265 | 753.0 | 635.2 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -8.56 | 125.06 | -14.79 | 122.46 | 0.3005 | 883.0 | 671.5 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -8.71 | 124.93 | -14.92 | 122.66 | 0.3036 | 705.0 | 600.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
