SDO HMI 2011-12-03 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 219.47 | 959.04 | 139.54 | 605.82 | -21.57 | 107.49 | -31.81 | 127.70 | 0.6211 | -32.4 | 68.5 | |
|
previous
or next observation for the same group /

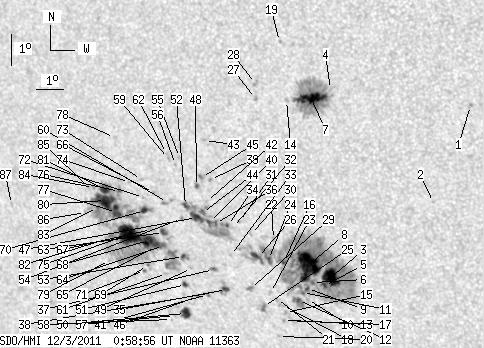

back to the solar disc SDO HMI 2011-12-03 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.92 | -17.56 | 116.83 | -22.47 | 130.59 | 0.4819 | -731.0 | -594.0 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -20.61 | 115.11 | -24.19 | 133.37 | 0.5297 | -638.0 | -523.8 | |
| 17.76 | 369.37 | 10.92 | 228.24 | -23.04 | 110.97 | -28.34 | 132.56 | 0.5952 | 1238.0 | 441.2 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -17.09 | 112.12 | -27.18 | 124.84 | 0.5342 | 342.0 | 329.6 | |
| 2.22 | -3.00 | 1.37 | -3.00 | -23.30 | 110.69 | -28.62 | 132.65 | 0.6003 | 754.7 | 999999 | |
| 1.71 | -3.00 | 1.06 | -3.00 | -23.21 | 110.27 | -29.03 | 132.14 | 0.6039 | 596.1 | 999999 | |
| 18.02 | 96.23 | 10.62 | 56.73 | -17.37 | 111.41 | -27.89 | 124.66 | 0.5450 | 1128.4 | 467.3 | |
| 38.25 | -3.00 | 23.63 | -3.00 | -22.66 | 110.21 | -29.09 | 131.35 | 0.5999 | 1107.2 | 999999 | |
| 1.62 | -3.00 | 1.01 | -3.00 | -23.40 | 110.04 | -29.27 | 132.20 | 0.6079 | 698.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -23.76 | 109.95 | -29.35 | 132.59 | 0.6117 | 561.0 | 468.9 | |
| 1.88 | -3.00 | 1.17 | -3.00 | -23.53 | 109.82 | -29.48 | 132.18 | 0.6112 | 660.0 | 999999 | |
| 2.05 | 8.37 | 1.28 | 5.25 | -23.79 | 109.60 | -29.70 | 132.33 | 0.6155 | 714.0 | 665.0 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -24.45 | 109.17 | -30.13 | 132.81 | 0.6252 | 496.0 | 446.2 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -17.44 | 110.52 | -28.79 | 123.98 | 0.5562 | 639.0 | 477.3 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -24.19 | 109.02 | -30.29 | 132.34 | 0.6247 | 594.0 | 505.2 | |
| 1.54 | -3.00 | 0.96 | -3.00 | -22.57 | 109.35 | -29.95 | 130.47 | 0.6083 | 625.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.87 | -24.45 | 108.87 | -30.43 | 132.55 | 0.6282 | 550.0 | 437.7 | |
| 0.00 | 2.99 | 0.00 | 1.89 | -23.96 | 108.96 | -30.34 | 132.00 | 0.6234 | 579.0 | 499.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -15.61 | 110.57 | -28.73 | 121.10 | 0.5428 | 806.0 | 625.6 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -24.98 | 108.54 | -30.76 | 132.95 | 0.6357 | 613.0 | 425.5 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -23.73 | 108.80 | -30.50 | 131.56 | 0.6233 | 747.0 | 469.1 | |
| 0.00 | 2.22 | 0.00 | 1.38 | -21.83 | 109.16 | -30.15 | 129.29 | 0.6046 | 721.0 | 524.3 | |
| 0.00 | 1.79 | 0.00 | 1.13 | -23.54 | 108.62 | -30.68 | 131.15 | 0.6236 | 511.0 | 416.8 | |
| 3.33 | -3.00 | 2.08 | -3.00 | -22.47 | 108.82 | -30.49 | 129.89 | 0.6132 | 726.5 | 999999 | |
| 0.00 | 5.04 | 0.00 | 3.21 | -24.00 | 108.24 | -31.06 | 131.43 | 0.6311 | 621.0 | 447.9 | |
| 5.38 | -3.00 | 3.38 | -3.00 | -22.41 | 108.42 | -30.88 | 129.47 | 0.6170 | 571.8 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.18 | -17.38 | 109.42 | -29.88 | 122.99 | 0.5690 | 803.0 | 586.0 | |
| 0.00 | 2.73 | 0.00 | 1.64 | -16.92 | 109.50 | -29.80 | 122.33 | 0.5649 | 807.0 | 674.6 | |
| 0.00 | 3.67 | 0.00 | 2.34 | -23.42 | 107.90 | -31.40 | 130.39 | 0.6301 | 698.0 | 458.3 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -21.68 | 108.34 | -30.96 | 128.40 | 0.6123 | 477.0 | 366.2 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -21.26 | 108.03 | -31.27 | 127.57 | 0.6126 | -656.0 | -564.1 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -21.46 | 107.72 | -31.58 | 127.60 | 0.6174 | -375.0 | -350.5 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -22.36 | 107.42 | -31.88 | 128.59 | 0.6272 | 238.0 | 167.6 | |
| 1.45 | 68.48 | 0.91 | 43.38 | -21.39 | 107.55 | -31.75 | 127.38 | 0.6188 | -837.1 | -399.4 | |
| 2.48 | 8.71 | 1.59 | 5.60 | -23.46 | 106.98 | -32.32 | 129.71 | 0.6399 | 588.4 | 176.0 | |
| 1.96 | -34.00 | 1.24 | -34.00 | -21.33 | 107.12 | -32.18 | 126.95 | 0.6232 | -764.3 | 999999 | |
| 1.96 | 3.07 | 1.26 | 1.97 | -22.81 | 106.66 | -32.64 | 128.61 | 0.6386 | -708.9 | -703.2 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -23.56 | 106.45 | -32.85 | 129.43 | 0.6461 | 361.0 | 225.9 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -19.94 | 107.26 | -32.04 | 125.10 | 0.6119 | -777.0 | -643.9 | |
| 2.39 | -34.00 | 1.51 | -34.00 | -21.30 | 106.90 | -32.40 | 126.74 | 0.6253 | -695.5 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.33 | -23.62 | 106.20 | -33.10 | 129.33 | 0.6491 | -368.0 | -101.1 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -20.64 | 106.95 | -32.35 | 125.85 | 0.6202 | -802.0 | -602.2 | |
| 0.00 | 1.28 | 0.00 | 0.79 | -18.71 | 107.31 | -31.99 | 123.36 | 0.6031 | -769.0 | -514.5 | |
| 2.48 | -34.00 | 1.57 | -34.00 | -20.99 | 106.71 | -32.59 | 126.16 | 0.6252 | -866.8 | 999999 | |
| 0.00 | 4.10 | 0.00 | 2.57 | -19.88 | 106.94 | -32.36 | 124.77 | 0.6151 | -947.0 | -713.6 | |
| 0.00 | 1.62 | 0.00 | 1.06 | -23.69 | 105.80 | -33.51 | 129.11 | 0.6538 | 514.0 | 341.1 | |
| 7.43 | -34.00 | 4.72 | -34.00 | -21.15 | 106.45 | -32.85 | 126.19 | 0.6292 | -822.6 | 999999 | |
| 1.88 | 2.73 | 1.18 | 1.72 | -20.16 | 106.69 | -32.61 | 124.99 | 0.6199 | -787.8 | -446.8 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -22.79 | 105.82 | -33.48 | 127.94 | 0.6472 | -650.0 | -553.8 | |
| 7.86 | 9.14 | 5.19 | 6.04 | -24.25 | 105.16 | -34.14 | 129.36 | 0.6642 | 702.0 | 435.3 | |
| 2.22 | 2.82 | 1.45 | 1.84 | -23.31 | 105.44 | -33.86 | 128.34 | 0.6548 | -716.0 | -607.4 | |
| 2.82 | -34.00 | 1.79 | -34.00 | -20.77 | 106.13 | -33.18 | 125.43 | 0.6302 | 478.7 | 999999 | |
| 2.31 | 5.29 | 1.49 | 3.43 | -22.40 | 105.62 | -33.68 | 127.28 | 0.6467 | -896.4 | -705.9 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -21.18 | 105.87 | -33.43 | 125.81 | 0.6358 | -780.0 | -613.4 | |
| 0.00 | 1.71 | 0.00 | 1.07 | -19.25 | 106.26 | -33.04 | 123.38 | 0.6187 | -593.0 | -457.5 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -19.47 | 106.06 | -33.24 | 123.56 | 0.6224 | -709.0 | -626.0 | |
| 0.00 | 1.20 | 0.00 | 0.79 | -24.32 | 104.71 | -34.60 | 129.12 | 0.6693 | 520.0 | 353.1 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -24.45 | 104.55 | -34.76 | 129.17 | 0.6718 | 462.0 | 360.5 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -19.29 | 105.84 | -33.46 | 123.13 | 0.6238 | -740.0 | -632.8 | |
| 0.00 | 4.78 | 0.00 | 3.06 | -20.68 | 105.47 | -33.84 | 124.83 | 0.6369 | -543.0 | -584.3 | |
| 0.00 | 1.37 | 0.00 | 0.90 | -22.96 | 104.80 | -34.50 | 127.43 | 0.6590 | -667.0 | -457.2 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -19.13 | 105.80 | -33.50 | 122.88 | 0.6232 | -715.0 | -585.4 | |
| 3.59 | 298.41 | 2.32 | 196.66 | -21.64 | 105.06 | -34.24 | 125.85 | 0.6476 | -987.2 | -396.4 | |
| 2.99 | -63.00 | 1.95 | -63.00 | -22.05 | 104.95 | -34.36 | 126.33 | 0.6516 | -860.9 | 999999 | |
| 2.39 | -63.00 | 1.56 | -63.00 | -22.09 | 104.66 | -34.64 | 126.18 | 0.6548 | -843.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -20.36 | 105.01 | -34.29 | 124.07 | 0.6400 | 378.0 | 277.0 | |
| 0.00 | 3.33 | 0.00 | 2.17 | -21.54 | 104.62 | -34.68 | 125.42 | 0.6518 | -801.0 | -712.9 | |
| 9.48 | -63.00 | 6.21 | -63.00 | -21.90 | 104.41 | -34.89 | 125.75 | 0.6563 | -1046.6 | 999999 | |
| 0.26 | 2.99 | 0.17 | 1.97 | -22.70 | 104.13 | -35.17 | 126.63 | 0.6644 | -694.3 | -429.3 | |
| 3.84 | -63.00 | 2.49 | -63.00 | -20.94 | 104.51 | -34.79 | 124.53 | 0.6491 | -998.7 | 999999 | |
| 1.28 | 1.54 | 0.85 | 1.02 | -22.87 | 103.97 | -35.33 | 126.72 | 0.6672 | -571.1 | -571.7 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -20.53 | 104.59 | -34.72 | 124.01 | 0.6457 | -727.0 | -643.0 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -19.96 | 104.65 | -34.65 | 123.27 | 0.6414 | -230.0 | -167.9 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -20.06 | 104.17 | -35.13 | 123.08 | 0.6475 | -742.0 | -619.2 | |
| 29.12 | -63.00 | 19.21 | -63.00 | -21.71 | 103.68 | -35.62 | 125.00 | 0.6630 | -968.4 | 999999 | |
| 1.37 | -63.00 | 0.89 | -63.00 | -20.34 | 103.71 | -35.60 | 123.17 | 0.6544 | -945.8 | 999999 | |
| 7.60 | -63.00 | 5.00 | -63.00 | -21.01 | 103.41 | -35.90 | 123.89 | 0.6617 | -954.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.21 | -18.64 | 103.94 | -35.36 | 120.96 | 0.6417 | -631.0 | -513.9 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -22.55 | 102.67 | -36.63 | 125.46 | 0.6788 | -343.0 | -261.5 | |
| 19.04 | -63.00 | 12.57 | -63.00 | -20.63 | 103.08 | -36.22 | 123.17 | 0.6630 | -880.4 | 999999 | |
| 6.57 | -63.00 | 4.32 | -63.00 | -20.28 | 103.14 | -36.16 | 122.73 | 0.6603 | -909.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -21.91 | 102.55 | -36.75 | 124.54 | 0.6762 | -266.0 | -176.6 | |
| 0.94 | -63.00 | 0.62 | -63.00 | -20.86 | 102.70 | -36.60 | 123.23 | 0.6684 | -264.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -20.22 | 102.72 | -36.58 | 122.39 | 0.6646 | -540.0 | -435.4 | |
| 0.00 | 1.28 | 0.00 | 0.85 | -20.23 | 102.52 | -36.78 | 122.27 | 0.6667 | -491.0 | -368.3 | |
| 0.00 | 1.20 | 0.00 | 0.80 | -21.02 | 102.18 | -37.12 | 123.13 | 0.6750 | -456.0 | -389.6 | |
| 0.00 | 1.62 | 0.00 | 1.13 | -20.79 | 99.25 | -40.06 | 121.14 | 0.7053 | -613.0 | -473.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
