SDO HMI 2011-12-03 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.63 | 0.00 | 2.93 | -11.05 | 126.44 | -12.31 | 134.40 | 0.2933 | 678.0 | 548.0 | |
|
previous
or next observation for the same group /

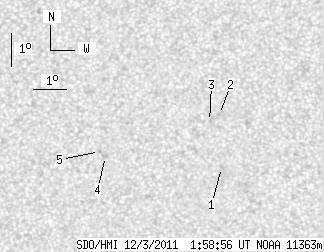

back to the solar disc SDO HMI 2011-12-03 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.53 | -11.61 | 128.61 | -10.14 | 140.95 | 0.2750 | 770.0 | 646.7 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -10.01 | 128.61 | -10.15 | 136.88 | 0.2550 | 823.0 | 688.6 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -10.22 | 128.29 | -10.46 | 136.59 | 0.2612 | 515.0 | 343.2 | |
| 0.00 | 2.48 | 0.00 | 1.29 | -11.28 | 125.05 | -13.70 | 131.69 | 0.3125 | 515.0 | 475.7 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -11.13 | 124.87 | -13.88 | 130.96 | 0.3131 | 767.0 | 603.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
