SDO HMI 2011-12-03 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.90 | 656.52 | 57.20 | 332.81 | 7.94 | 128.94 | -9.26 | 48.62 | 0.2071 | 119.6 | 45.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

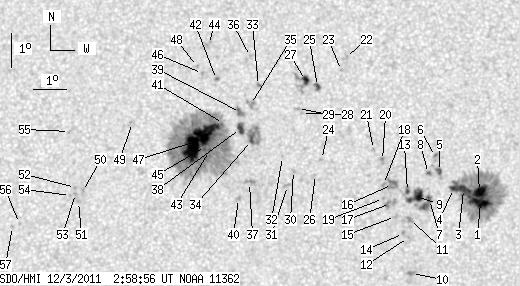

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.74 | 171.05 | 4.86 | 85.41 | 6.64 | 134.38 | -3.83 | 32.53 | 0.1239 | -1512.8 | -513.1 | |
| 9.05 | -1.00 | 4.52 | -1.00 | 6.96 | 134.34 | -3.86 | 31.36 | 0.1290 | -1401.0 | 999999 | |
| 4.61 | -1.00 | 2.30 | -1.00 | 7.02 | 133.87 | -4.34 | 34.15 | 0.1344 | -1114.9 | 999999 | |
| 0.85 | -1.00 | 0.43 | -1.00 | 7.05 | 133.57 | -4.64 | 35.81 | 0.1378 | -1081.6 | 999999 | |
| 2.82 | 6.32 | 1.41 | 3.17 | 7.56 | 133.14 | -5.06 | 36.09 | 0.1491 | -1005.1 | -648.7 | |
| 0.00 | 3.16 | 0.00 | 1.58 | 8.00 | 133.02 | -5.19 | 35.03 | 0.1567 | -811.0 | -674.0 | |
| 2.48 | 24.51 | 1.24 | 12.27 | 6.72 | 132.85 | -5.35 | 41.27 | 0.1411 | -1018.3 | -934.8 | |
| 1.28 | 1.79 | 0.64 | 0.90 | 7.50 | 132.81 | -5.39 | 38.06 | 0.1518 | -874.2 | -766.5 | |
| 12.13 | -7.00 | 6.07 | -7.00 | 6.81 | 132.46 | -5.74 | 42.85 | 0.1467 | -1077.2 | 999999 | |
| 0.00 | 3.59 | 0.00 | 1.79 | 4.53 | 132.34 | -5.87 | 56.52 | 0.1227 | -1071.0 | -856.6 | |
| 0.00 | 3.84 | 0.00 | 1.92 | 6.13 | 132.26 | -5.94 | 47.23 | 0.1409 | -1218.0 | -910.9 | |
| 0.00 | 1.02 | 0.00 | 0.51 | 5.60 | 132.24 | -5.97 | 50.28 | 0.1351 | -958.0 | -733.1 | |
| 1.37 | 4.01 | 0.68 | 2.01 | 6.96 | 132.19 | -6.01 | 43.47 | 0.1518 | -939.9 | -750.0 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 5.71 | 132.09 | -6.12 | 50.31 | 0.1384 | -1037.0 | -778.8 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 6.22 | 131.84 | -6.36 | 48.70 | 0.1473 | -872.0 | -798.2 | |
| 0.00 | 8.80 | 0.00 | 4.41 | 7.17 | 131.74 | -6.46 | 44.60 | 0.1598 | -797.0 | -828.1 | |
| 0.00 | 7.00 | 0.00 | 3.51 | 6.60 | 131.69 | -6.52 | 47.45 | 0.1537 | -928.0 | -881.0 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 7.17 | 131.47 | -6.73 | 45.76 | 0.1631 | -876.0 | -740.4 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 6.75 | 131.48 | -6.73 | 47.65 | 0.1581 | -867.0 | -718.8 | |
| 0.00 | 3.67 | 0.00 | 1.85 | 7.88 | 131.43 | -6.77 | 42.92 | 0.1724 | -942.0 | -765.7 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.21 | 131.15 | -7.05 | 42.77 | 0.1797 | -749.0 | -528.3 | |
| 0.00 | 3.33 | 0.00 | 1.69 | 10.96 | 130.25 | -7.96 | 37.25 | 0.2256 | -770.0 | -710.8 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 10.57 | 130.14 | -8.07 | 38.73 | 0.2216 | -1027.0 | -702.7 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 7.91 | 129.59 | -8.61 | 49.61 | 0.1956 | -856.0 | -677.0 | |
| 3.07 | 3.67 | 1.56 | 1.87 | 10.09 | 129.42 | -8.78 | 42.55 | 0.2234 | -984.6 | -780.4 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 7.46 | 129.42 | -8.78 | 51.97 | 0.1931 | -778.0 | -579.4 | |
| 3.76 | 12.64 | 1.91 | 6.43 | 10.27 | 129.05 | -9.15 | 43.17 | 0.2299 | -939.3 | -636.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 9.28 | 128.96 | -9.25 | 46.62 | 0.2192 | -842.0 | -631.1 | |
| 0.00 | 2.13 | 0.00 | 1.08 | 9.43 | 128.83 | -9.37 | 46.50 | 0.2225 | -710.0 | -512.3 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 7.58 | 128.76 | -9.45 | 53.48 | 0.2034 | -302.0 | -266.2 | |
| 0.00 | 2.90 | 0.00 | 1.47 | 7.13 | 128.58 | -9.62 | 55.79 | 0.2015 | -733.0 | -580.5 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 8.00 | 128.41 | -9.79 | 52.83 | 0.2123 | 867.0 | 599.2 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 10.12 | 127.62 | -10.58 | 47.73 | 0.2454 | 1042.0 | 865.5 | |
| 1.79 | 20.15 | 0.91 | 10.26 | 8.47 | 127.46 | -10.74 | 53.60 | 0.2301 | 1126.5 | 878.9 | |
| 0.00 | 5.64 | 0.00 | 2.88 | 9.55 | 127.40 | -10.81 | 50.12 | 0.2421 | 975.0 | 832.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 10.98 | 127.35 | -10.86 | 45.89 | 0.2587 | 873.0 | 656.3 | |
| 0.00 | 4.70 | 0.00 | 2.38 | 7.22 | 127.43 | -10.77 | 58.35 | 0.2188 | -446.0 | -620.1 | |
| 5.38 | 6.66 | 2.74 | 3.40 | 8.83 | 127.11 | -11.09 | 53.21 | 0.2384 | 1144.5 | 869.3 | |
| 0.00 | 5.98 | 0.00 | 3.05 | 9.31 | 127.10 | -11.10 | 51.65 | 0.2435 | 1112.0 | 933.8 | |
| 0.00 | 2.48 | 0.00 | 1.26 | 6.74 | 127.11 | -11.09 | 60.97 | 0.2196 | -851.0 | -645.3 | |
| 0.26 | 311.78 | 0.13 | 159.47 | 8.98 | 126.59 | -11.61 | 53.95 | 0.2470 | 862.3 | 459.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 10.29 | 126.33 | -11.87 | 50.41 | 0.2639 | 1094.0 | 864.8 | |
| 1.54 | -41.00 | 0.79 | -41.00 | 8.17 | 126.19 | -12.01 | 57.59 | 0.2452 | 984.8 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.41 | 11.34 | 126.04 | -12.16 | 48.08 | 0.2789 | 732.0 | 626.1 | |
| 0.94 | -41.00 | 0.48 | -41.00 | 8.29 | 126.06 | -12.14 | 57.45 | 0.2480 | 1283.4 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 10.47 | 125.89 | -12.31 | 50.88 | 0.2715 | 1004.0 | 812.2 | |
| 51.83 | -41.00 | 26.53 | -41.00 | 8.47 | 125.84 | -12.36 | 57.29 | 0.2528 | 1433.6 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 10.68 | 125.73 | -12.47 | 50.64 | 0.2758 | 1005.0 | 685.2 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 9.00 | 123.80 | -14.41 | 59.42 | 0.2868 | 703.0 | 657.9 | |
| 0.00 | 2.48 | 0.00 | 1.28 | 6.94 | 122.33 | -15.88 | 68.01 | 0.2942 | 967.0 | 728.4 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 6.64 | 122.22 | -15.99 | 69.09 | 0.2942 | 917.0 | 763.9 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 7.06 | 122.11 | -16.10 | 67.90 | 0.2983 | 890.0 | 741.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 6.88 | 122.11 | -16.09 | 68.46 | 0.2972 | 936.0 | 772.9 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 6.82 | 121.96 | -16.24 | 68.82 | 0.2992 | 708.0 | 585.6 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 8.73 | 121.85 | -16.35 | 63.19 | 0.3132 | 779.0 | 622.9 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 5.98 | 120.40 | -17.80 | 72.96 | 0.3194 | 734.0 | 580.7 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 5.89 | 120.19 | -18.02 | 73.42 | 0.3224 | 788.0 | 598.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
