SDO HMI 2011-12-03 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 213.81 | 1068.05 | 133.72 | 661.74 | -21.62 | 107.74 | -29.92 | 129.32 | 0.6005 | -77.3 | 43.7 | |
|
previous
or next observation for the same group /

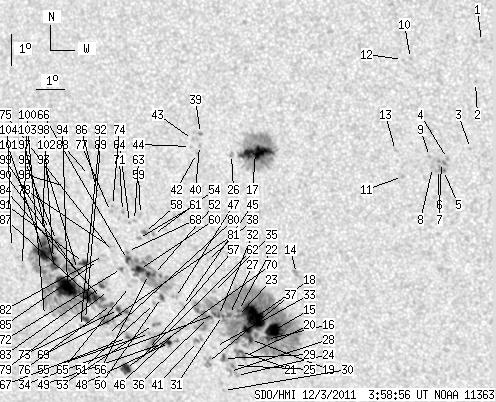

back to the solar disc SDO HMI 2011-12-03 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.32 | -13.93 | 119.28 | -18.38 | 129.39 | 0.3978 | -788.0 | -663.0 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -15.19 | 118.97 | -18.68 | 131.39 | 0.4139 | -686.0 | -571.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -17.23 | 118.61 | -19.05 | 134.52 | 0.4391 | -807.0 | -620.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -17.54 | 117.82 | -19.84 | 133.93 | 0.4512 | -906.0 | -732.4 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -17.92 | 117.64 | -20.02 | 134.31 | 0.4570 | -918.0 | -839.1 | |
| 0.00 | 2.99 | 0.00 | 1.66 | -17.67 | 117.60 | -20.05 | 133.84 | 0.4549 | -876.0 | -874.1 | |
| 0.00 | 2.90 | 0.00 | 1.62 | -17.89 | 117.48 | -20.18 | 134.04 | 0.4585 | -664.0 | -650.7 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -17.82 | 117.29 | -20.37 | 133.67 | 0.4601 | -707.0 | -550.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -17.48 | 117.23 | -20.43 | 133.02 | 0.4573 | -681.0 | -524.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -14.46 | 116.93 | -20.73 | 127.20 | 0.4321 | -787.0 | -482.3 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -18.11 | 116.25 | -21.40 | 132.78 | 0.4746 | -888.0 | -649.9 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -14.49 | 116.67 | -20.99 | 126.93 | 0.4357 | -319.0 | -313.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -17.30 | 116.12 | -21.53 | 131.27 | 0.4683 | 698.0 | 483.8 | |
| 0.00 | 3.76 | 0.00 | 2.22 | -21.19 | 112.14 | -25.51 | 132.74 | 0.5490 | 861.0 | 619.8 | |
| 15.20 | 414.01 | 9.21 | 251.95 | -23.02 | 110.96 | -26.70 | 134.09 | 0.5780 | 1244.7 | 432.0 | |
| 0.43 | -15.00 | 0.26 | -15.00 | -23.32 | 110.64 | -27.02 | 134.17 | 0.5838 | 801.8 | 999999 | |
| 21.09 | 100.86 | 12.26 | 58.58 | -17.39 | 111.36 | -26.29 | 126.14 | 0.5256 | 1125.0 | 468.4 | |
| 35.53 | -15.00 | 21.59 | -15.00 | -22.64 | 110.32 | -27.34 | 132.94 | 0.5812 | 1172.5 | 999999 | |
| 2.13 | -15.00 | 1.31 | -15.00 | -23.32 | 110.06 | -27.60 | 133.61 | 0.5898 | 679.4 | 999999 | |
| 0.60 | -15.00 | 0.37 | -15.00 | -23.87 | 109.71 | -27.94 | 134.01 | 0.5981 | 805.0 | 999999 | |
| 1.02 | -15.00 | 0.63 | -15.00 | -23.71 | 109.60 | -28.05 | 133.70 | 0.5978 | 813.5 | 999999 | |
| 1.02 | -15.00 | 0.62 | -15.00 | -22.39 | 109.83 | -27.82 | 132.12 | 0.5841 | 601.6 | 999999 | |
| 0.60 | -15.00 | 0.36 | -15.00 | -22.58 | 109.75 | -27.90 | 132.31 | 0.5866 | 670.7 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.33 | -24.50 | 109.27 | -28.39 | 134.41 | 0.6079 | 582.0 | 499.7 | |
| 0.00 | 2.31 | 0.00 | 1.43 | -24.17 | 109.24 | -28.42 | 133.96 | 0.6055 | 674.0 | 557.2 | |
| 0.00 | 2.13 | 0.00 | 1.25 | -17.45 | 110.52 | -27.14 | 125.44 | 0.5362 | 648.0 | 488.3 | |
| 1.62 | -15.00 | 0.99 | -15.00 | -22.52 | 109.48 | -28.18 | 131.97 | 0.5890 | 716.5 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.92 | -24.37 | 109.04 | -28.62 | 134.03 | 0.6091 | 512.0 | 413.6 | |
| 2.31 | 5.47 | 1.43 | 3.40 | -23.94 | 108.92 | -28.73 | 133.37 | 0.6067 | 588.2 | 547.8 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -24.99 | 108.66 | -29.00 | 134.49 | 0.6182 | 655.0 | 509.4 | |
| 0.77 | -15.00 | 0.47 | -15.00 | -22.55 | 109.21 | -28.44 | 131.77 | 0.5920 | 661.3 | 999999 | |
| 1.37 | -15.00 | 0.84 | -15.00 | -22.55 | 109.07 | -28.59 | 131.64 | 0.5936 | 728.6 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -23.56 | 108.72 | -28.93 | 132.67 | 0.6055 | 212.0 | 267.4 | |
| 1.11 | -15.00 | 0.68 | -15.00 | -22.52 | 108.93 | -28.73 | 131.47 | 0.5948 | 792.2 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.36 | -21.78 | 109.06 | -28.60 | 130.56 | 0.5873 | 728.0 | 499.6 | |
| 2.13 | -15.00 | 1.32 | -15.00 | -22.62 | 108.69 | -28.97 | 131.38 | 0.5981 | 647.2 | 999999 | |
| 0.00 | 6.32 | 0.00 | 3.96 | -24.08 | 108.30 | -29.36 | 132.98 | 0.6142 | 562.0 | 423.9 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -20.79 | 109.05 | -28.60 | 129.16 | 0.5794 | 609.0 | 530.4 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -16.81 | 109.54 | -28.12 | 123.53 | 0.5433 | 896.0 | 772.0 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -17.18 | 109.44 | -28.21 | 124.04 | 0.5472 | 805.0 | 590.7 | |
| 1.11 | 4.95 | 0.69 | 3.09 | -23.40 | 108.10 | -29.56 | 131.90 | 0.6106 | 546.4 | 468.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -17.43 | 109.30 | -28.36 | 124.31 | 0.5508 | 674.0 | 540.1 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -17.00 | 109.23 | -28.43 | 123.56 | 0.5485 | 676.0 | 478.1 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -17.21 | 109.12 | -28.54 | 123.81 | 0.5514 | 575.0 | 458.9 | |
| 0.00 | 2.73 | 0.00 | 1.70 | -22.24 | 107.82 | -29.84 | 130.09 | 0.6043 | -77.0 | -108.8 | |
| 0.00 | 2.99 | 0.00 | 1.87 | -23.05 | 107.44 | -30.22 | 130.86 | 0.6146 | -90.0 | -62.4 | |
| 0.00 | 1.79 | 0.00 | 1.11 | -21.98 | 107.62 | -30.03 | 129.57 | 0.6044 | 557.0 | 349.2 | |
| 1.96 | 8.97 | 1.24 | 5.66 | -23.44 | 107.04 | -30.62 | 131.05 | 0.6218 | 440.8 | 286.3 | |
| 0.60 | -48.00 | 0.38 | -48.00 | -23.47 | 106.77 | -30.89 | 130.86 | 0.6249 | 483.6 | 999999 | |
| 2.13 | 79.16 | 1.33 | 49.25 | -21.99 | 107.10 | -30.55 | 129.14 | 0.6100 | 383.2 | -496.3 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -22.18 | 106.80 | -30.86 | 129.15 | 0.6148 | -701.0 | -528.5 | |
| 1.62 | -50.00 | 1.01 | -50.00 | -21.25 | 106.98 | -30.68 | 128.02 | 0.6058 | -913.5 | 999999 | |
| 0.34 | 3.16 | 0.22 | 1.99 | -22.86 | 106.59 | -31.07 | 129.90 | 0.6221 | -835.5 | -701.6 | |
| 0.00 | 1.28 | 0.00 | 0.79 | -19.98 | 107.26 | -30.39 | 126.44 | 0.5933 | -819.0 | -626.1 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -23.15 | 106.36 | -31.29 | 130.10 | 0.6267 | -648.0 | -526.3 | |
| 2.22 | -50.00 | 1.38 | -50.00 | -21.25 | 106.80 | -30.86 | 127.87 | 0.6079 | -819.0 | 999999 | |
| 0.94 | 8.80 | 0.60 | 5.59 | -23.67 | 106.15 | -31.51 | 130.62 | 0.6328 | 321.3 | -114.7 | |
| 1.45 | 2.65 | 0.89 | 1.63 | -19.92 | 106.95 | -30.71 | 126.09 | 0.5964 | -834.9 | -759.7 | |
| 0.00 | 1.88 | 0.00 | 1.15 | -19.35 | 106.92 | -30.73 | 125.25 | 0.5927 | -692.0 | -556.6 | |
| 4.53 | -50.00 | 2.82 | -50.00 | -21.10 | 106.50 | -31.16 | 127.41 | 0.6100 | -920.7 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.16 | -20.11 | 106.69 | -30.97 | 126.16 | 0.6008 | -893.0 | -688.7 | |
| 0.00 | 2.65 | 0.00 | 1.70 | -24.03 | 105.67 | -31.99 | 130.70 | 0.6405 | 592.0 | 480.0 | |
| 0.00 | 1.37 | 0.00 | 0.84 | -19.54 | 106.66 | -30.99 | 125.32 | 0.5970 | -753.0 | -613.1 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -19.61 | 106.47 | -31.19 | 125.26 | 0.5997 | -648.0 | -539.0 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -21.64 | 106.00 | -31.66 | 127.76 | 0.6194 | -739.0 | -556.4 | |
| 2.73 | -50.00 | 1.71 | -50.00 | -20.78 | 106.13 | -31.53 | 126.67 | 0.6118 | 489.3 | 999999 | |
| 1.45 | 4.36 | 0.93 | 2.79 | -23.29 | 105.49 | -32.16 | 129.58 | 0.6368 | -467.2 | -144.6 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -20.53 | 106.19 | -31.47 | 126.35 | 0.6093 | 726.0 | 653.4 | |
| 1.45 | 323.24 | 0.92 | 208.77 | -22.45 | 105.68 | -31.98 | 128.61 | 0.6287 | -925.9 | -417.8 | |
| 7.77 | 8.88 | 5.04 | 5.76 | -24.30 | 105.13 | -32.52 | 130.62 | 0.6479 | 666.8 | 356.3 | |
| 0.00 | 1.37 | 0.00 | 0.84 | -19.26 | 106.28 | -31.37 | 124.61 | 0.5994 | -756.0 | -694.8 | |
| 1.20 | 2.90 | 0.75 | 1.82 | -21.07 | 105.84 | -31.82 | 126.84 | 0.6171 | -832.3 | -680.0 | |
| 2.82 | -69.00 | 1.80 | -69.00 | -22.38 | 105.39 | -32.26 | 128.30 | 0.6313 | -871.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -19.08 | 105.96 | -31.70 | 124.09 | 0.6019 | -690.0 | -636.1 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -20.53 | 105.63 | -32.03 | 125.93 | 0.6156 | -701.0 | -562.6 | |
| 1.79 | -69.00 | 1.14 | -69.00 | -22.23 | 105.17 | -32.49 | 127.91 | 0.6325 | -832.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -19.27 | 105.84 | -31.82 | 124.28 | 0.6046 | -712.0 | -675.9 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -20.37 | 105.55 | -32.10 | 125.65 | 0.6154 | -658.0 | -448.8 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -21.78 | 105.17 | -32.48 | 127.30 | 0.6293 | -843.0 | -671.0 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -23.19 | 104.76 | -32.90 | 128.89 | 0.6438 | -131.0 | -130.3 | |
| 2.13 | -69.00 | 1.37 | -69.00 | -22.81 | 104.82 | -32.83 | 128.43 | 0.6403 | -824.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -20.66 | 105.26 | -32.40 | 125.83 | 0.6206 | -714.0 | -548.2 | |
| 2.31 | 7.00 | 1.47 | 4.45 | -21.65 | 104.94 | -32.72 | 126.96 | 0.6310 | -936.5 | -706.9 | |
| 2.31 | -69.00 | 1.47 | -69.00 | -22.04 | 104.84 | -32.82 | 127.40 | 0.6347 | -898.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -20.82 | 105.03 | -32.62 | 125.88 | 0.6242 | -781.0 | -687.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -18.77 | 105.51 | -32.15 | 123.30 | 0.6051 | -675.0 | -561.6 | |
| 15.20 | -69.00 | 9.76 | -69.00 | -21.94 | 104.41 | -33.25 | 126.95 | 0.6387 | -986.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -18.14 | 105.31 | -32.35 | 122.23 | 0.6034 | -689.0 | -565.1 | |
| 3.50 | -69.00 | 2.27 | -69.00 | -22.72 | 104.04 | -33.61 | 127.72 | 0.6479 | -644.1 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.86 | -21.46 | 104.34 | -33.31 | 126.26 | 0.6362 | -921.0 | -752.5 | |
| 4.01 | -69.00 | 2.56 | -69.00 | -20.89 | 104.45 | -33.21 | 125.54 | 0.6311 | -987.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -22.94 | 103.79 | -33.87 | 127.84 | 0.6522 | -705.0 | -506.7 | |
| 1.79 | -69.00 | 1.15 | -69.00 | -21.11 | 104.17 | -33.49 | 125.65 | 0.6358 | -947.5 | 999999 | |
| 35.78 | -69.00 | 23.14 | -69.00 | -21.69 | 103.63 | -34.03 | 126.05 | 0.6454 | -970.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -18.49 | 104.34 | -33.32 | 122.06 | 0.6170 | -652.0 | -563.9 | |
| 1.28 | -69.00 | 0.82 | -69.00 | -20.20 | 103.60 | -34.06 | 123.98 | 0.6361 | -903.5 | 999999 | |
| 0.77 | -69.00 | 0.50 | -69.00 | -21.12 | 103.32 | -34.33 | 125.06 | 0.6451 | -697.8 | 999999 | |
| 1.96 | -69.00 | 1.27 | -69.00 | -20.77 | 103.34 | -34.32 | 124.59 | 0.6427 | -1175.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -19.85 | 103.46 | -34.20 | 123.39 | 0.6356 | -692.0 | -579.3 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -22.60 | 102.48 | -35.18 | 126.46 | 0.6636 | -315.0 | -239.7 | |
| 19.73 | -69.00 | 12.75 | -69.00 | -20.55 | 103.01 | -34.65 | 124.06 | 0.6449 | -919.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -19.89 | 103.14 | -34.51 | 123.23 | 0.6393 | -687.0 | -532.4 | |
| 0.00 | 1.96 | 0.00 | 1.29 | -21.00 | 102.08 | -35.58 | 124.06 | 0.6580 | -484.0 | -346.8 | |
| 0.00 | 0.51 | 0.00 | 0.34 | -20.43 | 101.80 | -35.85 | 123.10 | 0.6576 | -416.0 | -352.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
