SDO HMI 2011-12-03 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.63 | 684.92 | 56.90 | 346.27 | 7.92 | 128.92 | -8.19 | 44.47 | 0.1941 | 47.8 | 55.4 | |
|
previous
or next observation for the same group /

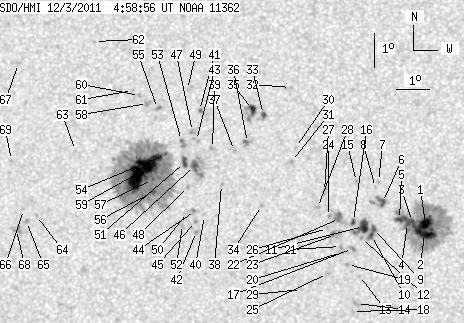

back to the solar disc SDO HMI 2011-12-03 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.31 | 173.54 | 4.64 | 86.56 | 6.92 | 134.42 | -2.69 | 23.16 | 0.1192 | -1444.7 | -507.4 | |
| 11.70 | -1.00 | 5.83 | -1.00 | 6.62 | 134.39 | -2.72 | 24.42 | 0.1147 | -1450.3 | 999999 | |
| 1.28 | -1.00 | 0.64 | -1.00 | 6.97 | 134.03 | -3.08 | 25.86 | 0.1230 | -1138.9 | 999999 | |
| 1.62 | -1.00 | 0.81 | -1.00 | 6.92 | 133.88 | -3.23 | 27.15 | 0.1232 | -1147.8 | 999999 | |
| 2.22 | -1.00 | 1.11 | -1.00 | 7.03 | 133.64 | -3.47 | 28.39 | 0.1270 | -1043.3 | 999999 | |
| 2.99 | 10.33 | 1.49 | 5.17 | 7.54 | 133.13 | -3.98 | 29.86 | 0.1389 | -1066.7 | -759.7 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.16 | 133.00 | -4.11 | 28.47 | 0.1494 | -810.0 | -671.2 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 7.99 | 132.92 | -4.20 | 29.57 | 0.1475 | -760.0 | -595.5 | |
| 2.22 | 22.03 | 1.11 | 11.01 | 6.77 | 132.87 | -4.24 | 34.60 | 0.1300 | -1066.0 | -926.0 | |
| 1.28 | -9.00 | 0.64 | -9.00 | 6.56 | 132.81 | -4.30 | 35.90 | 0.1277 | -1210.3 | 999999 | |
| 9.39 | -9.00 | 4.69 | -9.00 | 6.83 | 132.57 | -4.54 | 36.17 | 0.1339 | -1155.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 6.47 | 132.51 | -4.60 | 38.16 | 0.1295 | -887.0 | -777.1 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 5.37 | 132.46 | -4.65 | 44.44 | 0.1158 | -883.0 | -659.0 | |
| 0.00 | 2.65 | 0.00 | 1.32 | 4.54 | 132.38 | -4.73 | 50.47 | 0.1071 | -822.0 | -843.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.16 | 132.34 | -4.77 | 32.17 | 0.1552 | 757.0 | 514.4 | |
| 2.14 | 2.65 | 1.07 | 1.32 | 6.97 | 132.27 | -4.84 | 37.26 | 0.1390 | -863.7 | -673.9 | |
| 0.00 | 3.16 | 0.00 | 1.58 | 6.17 | 132.25 | -4.86 | 41.23 | 0.1285 | -1155.0 | -876.0 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.30 | 132.26 | -4.85 | 52.91 | 0.1062 | -821.0 | -677.7 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 5.70 | 132.10 | -5.01 | 44.65 | 0.1242 | -1022.0 | -682.9 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 6.05 | 131.92 | -5.19 | 43.70 | 0.1308 | -844.0 | -724.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 6.23 | 131.89 | -5.22 | 42.94 | 0.1335 | -1030.0 | -895.4 | |
| 0.00 | 8.88 | 0.00 | 4.45 | 7.06 | 131.85 | -5.26 | 39.18 | 0.1447 | -1021.0 | -850.2 | |
| 0.00 | 7.52 | 0.00 | 3.76 | 6.59 | 131.73 | -5.38 | 41.98 | 0.1398 | -1014.0 | -867.1 | |
| 0.00 | 1.02 | 0.00 | 0.51 | 7.12 | 131.52 | -5.59 | 40.62 | 0.1492 | -770.0 | -688.6 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 5.43 | 131.51 | -5.60 | 49.39 | 0.1286 | -856.0 | -679.6 | |
| 0.00 | 2.22 | 0.00 | 1.11 | 6.76 | 131.49 | -5.62 | 42.38 | 0.1449 | -611.0 | -443.0 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 7.87 | 131.39 | -5.72 | 38.17 | 0.1605 | -672.0 | -745.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.39 | 131.19 | -5.92 | 41.09 | 0.1564 | -854.0 | -704.3 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 4.95 | 130.74 | -6.37 | 55.83 | 0.1343 | -870.0 | -672.8 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 9.18 | 130.50 | -6.61 | 37.48 | 0.1877 | -884.0 | -675.6 | |
| 0.00 | 2.05 | 0.00 | 1.03 | 8.76 | 130.38 | -6.73 | 39.37 | 0.1833 | -877.0 | -770.3 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 10.97 | 130.31 | -6.80 | 32.97 | 0.2146 | -870.0 | -642.4 | |
| 2.05 | 3.07 | 1.04 | 1.56 | 10.16 | 129.51 | -7.60 | 38.22 | 0.2114 | -1034.0 | -849.0 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 7.45 | 129.51 | -7.60 | 47.94 | 0.1776 | -1026.0 | -765.8 | |
| 4.61 | 12.81 | 2.34 | 6.50 | 10.31 | 129.17 | -7.94 | 38.98 | 0.2170 | -1008.1 | -716.6 | |
| 0.00 | 4.78 | 0.00 | 2.42 | 9.32 | 129.05 | -8.07 | 42.54 | 0.2057 | -1093.0 | -722.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 9.08 | 128.66 | -8.45 | 44.69 | 0.2074 | 793.0 | 635.4 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 8.07 | 128.29 | -8.82 | 49.60 | 0.2003 | 590.0 | 474.4 | |
| 0.00 | 2.31 | 0.00 | 1.17 | 9.14 | 127.99 | -9.12 | 46.64 | 0.2162 | 793.0 | 685.4 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 7.15 | 127.80 | -9.32 | 54.82 | 0.1974 | -575.0 | -412.5 | |
| 0.77 | 2.31 | 0.39 | 1.17 | 10.28 | 127.56 | -9.55 | 44.28 | 0.2348 | 923.0 | 825.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.67 | 127.56 | -9.55 | 57.49 | 0.1963 | -975.0 | -813.9 | |
| 0.00 | 2.56 | 0.00 | 1.30 | 9.38 | 127.50 | -9.61 | 47.32 | 0.2251 | 617.0 | 710.5 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 7.29 | 127.52 | -9.59 | 54.98 | 0.2027 | -684.0 | -550.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 6.97 | 127.53 | -9.58 | 56.32 | 0.1995 | -1018.0 | -742.4 | |
| 5.29 | 22.46 | 2.69 | 11.39 | 8.63 | 127.46 | -9.65 | 50.02 | 0.2173 | 1166.3 | 714.2 | |
| 0.00 | 2.82 | 0.00 | 1.43 | 9.65 | 127.37 | -9.74 | 46.82 | 0.2298 | 989.0 | 800.6 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 8.01 | 127.29 | -9.82 | 52.80 | 0.2130 | 985.0 | 779.9 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 10.91 | 127.18 | -9.93 | 43.55 | 0.2470 | 882.0 | 665.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.23 | 127.28 | -9.83 | 55.88 | 0.2056 | -512.0 | -465.7 | |
| 4.18 | 5.64 | 2.13 | 2.86 | 8.72 | 127.15 | -9.96 | 50.57 | 0.2223 | 1156.6 | 765.4 | |
| 0.00 | 3.67 | 0.00 | 1.86 | 6.88 | 127.14 | -9.97 | 57.73 | 0.2043 | -708.0 | -538.0 | |
| 1.11 | 3.76 | 0.56 | 1.91 | 9.38 | 127.04 | -10.07 | 48.63 | 0.2309 | 944.9 | 975.6 | |
| 1.28 | 324.35 | 0.65 | 165.25 | 8.96 | 126.57 | -10.54 | 51.32 | 0.2326 | 765.5 | 466.1 | |
| 0.00 | 2.56 | 0.00 | 1.31 | 10.34 | 126.28 | -10.83 | 47.67 | 0.2512 | 1060.0 | 801.9 | |
| 1.96 | -54.00 | 1.00 | -54.00 | 7.86 | 126.23 | -10.88 | 56.10 | 0.2262 | 858.2 | 999999 | |
| 1.20 | -54.00 | 0.61 | -54.00 | 8.21 | 126.19 | -10.92 | 54.89 | 0.2302 | 1188.5 | 999999 | |
| 0.00 | 3.25 | 0.00 | 1.66 | 10.49 | 125.97 | -11.14 | 48.02 | 0.2568 | 979.0 | 869.3 | |
| 46.03 | -54.00 | 23.46 | -54.00 | 8.48 | 125.88 | -11.23 | 54.68 | 0.2371 | 1484.7 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.05 | 10.73 | 125.71 | -11.40 | 47.95 | 0.2626 | 894.0 | 680.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 10.87 | 125.49 | -11.62 | 48.06 | 0.2671 | 802.0 | 549.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 12.35 | 124.25 | -12.86 | 46.96 | 0.2987 | 851.0 | 652.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 9.07 | 123.81 | -13.30 | 57.13 | 0.2717 | 830.0 | 664.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 7.13 | 122.68 | -14.43 | 65.39 | 0.2732 | 979.0 | 697.5 | |
| 0.00 | 2.56 | 0.00 | 1.32 | 6.96 | 122.38 | -14.73 | 66.42 | 0.2767 | 986.0 | 670.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.31 | 122.28 | -14.84 | 65.39 | 0.2806 | 736.0 | 560.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 11.68 | 121.92 | -15.19 | 53.24 | 0.3217 | 913.0 | 693.5 | |
| 0.00 | 6.32 | 0.00 | 3.26 | 6.72 | 122.08 | -15.03 | 67.63 | 0.2798 | 777.0 | 776.6 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 8.77 | 121.85 | -15.26 | 61.44 | 0.2975 | 789.0 | 675.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
