SDO HMI 2011-12-03 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.18 | 155.44 | 37.19 | 83.65 | 19.86 | 124.32 | -12.79 | 32.20 | 0.3921 | 29.0 | 192.4 | |
|
previous
or next observation for the same group /

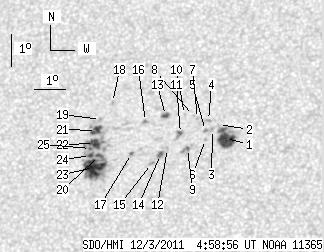

back to the solar disc SDO HMI 2011-12-03 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.07 | 29.55 | 10.70 | 15.77 | 20.15 | 127.16 | -9.95 | 25.90 | 0.3729 | -1074.6 | -498.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.59 | 126.91 | -10.20 | 25.92 | 0.3810 | -623.0 | -538.8 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 20.44 | 126.73 | -10.38 | 26.51 | 0.3801 | -701.0 | -638.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 20.72 | 126.58 | -10.53 | 26.48 | 0.3852 | -835.0 | -636.3 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 20.40 | 126.50 | -10.61 | 27.03 | 0.3812 | -891.0 | -774.0 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 20.12 | 126.52 | -10.59 | 27.35 | 0.3771 | -769.0 | -534.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 20.78 | 126.22 | -10.89 | 27.16 | 0.3887 | -773.0 | -622.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 20.87 | 126.08 | -11.03 | 27.33 | 0.3910 | -739.0 | -551.5 | |
| 1.11 | 4.53 | 0.59 | 2.42 | 19.84 | 125.97 | -11.14 | 28.94 | 0.3774 | -935.3 | -634.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 20.91 | 125.79 | -11.32 | 27.89 | 0.3936 | -679.0 | -507.6 | |
| 1.11 | 4.27 | 0.60 | 2.29 | 20.31 | 125.71 | -11.40 | 28.85 | 0.3859 | -791.3 | -551.2 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 19.84 | 125.33 | -11.78 | 30.30 | 0.3825 | -857.0 | -641.4 | |
| 2.82 | 3.50 | 1.52 | 1.89 | 20.87 | 125.18 | -11.93 | 29.18 | 0.3979 | -772.9 | -585.4 | |
| 2.73 | 2.82 | 1.46 | 1.51 | 19.65 | 125.12 | -12.00 | 31.00 | 0.3817 | -995.1 | -1017.0 | |
| 0.00 | 2.22 | 0.00 | 1.19 | 19.37 | 124.85 | -12.26 | 31.96 | 0.3801 | -943.0 | -691.1 | |
| 0.00 | 2.31 | 0.00 | 1.25 | 20.68 | 124.55 | -12.56 | 30.69 | 0.4003 | -908.0 | -716.5 | |
| 0.85 | 1.45 | 0.46 | 0.78 | 19.68 | 124.18 | -12.93 | 32.85 | 0.3901 | 694.3 | 657.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 21.28 | 123.42 | -13.69 | 32.02 | 0.4176 | 791.0 | 674.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 20.74 | 123.08 | -14.03 | 33.40 | 0.4136 | 84.0 | 235.8 | |
| 2.48 | 91.04 | 1.34 | 49.15 | 19.61 | 123.15 | -13.96 | 34.94 | 0.3985 | 995.5 | 666.4 | |
| 5.98 | -20.00 | 3.24 | -20.00 | 20.40 | 122.99 | -14.13 | 34.08 | 0.4100 | 965.7 | 999999 | |
| 6.92 | -20.00 | 3.74 | -20.00 | 19.99 | 122.96 | -14.15 | 34.73 | 0.4050 | 980.9 | 999999 | |
| 22.29 | -20.00 | 12.01 | -20.00 | 19.24 | 122.99 | -14.12 | 35.82 | 0.3952 | 1151.0 | 999999 | |
| 1.88 | -20.00 | 1.02 | -20.00 | 19.61 | 122.86 | -14.25 | 35.48 | 0.4011 | 1009.0 | 999999 | |
| 0.94 | -20.00 | 0.51 | -20.00 | 19.83 | 122.84 | -14.27 | 35.18 | 0.4041 | 941.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
