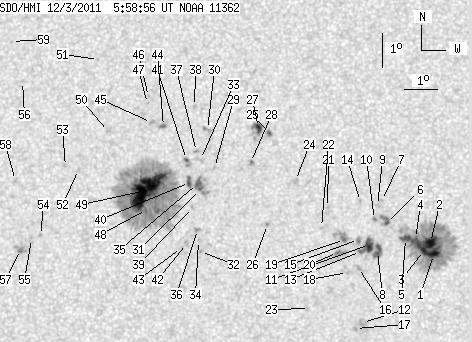

SDO HMI 2011-12-03 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.04 | 665.45 | 56.07 | 336.02 | 7.94 | 128.82 | -7.74 | 42.32 | 0.1895 | 204.7 | 44.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.53 | 173.88 | 2.26 | 86.69 | 6.55 | 134.53 | -2.04 | 18.93 | 0.1093 | -1530.6 | -553.9 | |
| 7.17 | -1.00 | 3.58 | -1.00 | 6.91 | 134.44 | -2.13 | 18.66 | 0.1157 | -1494.4 | 999999 | |
| 1.79 | -1.00 | 0.89 | -1.00 | 6.67 | 134.23 | -2.33 | 21.07 | 0.1130 | -1432.9 | 999999 | |
| 0.26 | -1.00 | 0.13 | -1.00 | 7.03 | 133.99 | -2.57 | 21.85 | 0.1203 | -956.0 | 999999 | |
| 5.21 | -1.00 | 2.60 | -1.00 | 7.03 | 133.69 | -2.87 | 24.10 | 0.1224 | -1052.6 | 999999 | |
| 1.37 | 6.92 | 0.68 | 3.46 | 7.50 | 133.12 | -3.44 | 26.49 | 0.1341 | -1135.4 | -861.1 | |
| 0.00 | 0.77 | 0.00 | 0.38 | 8.16 | 132.97 | -3.60 | 25.40 | 0.1454 | -701.0 | -570.6 | |
| 6.75 | 25.36 | 3.37 | 12.66 | 6.64 | 132.86 | -3.70 | 31.56 | 0.1232 | -1041.6 | -854.1 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 8.01 | 132.85 | -3.71 | 26.59 | 0.1440 | -564.0 | -419.1 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.59 | 132.76 | -3.80 | 28.51 | 0.1383 | -964.0 | -831.3 | |
| 7.69 | -8.00 | 3.84 | -8.00 | 6.85 | 132.62 | -3.94 | 32.29 | 0.1284 | -1156.1 | 999999 | |
| 0.00 | 3.59 | 0.00 | 1.79 | 4.53 | 132.43 | -4.14 | 46.65 | 0.0993 | -468.0 | -738.1 | |
| 1.54 | -8.00 | 0.77 | -8.00 | 6.64 | 132.35 | -4.21 | 34.92 | 0.1280 | -909.1 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 8.13 | 132.34 | -4.22 | 29.25 | 0.1500 | 826.0 | 642.9 | |
| 0.00 | 3.33 | 0.00 | 1.66 | 7.00 | 132.29 | -4.27 | 33.76 | 0.1337 | -945.0 | -800.1 | |
| 0.00 | 2.73 | 0.00 | 1.36 | 6.16 | 132.30 | -4.27 | 37.55 | 0.1219 | -1053.0 | -818.4 | |
| 0.00 | 1.79 | 0.00 | 0.89 | 4.36 | 132.22 | -4.34 | 49.38 | 0.0999 | -969.0 | -746.7 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.02 | 131.97 | -4.59 | 40.38 | 0.1235 | -887.0 | -724.1 | |
| 1.54 | 10.08 | 0.77 | 5.04 | 7.00 | 131.87 | -4.69 | 36.26 | 0.1379 | -1092.8 | -786.8 | |
| 1.37 | 5.21 | 0.68 | 2.60 | 6.61 | 131.67 | -4.90 | 39.20 | 0.1348 | -902.5 | -928.6 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 7.95 | 131.35 | -5.21 | 35.27 | 0.1565 | -845.0 | -727.2 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 7.35 | 131.18 | -5.38 | 38.53 | 0.1501 | -816.0 | -675.1 | |
| 0.00 | 0.34 | 0.00 | 0.17 | 4.95 | 130.85 | -5.72 | 52.89 | 0.1250 | -372.0 | -208.5 | |
| 0.00 | 3.33 | 0.00 | 1.68 | 8.75 | 130.38 | -6.18 | 37.03 | 0.1775 | -678.0 | -680.7 | |
| 1.71 | 2.99 | 0.86 | 1.51 | 10.19 | 129.57 | -6.99 | 35.86 | 0.2055 | -1045.0 | -928.9 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 7.44 | 129.56 | -7.00 | 45.60 | 0.1700 | -1024.0 | -761.3 | |
| 4.95 | 14.26 | 2.51 | 7.22 | 10.33 | 129.23 | -7.33 | 36.70 | 0.2110 | -986.1 | -659.0 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 9.29 | 129.02 | -7.55 | 40.77 | 0.1995 | -930.0 | -854.4 | |
| 0.00 | 0.60 | 0.00 | 0.30 | 9.14 | 127.93 | -8.63 | 45.08 | 0.2103 | 905.0 | 676.4 | |
| 0.00 | 2.56 | 0.00 | 1.30 | 10.27 | 127.69 | -8.88 | 42.21 | 0.2270 | 852.0 | 859.1 | |
| 0.60 | 23.74 | 0.30 | 12.02 | 8.48 | 127.52 | -9.04 | 48.72 | 0.2078 | 1133.9 | 781.1 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 6.63 | 127.56 | -9.00 | 56.09 | 0.1881 | -1056.0 | -910.8 | |
| 0.00 | 3.25 | 0.00 | 1.65 | 9.37 | 127.50 | -9.06 | 45.66 | 0.2183 | 832.0 | 676.4 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 6.96 | 127.50 | -9.07 | 54.86 | 0.1922 | -1078.0 | -809.5 | |
| 3.76 | -31.00 | 1.90 | -31.00 | 8.66 | 127.43 | -9.14 | 48.37 | 0.2110 | 1166.2 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.51 | 7.29 | 127.46 | -9.11 | 53.58 | 0.1960 | -850.0 | -635.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 9.61 | 127.37 | -9.19 | 45.27 | 0.2227 | 997.0 | 845.1 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 10.96 | 127.27 | -9.29 | 41.49 | 0.2404 | 982.0 | 775.8 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 7.94 | 127.29 | -9.27 | 51.45 | 0.2050 | 896.0 | 714.4 | |
| 4.01 | -31.00 | 2.04 | -31.00 | 8.69 | 127.19 | -9.38 | 49.00 | 0.2144 | 1098.5 | 999999 | |
| 1.37 | 4.53 | 0.69 | 2.30 | 9.37 | 127.08 | -9.49 | 46.96 | 0.2236 | 920.4 | 879.2 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 6.87 | 127.14 | -9.43 | 56.27 | 0.1965 | -765.0 | -639.8 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 6.75 | 126.99 | -9.58 | 57.19 | 0.1975 | -781.0 | -667.3 | |
| 1.79 | 2.73 | 0.92 | 1.40 | 10.36 | 126.35 | -10.22 | 45.93 | 0.2440 | 994.0 | 747.5 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 10.48 | 125.98 | -10.59 | 46.58 | 0.2499 | 1097.0 | 928.5 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 11.26 | 125.86 | -10.71 | 44.66 | 0.2604 | 741.0 | 588.5 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 11.05 | 125.83 | -10.73 | 45.31 | 0.2582 | 713.0 | 553.7 | |
| 0.34 | 329.31 | 0.17 | 167.45 | 7.88 | 125.90 | -10.66 | 55.46 | 0.2235 | 686.8 | 448.0 | |
| 53.29 | -48.00 | 27.11 | -48.00 | 8.45 | 125.86 | -10.71 | 53.51 | 0.2296 | 1427.5 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 10.21 | 124.67 | -11.90 | 50.65 | 0.2636 | 879.0 | 695.3 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 12.37 | 124.27 | -12.30 | 45.63 | 0.2923 | 726.0 | 564.4 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 9.07 | 123.79 | -12.77 | 56.09 | 0.2643 | 853.0 | 709.9 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 9.16 | 123.39 | -13.18 | 56.61 | 0.2707 | 617.0 | 545.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 7.10 | 122.69 | -13.87 | 64.65 | 0.2645 | 953.0 | 723.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 7.01 | 122.42 | -14.15 | 65.38 | 0.2681 | 793.0 | 610.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 11.70 | 121.94 | -14.62 | 52.15 | 0.3145 | 858.0 | 598.9 | |
| 0.00 | 6.58 | 0.00 | 3.38 | 6.68 | 122.09 | -14.47 | 66.97 | 0.2710 | 916.0 | 817.8 | |
| 0.00 | 1.96 | 0.00 | 1.02 | 8.73 | 121.86 | -14.70 | 60.64 | 0.2891 | 814.0 | 676.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 12.91 | 121.53 | -15.04 | 49.93 | 0.3320 | 739.0 | 539.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
