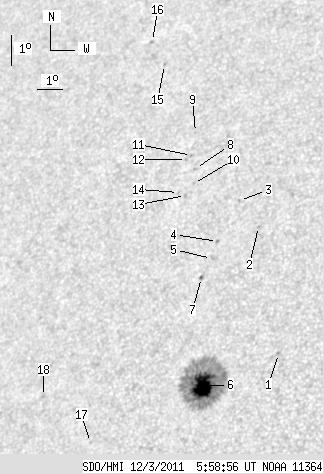

SDO HMI 2011-12-03 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.67 | 185.99 | 17.02 | 115.13 | 19.53 | 104.35 | -32.21 | 57.13 | 0.6008 | -727.3 | -348.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.67 | 20.02 | 107.11 | -29.45 | 54.21 | 0.5718 | 581.0 | 459.9 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 24.05 | 105.41 | -31.15 | 49.84 | 0.6205 | -628.0 | -556.7 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 24.89 | 104.45 | -32.12 | 49.48 | 0.6367 | -747.0 | -588.7 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 23.56 | 103.98 | -32.58 | 51.62 | 0.6320 | -650.0 | -554.8 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 23.01 | 103.91 | -32.66 | 52.42 | 0.6290 | -581.0 | -591.1 | |
| 27.24 | 168.75 | 16.75 | 103.83 | 18.98 | 104.55 | -32.01 | 57.76 | 0.5949 | -1146.7 | -350.8 | |
| 0.43 | 1.11 | 0.27 | 0.70 | 22.41 | 103.69 | -32.88 | 53.42 | 0.6272 | 602.0 | 508.9 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 25.92 | 102.40 | -34.16 | 49.67 | 0.6648 | -809.0 | -675.1 | |
| 0.00 | 0.51 | 0.00 | 0.34 | 27.10 | 102.00 | -34.57 | 48.47 | 0.6770 | -619.0 | -556.8 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 25.43 | 102.49 | -34.08 | 50.24 | 0.6606 | -683.0 | -522.7 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 26.35 | 102.10 | -34.46 | 49.35 | 0.6708 | -548.0 | -550.9 | |
| 0.00 | 1.02 | 0.00 | 0.68 | 26.21 | 101.95 | -34.62 | 49.63 | 0.6714 | -564.0 | -433.9 | |
| 0.00 | 1.28 | 0.00 | 0.84 | 25.04 | 102.30 | -34.27 | 50.89 | 0.6599 | -567.0 | -460.4 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 25.13 | 101.99 | -34.58 | 50.98 | 0.6636 | -452.0 | -344.5 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 29.37 | 99.84 | -36.73 | 47.20 | 0.7126 | -568.0 | -463.0 | |
| 0.00 | 1.45 | 0.00 | 1.04 | 30.14 | 98.99 | -37.58 | 46.85 | 0.7252 | -610.0 | -463.9 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 17.22 | 100.74 | -35.83 | 62.81 | 0.6309 | 610.0 | 444.1 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 18.63 | 98.56 | -38.01 | 61.94 | 0.6635 | 534.0 | 466.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
