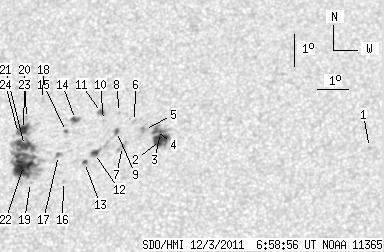

SDO HMI 2011-12-03 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.40 | 173.97 | 44.17 | 93.22 | 19.79 | 124.27 | -11.75 | 30.14 | 0.3830 | 278.9 | 79.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.72 | 19.83 | 133.87 | -2.15 | 6.13 | 0.3321 | 682.0 | 584.5 | |
| 12.21 | 27.67 | 6.49 | 14.72 | 20.04 | 127.26 | -8.76 | 23.29 | 0.3634 | -1157.5 | -693.0 | |
| 0.85 | -2.00 | 0.45 | -2.00 | 20.29 | 127.25 | -8.77 | 23.04 | 0.3673 | -1037.2 | 999999 | |
| 2.39 | -2.00 | 1.27 | -2.00 | 20.36 | 127.08 | -8.94 | 23.34 | 0.3692 | -862.0 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.82 | 20.39 | 126.73 | -9.29 | 24.12 | 0.3720 | -1019.0 | -780.1 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 20.64 | 126.39 | -9.63 | 24.58 | 0.3779 | -773.0 | -656.9 | |
| 0.00 | 5.04 | 0.00 | 2.68 | 19.85 | 126.06 | -9.96 | 26.29 | 0.3689 | -1039.0 | -841.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 20.92 | 125.89 | -10.13 | 25.34 | 0.3854 | -689.0 | -550.9 | |
| 1.71 | 3.67 | 0.91 | 1.96 | 20.32 | 125.84 | -10.18 | 26.19 | 0.3772 | -915.7 | -711.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 20.67 | 125.40 | -10.62 | 26.72 | 0.3853 | -823.0 | -640.0 | |
| 2.22 | 3.33 | 1.19 | 1.79 | 20.92 | 125.31 | -10.71 | 26.58 | 0.3895 | -845.5 | -743.8 | |
| 3.67 | 9.82 | 1.96 | 5.24 | 19.63 | 125.18 | -10.84 | 28.54 | 0.3723 | -988.6 | -535.8 | |
| 1.54 | 2.05 | 0.82 | 1.09 | 19.35 | 124.88 | -11.14 | 29.59 | 0.3708 | -790.3 | -793.0 | |
| 2.56 | 4.36 | 1.38 | 2.34 | 20.70 | 124.49 | -11.53 | 28.57 | 0.3925 | -827.6 | -757.3 | |
| 0.94 | 1.45 | 0.50 | 0.78 | 20.32 | 124.23 | -11.79 | 29.61 | 0.3893 | -601.2 | -646.7 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 18.76 | 124.25 | -11.77 | 31.82 | 0.3679 | 770.0 | 550.9 | |
| 0.00 | 3.59 | 0.00 | 1.92 | 19.57 | 124.03 | -11.99 | 31.08 | 0.3807 | 889.0 | 647.5 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 21.33 | 123.37 | -12.65 | 29.98 | 0.4099 | 714.0 | 532.7 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 18.72 | 123.20 | -12.82 | 34.07 | 0.3767 | 754.0 | 595.7 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 20.73 | 122.91 | -13.11 | 31.69 | 0.4057 | 530.0 | 426.4 | |
| 13.83 | 98.55 | 7.45 | 52.97 | 19.88 | 122.92 | -13.10 | 32.88 | 0.3944 | 968.2 | 606.6 | |
| 34.76 | -21.00 | 18.65 | -21.00 | 19.25 | 122.93 | -13.09 | 33.78 | 0.3861 | 1112.5 | 999999 | |
| 5.21 | -21.00 | 2.82 | -21.00 | 20.38 | 122.84 | -13.18 | 32.30 | 0.4017 | 987.5 | 999999 | |
| 0.51 | -21.00 | 0.28 | -21.00 | 20.25 | 122.69 | -13.33 | 32.77 | 0.4013 | 923.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
