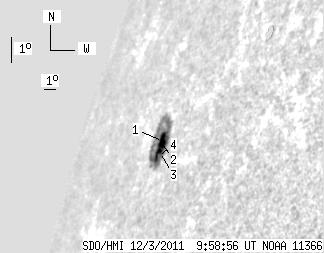

SDO HMI 2011-12-03 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.29 | 62.07 | 14.22 | 107.90 | 17.20 | 61.77 | -72.61 | 72.20 | 0.9588 | -263.7 | 14.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.76 | 62.07 | 6.41 | 107.90 | 17.29 | 61.90 | -72.48 | 72.10 | 0.9582 | -433.8 | 14.1 | |
| 2.31 | -1.00 | 4.00 | -1.00 | 17.32 | 61.56 | -72.83 | 72.10 | 0.9598 | 205.0 | 999999 | |
| 1.62 | -1.00 | 2.78 | -1.00 | 16.98 | 61.79 | -72.59 | 72.43 | 0.9585 | -489.3 | 999999 | |
| 0.60 | -1.00 | 1.03 | -1.00 | 16.82 | 61.73 | -72.65 | 72.60 | 0.9588 | -416.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
