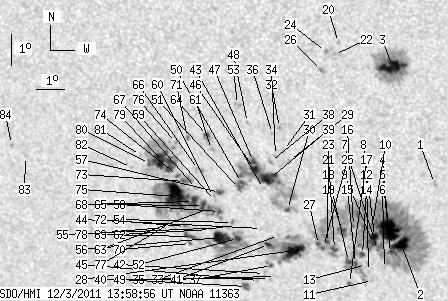

SDO HMI 2011-12-03 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 256.98 | 1198.88 | 153.03 | 709.32 | -21.94 | 107.51 | -24.68 | 134.80 | 0.5473 | -85.5 | 74.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.21 | -21.14 | 112.33 | -19.86 | 139.42 | 0.4891 | 793.0 | 611.9 | |
| 13.91 | 505.50 | 8.08 | 294.75 | -23.10 | 110.91 | -21.29 | 140.25 | 0.5243 | 1197.5 | 425.5 | |
| 20.48 | 92.00 | 11.42 | 51.29 | -17.46 | 111.41 | -20.79 | 132.44 | 0.4607 | 1173.9 | 469.9 | |
| 0.34 | -2.00 | 0.20 | -2.00 | -23.39 | 110.48 | -21.72 | 140.09 | 0.5315 | 777.2 | 999999 | |
| 30.30 | -2.00 | 17.58 | -2.00 | -22.65 | 110.53 | -21.66 | 139.17 | 0.5231 | 1277.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -23.88 | 110.18 | -22.01 | 140.37 | 0.5395 | -186.0 | -111.2 | |
| 0.34 | -2.00 | 0.20 | -2.00 | -23.26 | 110.05 | -22.15 | 139.40 | 0.5343 | 631.5 | 999999 | |
| 4.61 | -2.00 | 2.69 | -2.00 | -22.85 | 110.02 | -22.18 | 138.80 | 0.5302 | 1047.6 | 999999 | |
| 2.30 | -2.00 | 1.35 | -2.00 | -23.07 | 109.94 | -22.25 | 139.01 | 0.5333 | 823.6 | 999999 | |
| 1.37 | -2.00 | 0.79 | -2.00 | -22.46 | 110.01 | -22.18 | 138.27 | 0.5262 | 828.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -24.27 | 109.69 | -22.50 | 140.28 | 0.5482 | 659.0 | 476.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -23.98 | 109.60 | -22.59 | 139.80 | 0.5460 | 695.0 | 609.0 | |
| 0.00 | 1.88 | 0.00 | 1.11 | -23.75 | 109.58 | -22.62 | 139.48 | 0.5439 | 658.0 | 502.9 | |
| 2.99 | -2.00 | 1.76 | -2.00 | -23.43 | 109.50 | -22.70 | 138.95 | 0.5413 | 702.8 | 999999 | |
| 1.79 | -2.00 | 1.06 | -2.00 | -23.72 | 109.20 | -23.00 | 138.99 | 0.5472 | 770.3 | 999999 | |
| 1.11 | -2.00 | 0.65 | -2.00 | -22.49 | 109.35 | -22.84 | 137.51 | 0.5332 | 708.2 | 999999 | |
| 1.37 | 1.62 | 0.81 | 0.97 | -24.37 | 108.86 | -23.33 | 139.44 | 0.5571 | 560.0 | 550.7 | |
| 2.99 | -2.00 | 1.77 | -2.00 | -23.66 | 108.96 | -23.23 | 138.63 | 0.5488 | 565.9 | 999999 | |
| 5.80 | -2.00 | 3.41 | -2.00 | -22.69 | 108.93 | -23.26 | 137.29 | 0.5394 | 699.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -16.73 | 109.70 | -22.49 | 129.05 | 0.4737 | 862.0 | 661.0 | |
| 3.33 | -2.00 | 1.97 | -2.00 | -23.24 | 108.55 | -23.64 | 137.60 | 0.5487 | 590.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -17.10 | 109.52 | -22.67 | 129.47 | 0.4793 | 724.0 | 576.3 | |
| 1.71 | -2.00 | 1.01 | -2.00 | -23.05 | 108.34 | -23.85 | 137.10 | 0.5488 | 629.4 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -17.01 | 109.23 | -22.96 | 128.98 | 0.4819 | 703.0 | 649.8 | |
| 0.26 | -2.00 | 0.15 | -2.00 | -23.18 | 108.17 | -24.02 | 137.09 | 0.5517 | 136.3 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.26 | -17.60 | 109.02 | -23.18 | 129.72 | 0.4898 | 761.0 | 612.1 | |
| 0.94 | -2.00 | 0.56 | -2.00 | -23.11 | 108.01 | -24.18 | 136.82 | 0.5528 | 374.5 | 999999 | |
| 14.51 | 87.22 | 8.68 | 52.29 | -23.31 | 107.12 | -25.07 | 136.11 | 0.5636 | 820.0 | -95.7 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -20.43 | 107.49 | -24.71 | 132.44 | 0.5329 | -706.0 | -591.3 | |
| 1.88 | 97.12 | 1.11 | 57.45 | -21.99 | 107.13 | -25.06 | 134.31 | 0.5511 | 663.5 | -264.6 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -20.11 | 107.33 | -24.86 | 131.80 | 0.5317 | -692.0 | -637.7 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -19.39 | 107.31 | -24.88 | 130.68 | 0.5254 | -917.0 | -812.1 | |
| 0.00 | 1.79 | 0.00 | 1.07 | -22.83 | 106.65 | -25.54 | 134.96 | 0.5638 | -655.0 | -397.5 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -20.27 | 107.03 | -25.17 | 131.71 | 0.5365 | -806.0 | -675.2 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -24.16 | 106.26 | -25.93 | 136.33 | 0.5801 | 475.0 | 373.8 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -19.58 | 107.04 | -25.15 | 130.68 | 0.5302 | -607.0 | -551.2 | |
| 1.45 | 3.58 | 0.88 | 2.17 | -23.80 | 106.20 | -26.00 | 135.80 | 0.5774 | 489.6 | 200.6 | |
| 0.00 | 2.56 | 0.00 | 1.50 | -20.47 | 106.82 | -25.38 | 131.77 | 0.5405 | -692.0 | -515.8 | |
| 13.31 | -30.00 | 7.86 | -30.00 | -21.01 | 106.68 | -25.51 | 132.42 | 0.5468 | -1021.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -24.23 | 106.03 | -26.16 | 136.18 | 0.5830 | 621.0 | 550.9 | |
| 2.39 | -28.00 | 1.44 | -28.00 | -23.12 | 106.23 | -25.96 | 134.92 | 0.5708 | -834.8 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.19 | -24.06 | 105.89 | -26.31 | 135.82 | 0.5829 | 404.0 | 403.8 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -21.33 | 106.41 | -25.78 | 132.60 | 0.5526 | -636.0 | -476.4 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -22.61 | 106.09 | -26.10 | 134.07 | 0.5676 | -732.0 | -550.2 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -24.29 | 105.62 | -26.58 | 135.85 | 0.5877 | 633.0 | 547.7 | |
| 3.50 | -30.00 | 2.07 | -30.00 | -20.69 | 106.22 | -25.98 | 131.48 | 0.5491 | 627.1 | 999999 | |
| 2.99 | -30.00 | 1.76 | -30.00 | -20.47 | 106.22 | -25.97 | 131.16 | 0.5471 | 869.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -19.24 | 106.23 | -25.96 | 129.32 | 0.5364 | -826.0 | -679.5 | |
| 4.10 | 5.12 | 2.52 | 3.15 | -24.49 | 105.14 | -27.06 | 135.63 | 0.5943 | 660.7 | 534.0 | |
| 1.11 | 8.88 | 0.66 | 5.30 | -21.14 | 105.67 | -26.52 | 131.58 | 0.5590 | -875.7 | -818.0 | |
| 1.71 | -50.00 | 1.02 | -50.00 | -21.33 | 105.56 | -26.63 | 131.75 | 0.5618 | -824.7 | 999999 | |
| 3.50 | 72.37 | 2.12 | 44.15 | -22.94 | 105.16 | -27.03 | 133.59 | 0.5801 | -1178.4 | -411.0 | |
| 0.00 | 2.73 | 0.00 | 1.60 | -18.68 | 105.98 | -26.22 | 128.19 | 0.5346 | -854.0 | -768.1 | |
| 0.00 | 1.79 | 0.00 | 1.08 | -22.42 | 105.09 | -27.10 | 132.81 | 0.5763 | -940.0 | -760.4 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -22.58 | 104.88 | -27.32 | 132.83 | 0.5800 | -971.0 | -773.0 | |
| 14.68 | -52.00 | 8.96 | -52.00 | -22.91 | 104.55 | -27.64 | 132.96 | 0.5862 | -1046.7 | 999999 | |
| 2.90 | 5.55 | 1.75 | 3.34 | -21.46 | 104.82 | -27.37 | 131.21 | 0.5709 | -983.0 | -780.4 | |
| 1.96 | 242.64 | 1.19 | 148.15 | -22.07 | 104.70 | -27.50 | 131.94 | 0.5775 | -1015.5 | -400.0 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -21.72 | 104.63 | -27.57 | 131.38 | 0.5752 | -742.0 | -652.9 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -21.59 | 104.58 | -27.61 | 131.16 | 0.5746 | -713.0 | -658.2 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -20.10 | 104.81 | -27.39 | 129.21 | 0.5597 | -199.0 | -205.0 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -22.65 | 104.25 | -27.95 | 132.32 | 0.5872 | -719.0 | -566.0 | |
| 2.56 | -58.00 | 1.55 | -58.00 | -21.98 | 104.32 | -27.87 | 131.45 | 0.5807 | -977.6 | 999999 | |
| 2.13 | 6.06 | 1.27 | 3.61 | -19.66 | 104.75 | -27.44 | 128.50 | 0.5568 | -977.3 | -749.8 | |
| 4.61 | -58.00 | 2.80 | -58.00 | -21.88 | 104.16 | -28.03 | 131.17 | 0.5816 | -1025.8 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.85 | -20.73 | 104.22 | -27.97 | 129.59 | 0.5715 | -865.0 | -797.5 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -21.34 | 104.02 | -28.17 | 130.28 | 0.5786 | -944.0 | -731.8 | |
| 7.34 | -58.00 | 4.47 | -58.00 | -21.76 | 103.83 | -28.37 | 130.68 | 0.5842 | -1011.9 | 999999 | |
| 6.06 | 8.36 | 3.73 | 5.15 | -22.88 | 103.50 | -28.69 | 131.94 | 0.5969 | -674.7 | -452.1 | |
| 0.43 | 1.54 | 0.26 | 0.95 | -23.11 | 103.41 | -28.78 | 132.16 | 0.5997 | -643.4 | -565.1 | |
| 0.51 | 2.13 | 0.31 | 1.28 | -19.72 | 104.03 | -28.17 | 127.93 | 0.5656 | -850.0 | -667.2 | |
| 1.02 | 3.50 | 0.63 | 2.15 | -22.56 | 103.36 | -28.84 | 131.37 | 0.5958 | -572.6 | -483.9 | |
| 1.79 | -58.00 | 1.09 | -58.00 | -21.12 | 103.64 | -28.56 | 129.61 | 0.5810 | -1107.1 | 999999 | |
| 1.19 | -58.00 | 0.73 | -58.00 | -20.93 | 103.42 | -28.77 | 129.15 | 0.5819 | -914.3 | 999999 | |
| 37.30 | -58.00 | 22.82 | -58.00 | -21.60 | 103.24 | -28.95 | 129.93 | 0.5892 | -942.4 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -19.88 | 103.60 | -28.59 | 127.78 | 0.5717 | -892.0 | -731.4 | |
| 0.00 | 2.48 | 0.00 | 1.53 | -22.47 | 102.79 | -29.40 | 130.73 | 0.6010 | -469.0 | -407.2 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -22.60 | 102.58 | -29.62 | 130.72 | 0.6043 | -424.0 | -366.4 | |
| 25.26 | -58.00 | 15.37 | -58.00 | -20.49 | 103.01 | -29.18 | 128.14 | 0.5830 | -994.7 | 999999 | |
| 0.85 | -58.00 | 0.52 | -58.00 | -20.55 | 102.49 | -29.71 | 127.79 | 0.5894 | -538.8 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -20.30 | 102.22 | -29.98 | 127.19 | 0.5905 | -516.0 | -417.9 | |
| 0.00 | 1.19 | 0.00 | 0.74 | -20.68 | 101.80 | -30.39 | 127.40 | 0.5980 | -560.0 | -425.7 | |
| 0.00 | 0.51 | 0.00 | 0.33 | -20.36 | 97.91 | -34.28 | 124.00 | 0.6393 | -687.0 | -580.7 | |
| 0.00 | 1.19 | 0.00 | 0.77 | -19.99 | 97.47 | -34.72 | 123.18 | 0.6419 | -636.0 | -520.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
