SDO HMI 2011-12-03 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 261.58 | 1223.54 | 154.58 | 720.60 | -21.86 | 107.52 | -24.12 | 135.34 | 0.5408 | -58.7 | 55.9 | |
|
previous
or next observation for the same group /

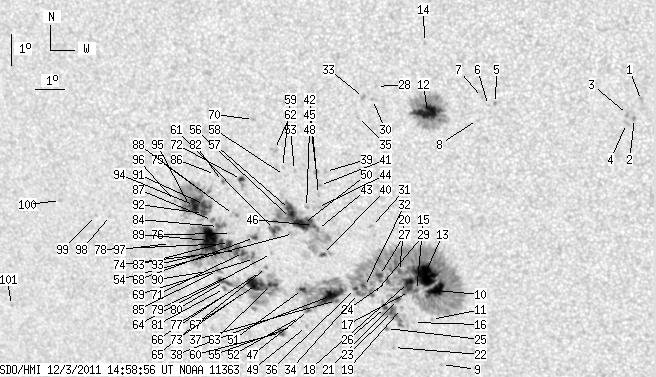

back to the solar disc SDO HMI 2011-12-03 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.96 | -17.10 | 118.31 | -13.33 | 144.04 | 0.3770 | -857.0 | -724.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -17.66 | 118.05 | -13.60 | 144.42 | 0.3867 | -963.0 | -798.3 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -17.53 | 117.83 | -13.81 | 143.81 | 0.3871 | -1000.0 | -830.5 | |
| 0.00 | 2.56 | 0.00 | 1.38 | -17.81 | 117.78 | -13.86 | 144.15 | 0.3912 | -836.0 | -610.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.20 | 113.61 | -18.03 | 135.93 | 0.4269 | 852.0 | 616.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -17.27 | 113.38 | -18.27 | 135.68 | 0.4302 | 766.0 | 557.6 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -17.02 | 113.21 | -18.44 | 134.99 | 0.4294 | 777.0 | 585.2 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -17.70 | 112.97 | -18.67 | 135.81 | 0.4394 | 404.0 | 348.0 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -25.54 | 110.62 | -21.02 | 143.67 | 0.5485 | 664.0 | 526.6 | |
| 12.97 | 454.42 | 7.51 | 263.64 | -23.13 | 110.83 | -20.81 | 140.89 | 0.5201 | 1186.6 | 454.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -24.07 | 110.54 | -21.11 | 141.74 | 0.5331 | 601.0 | 463.2 | |
| 24.66 | 92.68 | 13.70 | 51.47 | -17.49 | 111.35 | -20.29 | 133.15 | 0.4553 | 1135.4 | 462.9 | |
| 34.99 | -10.00 | 20.22 | -10.00 | -22.62 | 110.54 | -21.10 | 139.83 | 0.5173 | 1285.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -15.33 | 111.49 | -20.16 | 129.50 | 0.4325 | 53.0 | 131.4 | |
| 1.37 | -10.00 | 0.79 | -10.00 | -23.13 | 110.18 | -21.46 | 140.06 | 0.5263 | 743.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -24.17 | 109.89 | -21.75 | 141.07 | 0.5401 | -395.0 | -241.4 | |
| 0.51 | -10.00 | 0.30 | -10.00 | -23.17 | 109.93 | -21.71 | 139.80 | 0.5291 | 791.3 | 999999 | |
| 5.29 | -10.00 | 3.08 | -10.00 | -22.88 | 109.95 | -21.70 | 139.43 | 0.5258 | 1030.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -23.72 | 109.56 | -22.09 | 140.07 | 0.5385 | 784.0 | 602.0 | |
| 1.37 | -10.00 | 0.79 | -10.00 | -22.52 | 109.69 | -21.95 | 138.64 | 0.5246 | 767.7 | 999999 | |
| 2.39 | 8.28 | 1.40 | 4.85 | -23.43 | 109.47 | -22.17 | 139.58 | 0.5362 | 763.9 | 446.4 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -24.99 | 109.04 | -22.61 | 141.07 | 0.5567 | 671.0 | 497.2 | |
| 5.46 | 29.61 | 3.21 | 17.44 | -23.82 | 109.22 | -22.42 | 139.79 | 0.5426 | 692.7 | 403.6 | |
| 2.30 | -10.00 | 1.35 | -10.00 | -22.85 | 109.22 | -22.42 | 138.50 | 0.5326 | 638.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -24.37 | 108.91 | -22.73 | 140.14 | 0.5514 | 622.0 | 526.8 | |
| 1.62 | -23.00 | 0.96 | -23.00 | -23.69 | 109.00 | -22.64 | 139.36 | 0.5434 | 522.5 | 999999 | |
| 2.90 | -10.00 | 1.70 | -10.00 | -22.65 | 108.98 | -22.66 | 137.95 | 0.5330 | 804.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -16.69 | 109.76 | -21.89 | 129.72 | 0.4662 | 728.0 | 538.1 | |
| 1.11 | -10.00 | 0.65 | -10.00 | -23.30 | 108.62 | -23.02 | 138.40 | 0.5432 | 577.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -17.10 | 109.57 | -22.07 | 130.19 | 0.4721 | 768.0 | 672.7 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -21.09 | 108.97 | -22.68 | 135.72 | 0.5174 | 833.0 | 563.9 | |
| 1.19 | -10.00 | 0.70 | -10.00 | -23.01 | 108.39 | -23.25 | 137.74 | 0.5425 | 572.7 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.39 | -17.04 | 109.28 | -22.36 | 129.73 | 0.4750 | 705.0 | 598.6 | |
| 1.28 | -10.00 | 0.76 | -10.00 | -23.24 | 108.14 | -23.50 | 137.76 | 0.5472 | -419.5 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -17.66 | 109.00 | -22.65 | 130.44 | 0.4841 | 688.0 | 571.0 | |
| 1.37 | -10.00 | 0.81 | -10.00 | -23.08 | 108.07 | -23.58 | 137.45 | 0.5464 | 442.5 | 999999 | |
| 0.51 | 93.02 | 0.31 | 55.53 | -23.47 | 107.32 | -24.32 | 137.14 | 0.5576 | 639.2 | -115.3 | |
| 16.73 | -37.00 | 9.96 | -37.00 | -23.31 | 107.18 | -24.47 | 136.76 | 0.5575 | 854.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -19.35 | 107.67 | -23.98 | 131.61 | 0.5149 | -812.0 | -678.5 | |
| 2.05 | 6.06 | 1.21 | 3.57 | -21.99 | 107.11 | -24.53 | 134.88 | 0.5455 | 572.4 | 271.1 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -19.80 | 107.39 | -24.26 | 131.98 | 0.5221 | -731.0 | -568.4 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -20.08 | 107.31 | -24.34 | 132.32 | 0.5256 | -773.0 | -593.4 | |
| 0.26 | 106.50 | 0.15 | 62.77 | -21.19 | 107.08 | -24.56 | 133.71 | 0.5383 | -815.7 | -291.2 | |
| 0.00 | 3.75 | 0.00 | 2.19 | -20.49 | 107.20 | -24.44 | 132.82 | 0.5305 | -646.0 | -587.3 | |
| 0.00 | 2.30 | 0.00 | 1.33 | -19.39 | 107.35 | -24.29 | 131.31 | 0.5188 | -963.0 | -844.9 | |
| 2.65 | -43.00 | 1.55 | -43.00 | -21.07 | 106.96 | -24.68 | 133.40 | 0.5384 | -949.8 | 999999 | |
| 1.88 | -37.00 | 1.13 | -37.00 | -23.80 | 106.26 | -25.39 | 136.43 | 0.5713 | 515.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -20.49 | 106.82 | -24.82 | 132.40 | 0.5347 | -771.0 | -571.6 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -24.32 | 106.07 | -25.57 | 136.92 | 0.5780 | 754.0 | 580.2 | |
| 16.30 | -43.00 | 9.59 | -43.00 | -21.00 | 106.63 | -25.02 | 132.94 | 0.5415 | -1025.9 | 999999 | |
| 2.82 | -37.00 | 1.69 | -37.00 | -23.12 | 106.18 | -25.46 | 135.44 | 0.5657 | -853.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -24.00 | 105.93 | -25.71 | 136.34 | 0.5764 | 453.0 | 336.1 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -19.33 | 106.60 | -25.04 | 130.41 | 0.5267 | -862.0 | -640.1 | |
| 0.00 | 3.50 | 0.00 | 2.07 | -21.32 | 106.22 | -25.43 | 132.97 | 0.5488 | -408.0 | -423.3 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -24.32 | 105.57 | -26.07 | 136.40 | 0.5830 | 714.0 | 564.0 | |
| 2.90 | -43.00 | 1.71 | -43.00 | -20.85 | 106.20 | -25.44 | 132.26 | 0.5447 | -423.2 | 999999 | |
| 7.85 | -43.00 | 4.62 | -43.00 | -20.56 | 106.22 | -25.43 | 131.86 | 0.5419 | 811.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -19.49 | 106.23 | -25.42 | 130.26 | 0.5323 | -595.0 | -499.2 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -19.24 | 106.20 | -25.44 | 129.85 | 0.5304 | -899.0 | -749.9 | |
| 2.82 | 5.12 | 1.72 | 3.13 | -24.52 | 105.13 | -26.52 | 136.21 | 0.5892 | 728.3 | 465.9 | |
| 6.49 | -43.00 | 3.85 | -43.00 | -21.20 | 105.57 | -26.07 | 132.12 | 0.5546 | -864.6 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.54 | -18.67 | 106.02 | -25.63 | 128.78 | 0.5277 | -736.0 | -675.3 | |
| 2.82 | 93.02 | 1.70 | 56.54 | -22.96 | 105.11 | -26.54 | 134.12 | 0.5752 | -1169.0 | -370.2 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -21.97 | 105.31 | -26.33 | 132.95 | 0.5642 | -767.0 | -616.7 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -22.42 | 105.04 | -26.60 | 133.31 | 0.5710 | -939.0 | -808.9 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -22.55 | 104.80 | -26.84 | 133.24 | 0.5747 | -847.0 | -741.1 | |
| 18.43 | -63.00 | 11.19 | -63.00 | -22.97 | 104.57 | -27.08 | 133.59 | 0.5808 | -1040.7 | 999999 | |
| 2.56 | 6.91 | 1.53 | 4.15 | -21.46 | 104.81 | -26.83 | 131.73 | 0.5651 | -966.8 | -751.0 | |
| 0.00 | 6.40 | 0.00 | 3.86 | -22.13 | 104.67 | -26.97 | 132.54 | 0.5724 | -925.0 | -800.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -17.74 | 105.44 | -26.20 | 126.72 | 0.5268 | -834.0 | -638.1 | |
| 2.22 | 143.02 | 1.34 | 87.15 | -21.94 | 104.32 | -27.33 | 131.93 | 0.5745 | -972.7 | -347.5 | |
| 2.39 | 5.63 | 1.42 | 3.34 | -19.62 | 104.70 | -26.94 | 128.93 | 0.5508 | -951.1 | -822.4 | |
| 0.00 | 2.99 | 0.00 | 1.83 | -23.33 | 103.87 | -27.77 | 133.40 | 0.5911 | -217.0 | -188.6 | |
| 5.12 | -71.00 | 3.10 | -71.00 | -21.88 | 104.08 | -27.56 | 131.61 | 0.5765 | -1010.9 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.79 | -20.73 | 104.21 | -27.44 | 130.09 | 0.5655 | -713.0 | -749.9 | |
| 0.00 | 2.13 | 0.00 | 1.29 | -21.34 | 104.01 | -27.63 | 130.78 | 0.5727 | -891.0 | -675.0 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -23.20 | 103.57 | -28.07 | 132.94 | 0.5931 | -136.0 | -164.3 | |
| 3.67 | -71.00 | 2.22 | -71.00 | -21.66 | 103.88 | -27.77 | 131.10 | 0.5769 | -1101.4 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -22.68 | 103.65 | -27.99 | 132.32 | 0.5879 | -591.0 | -456.1 | |
| 6.49 | -63.00 | 3.98 | -63.00 | -22.88 | 103.43 | -28.22 | 132.37 | 0.5919 | -741.5 | 999999 | |
| 0.51 | 1.71 | 0.31 | 1.05 | -23.10 | 103.38 | -28.27 | 132.63 | 0.5943 | -674.0 | -569.4 | |
| 1.37 | 1.79 | 0.81 | 1.07 | -19.69 | 104.02 | -27.63 | 128.38 | 0.5591 | -811.4 | -838.2 | |
| 3.75 | -71.00 | 2.28 | -71.00 | -21.66 | 103.59 | -28.06 | 130.83 | 0.5800 | -1045.9 | 999999 | |
| 2.30 | -71.00 | 1.39 | -71.00 | -21.12 | 103.59 | -28.05 | 130.07 | 0.5755 | -1049.1 | 999999 | |
| 1.19 | 3.16 | 0.73 | 1.93 | -22.52 | 103.25 | -28.39 | 131.73 | 0.5908 | -555.4 | -520.8 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -19.47 | 103.81 | -27.83 | 127.86 | 0.5597 | -783.0 | -593.4 | |
| 0.77 | 2.90 | 0.46 | 1.75 | -20.93 | 103.42 | -28.23 | 129.63 | 0.5759 | -972.1 | -778.9 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -20.23 | 103.52 | -28.12 | 128.72 | 0.5691 | -397.0 | -412.9 | |
| 27.14 | -71.00 | 16.52 | -71.00 | -21.56 | 103.17 | -28.47 | 130.32 | 0.5837 | -1001.0 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.31 | -22.56 | 102.84 | -28.80 | 131.40 | 0.5954 | -541.0 | -351.4 | |
| 3.75 | 81.58 | 2.27 | 49.36 | -20.42 | 103.23 | -28.41 | 128.73 | 0.5738 | -1203.6 | -563.2 | |
| 3.16 | -91.00 | 1.91 | -91.00 | -20.71 | 103.14 | -28.51 | 129.06 | 0.5772 | -981.6 | 999999 | |
| 0.43 | -71.00 | 0.26 | -71.00 | -22.01 | 102.75 | -28.90 | 130.56 | 0.5919 | -532.6 | 999999 | |
| 8.62 | -91.00 | 5.22 | -91.00 | -20.45 | 102.87 | -28.78 | 128.45 | 0.5782 | -995.1 | 999999 | |
| 0.85 | -91.00 | 0.52 | -91.00 | -20.45 | 102.69 | -28.96 | 128.29 | 0.5802 | -835.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -20.33 | 102.20 | -29.44 | 127.69 | 0.5847 | -512.0 | -429.9 | |
| 0.00 | 2.90 | 0.00 | 1.79 | -21.67 | 101.73 | -29.92 | 129.18 | 0.6002 | -414.0 | -310.7 | |
| 0.00 | 1.71 | 0.00 | 1.07 | -20.79 | 99.71 | -31.93 | 126.31 | 0.6159 | -571.0 | -414.6 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -20.79 | 99.15 | -32.49 | 125.89 | 0.6222 | -468.0 | -394.1 | |
| 0.00 | 1.88 | 0.00 | 1.20 | -20.33 | 97.94 | -33.70 | 124.36 | 0.6325 | -598.0 | -521.0 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -23.71 | 95.06 | -36.58 | 126.91 | 0.6848 | -605.0 | -465.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
