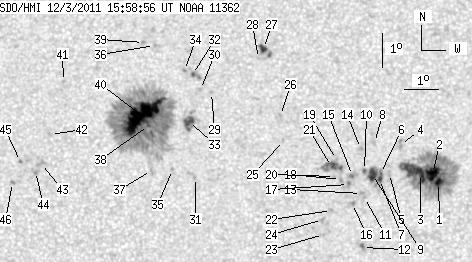

SDO HMI 2011-12-03 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.50 | 622.42 | 48.33 | 311.67 | 7.82 | 129.13 | -1.96 | 2.91 | 0.1464 | 76.1 | 39.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.84 | 162.64 | 1.92 | 81.18 | 6.51 | 134.91 | 3.82 | 327.22 | 0.1229 | -1395.1 | -546.6 | |
| 12.03 | -1.00 | 6.01 | -1.00 | 6.78 | 134.74 | 3.64 | 329.57 | 0.1252 | -1450.7 | 999999 | |
| 8.36 | -1.00 | 4.17 | -1.00 | 6.78 | 134.38 | 3.29 | 332.09 | 0.1222 | -1307.9 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 7.64 | 133.79 | 2.70 | 339.15 | 0.1316 | -906.0 | -792.1 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 6.78 | 133.46 | 2.36 | 339.14 | 0.1156 | -1096.0 | -792.3 | |
| 0.34 | 26.28 | 0.17 | 13.10 | 6.78 | 133.19 | 2.10 | 341.33 | 0.1140 | -1016.5 | -704.8 | |
| 2.05 | -6.00 | 1.02 | -6.00 | 6.60 | 133.16 | 2.07 | 341.06 | 0.1109 | -1089.1 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 7.70 | 133.01 | 1.92 | 344.93 | 0.1285 | -739.0 | -577.2 | |
| 7.85 | -6.00 | 3.91 | -6.00 | 6.75 | 132.95 | 1.86 | 343.24 | 0.1122 | -1200.0 | 999999 | |
| 1.11 | -6.00 | 0.55 | -6.00 | 6.87 | 132.71 | 1.62 | 345.56 | 0.1131 | -856.5 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 6.07 | 132.71 | 1.62 | 343.55 | 0.0996 | -974.0 | -806.0 | |
| 0.00 | 3.33 | 0.00 | 1.65 | 4.58 | 132.65 | 1.56 | 338.69 | 0.0748 | -1028.0 | -887.7 | |
| 0.00 | 2.13 | 0.00 | 1.06 | 6.18 | 132.62 | 1.53 | 344.73 | 0.1012 | -1098.0 | -888.1 | |
| 0.00 | 2.22 | 0.00 | 1.11 | 7.52 | 132.60 | 1.50 | 347.80 | 0.1237 | -1002.0 | -658.2 | |
| 0.00 | 4.61 | 0.00 | 2.30 | 6.72 | 132.36 | 1.26 | 348.38 | 0.1092 | -1195.0 | -879.2 | |
| 0.00 | 2.30 | 0.00 | 1.15 | 5.89 | 132.35 | 1.26 | 346.61 | 0.0950 | -1089.0 | -792.6 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 6.45 | 132.24 | 1.14 | 348.97 | 0.1042 | -1146.0 | -971.3 | |
| 0.00 | 2.65 | 0.00 | 1.32 | 6.60 | 132.00 | 0.91 | 351.44 | 0.1061 | -949.0 | -735.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 7.19 | 131.88 | 0.79 | 353.21 | 0.1161 | -686.0 | -426.9 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 6.69 | 131.82 | 0.73 | 353.20 | 0.1072 | -1090.0 | -822.6 | |
| 0.00 | 13.74 | 0.00 | 6.85 | 6.99 | 131.73 | 0.64 | 354.31 | 0.1122 | -1161.0 | -926.0 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 5.68 | 131.73 | 0.64 | 352.86 | 0.0895 | -984.0 | -729.9 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 4.97 | 131.49 | 0.40 | 354.77 | 0.0767 | -1054.0 | -755.7 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 5.41 | 131.46 | 0.37 | 355.60 | 0.0844 | -892.0 | -680.3 | |
| 0.00 | 0.77 | 0.00 | 0.38 | 7.76 | 130.30 | -0.79 | 6.26 | 0.1258 | 821.0 | 605.2 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 8.50 | 130.21 | -0.88 | 6.32 | 0.1389 | -983.0 | -704.4 | |
| 3.84 | 7.94 | 1.93 | 3.99 | 10.51 | 129.70 | -1.40 | 7.94 | 0.1744 | -985.6 | -883.6 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 10.21 | 129.55 | -1.55 | 9.04 | 0.1696 | -796.0 | -627.0 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 9.19 | 128.15 | -2.95 | 18.79 | 0.1584 | 888.0 | 633.1 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.28 | 127.81 | -3.28 | 20.52 | 0.1617 | 859.0 | 621.4 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 6.66 | 127.69 | -3.41 | 29.24 | 0.1214 | -836.0 | -653.2 | |
| 1.28 | 4.35 | 0.64 | 2.19 | 9.73 | 127.57 | -3.52 | 20.91 | 0.1705 | 1041.7 | 931.1 | |
| 6.31 | 15.53 | 3.16 | 7.78 | 8.32 | 127.46 | -3.63 | 25.00 | 0.1489 | 1114.7 | 761.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.85 | 127.33 | -3.76 | 21.94 | 0.1739 | 1114.0 | 864.3 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.90 | 127.00 | -4.09 | 32.90 | 0.1311 | -628.0 | -552.7 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 10.59 | 126.42 | -4.68 | 24.80 | 0.1920 | 1046.0 | 872.7 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 6.87 | 126.37 | -4.72 | 36.84 | 0.1369 | 205.0 | -40.1 | |
| 0.85 | 329.12 | 0.43 | 165.14 | 8.20 | 126.27 | -4.82 | 32.19 | 0.1570 | 1144.4 | 455.8 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 10.68 | 126.08 | -5.01 | 26.12 | 0.1958 | 1150.0 | 873.2 | |
| 48.64 | -38.00 | 24.42 | -38.00 | 8.50 | 126.06 | -5.04 | 32.30 | 0.1633 | 1454.6 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 9.51 | 123.69 | -7.40 | 39.36 | 0.2013 | 946.0 | 713.8 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 7.93 | 123.33 | -7.76 | 46.35 | 0.1857 | 840.0 | 559.8 | |
| 0.00 | 4.10 | 0.00 | 2.06 | 7.07 | 123.08 | -8.02 | 50.85 | 0.1793 | 1036.0 | 779.9 | |
| 0.00 | 3.50 | 0.00 | 1.76 | 6.83 | 122.90 | -8.19 | 52.51 | 0.1791 | 802.0 | 705.0 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 7.13 | 122.44 | -8.65 | 52.70 | 0.1884 | 968.0 | 815.2 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 6.50 | 122.22 | -8.88 | 56.14 | 0.1855 | 945.0 | 777.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
