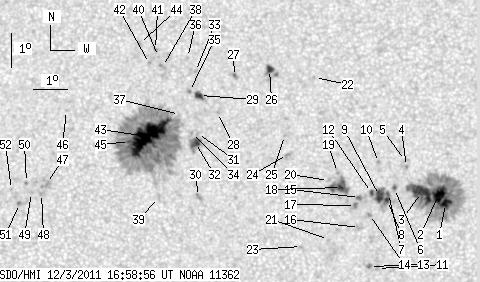

SDO HMI 2011-12-03 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.27 | 635.77 | 59.71 | 318.29 | 7.88 | 129.12 | -1.42 | 359.87 | 0.1458 | 112.7 | 74.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.97 | 166.04 | 2.98 | 82.93 | 6.51 | 134.96 | 4.42 | 323.35 | 0.1288 | -1320.1 | -469.6 | |
| 12.03 | -1.00 | 6.01 | -1.00 | 6.78 | 134.75 | 4.21 | 325.85 | 0.1305 | -1434.7 | 999999 | |
| 17.15 | -1.00 | 8.56 | -1.00 | 6.84 | 134.25 | 3.70 | 329.41 | 0.1267 | -1226.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 7.61 | 133.80 | 3.26 | 335.17 | 0.1350 | -957.0 | -736.8 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 7.79 | 133.78 | 3.24 | 335.91 | 0.1376 | -782.0 | -540.0 | |
| 1.28 | 1.54 | 0.64 | 0.77 | 6.95 | 133.44 | 2.90 | 335.57 | 0.1220 | -1036.5 | -1183.3 | |
| 1.11 | 26.71 | 0.55 | 13.32 | 6.81 | 133.26 | 2.72 | 336.42 | 0.1184 | -900.5 | -744.1 | |
| 1.62 | -7.00 | 0.81 | -7.00 | 6.60 | 133.23 | 2.69 | 335.93 | 0.1149 | -1059.9 | 999999 | |
| 7.25 | -7.00 | 3.62 | -7.00 | 6.75 | 132.99 | 2.45 | 338.33 | 0.1157 | -1219.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 7.73 | 132.97 | 2.43 | 341.29 | 0.1315 | -732.0 | -598.4 | |
| 0.00 | 2.30 | 0.00 | 1.14 | 4.58 | 132.93 | 2.39 | 329.12 | 0.0812 | -794.0 | -695.1 | |
| 1.79 | -7.00 | 0.89 | -7.00 | 6.84 | 132.76 | 2.22 | 340.52 | 0.1157 | -898.0 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 4.64 | 132.69 | 2.15 | 332.05 | 0.0801 | -1276.0 | -1018.7 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 6.18 | 132.69 | 2.15 | 338.97 | 0.1046 | -1097.0 | -882.9 | |
| 0.00 | 2.47 | 0.00 | 1.23 | 6.69 | 132.40 | 1.86 | 343.09 | 0.1113 | -1233.0 | -1015.0 | |
| 0.00 | 3.41 | 0.00 | 1.70 | 5.80 | 132.40 | 1.86 | 340.41 | 0.0965 | -777.0 | -544.4 | |
| 0.00 | 3.16 | 0.00 | 1.57 | 6.45 | 132.28 | 1.74 | 343.51 | 0.1067 | -1187.0 | -948.9 | |
| 3.58 | 19.11 | 1.79 | 9.53 | 6.98 | 131.86 | 1.32 | 348.34 | 0.1140 | -1110.3 | -757.1 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 7.43 | 131.75 | 1.21 | 350.04 | 0.1212 | -957.0 | -774.0 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 7.19 | 131.48 | 0.94 | 351.95 | 0.1164 | -474.0 | -309.6 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 5.44 | 131.48 | 0.93 | 349.10 | 0.0863 | -780.0 | -649.1 | |
| 0.00 | 1.02 | 0.00 | 0.51 | 10.27 | 131.07 | 0.53 | 356.92 | 0.1688 | -880.0 | -620.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 5.23 | 130.67 | 0.13 | 358.35 | 0.0811 | -862.0 | -682.7 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 7.97 | 130.26 | -0.28 | 2.19 | 0.1288 | 865.0 | 583.5 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 8.53 | 130.17 | -0.37 | 2.67 | 0.1387 | -939.0 | -707.9 | |
| 3.75 | 9.47 | 1.89 | 4.76 | 10.51 | 129.72 | -0.83 | 4.71 | 0.1733 | -1014.2 | -814.9 | |
| 0.00 | 3.50 | 0.00 | 1.76 | 10.30 | 128.67 | -1.88 | 10.83 | 0.1722 | -876.0 | -677.9 | |
| 0.00 | 1.02 | 0.00 | 0.51 | 9.22 | 128.16 | -2.38 | 15.30 | 0.1560 | 813.0 | 609.0 | |
| 4.18 | 6.06 | 2.10 | 3.04 | 9.73 | 127.62 | -2.92 | 17.58 | 0.1671 | 1025.4 | 751.4 | |
| 0.00 | 3.50 | 0.00 | 1.74 | 6.72 | 127.61 | -2.93 | 25.49 | 0.1185 | -867.0 | -748.4 | |
| 0.00 | 1.02 | 0.00 | 0.51 | 8.59 | 127.57 | -2.97 | 20.25 | 0.1488 | 877.0 | 682.9 | |
| 5.29 | 13.91 | 2.65 | 6.96 | 8.32 | 127.51 | -3.03 | 21.28 | 0.1448 | 1083.3 | 845.8 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 10.44 | 127.49 | -3.05 | 17.02 | 0.1796 | 984.0 | 737.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.59 | 127.39 | -3.15 | 21.37 | 0.1499 | 890.0 | 700.4 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 9.85 | 127.32 | -3.22 | 19.03 | 0.1707 | 1174.0 | 885.1 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 10.86 | 127.25 | -3.29 | 17.58 | 0.1877 | 865.0 | 651.9 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.16 | 127.02 | -3.52 | 22.15 | 0.1613 | 191.0 | 123.0 | |
| 0.00 | 2.99 | 0.00 | 1.51 | 10.59 | 126.50 | -4.04 | 21.78 | 0.1877 | 920.0 | 730.3 | |
| 0.00 | 2.99 | 0.00 | 1.49 | 6.69 | 126.42 | -4.12 | 33.96 | 0.1284 | -253.0 | -256.6 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 10.89 | 126.37 | -4.17 | 21.78 | 0.1933 | 780.0 | 723.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 11.10 | 126.28 | -4.26 | 21.81 | 0.1972 | 876.0 | 732.6 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 10.68 | 126.10 | -4.44 | 23.47 | 0.1917 | 1059.0 | 845.1 | |
| 52.65 | 322.53 | 26.41 | 161.72 | 8.50 | 126.07 | -4.47 | 29.28 | 0.1583 | 1433.5 | 451.9 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 11.28 | 125.79 | -4.75 | 23.65 | 0.2033 | 772.0 | 641.8 | |
| 1.62 | -43.00 | 0.81 | -43.00 | 8.35 | 125.54 | -5.00 | 32.63 | 0.1608 | 938.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 9.27 | 123.63 | -6.91 | 38.23 | 0.1929 | 799.0 | 612.6 | |
| 0.00 | 6.74 | 0.00 | 3.39 | 7.10 | 123.07 | -7.47 | 48.76 | 0.1725 | 854.0 | 758.8 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 6.80 | 122.92 | -7.62 | 50.63 | 0.1711 | 891.0 | 784.7 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 6.83 | 122.62 | -7.92 | 51.57 | 0.1755 | 895.0 | 685.2 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 7.13 | 122.47 | -8.08 | 50.80 | 0.1807 | 1041.0 | 850.2 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 6.50 | 122.27 | -8.28 | 54.27 | 0.1770 | 1060.0 | 875.4 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 6.92 | 122.02 | -8.52 | 53.19 | 0.1846 | 672.0 | 549.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
