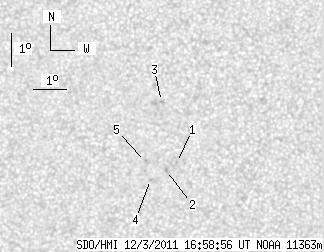

SDO HMI 2011-12-03 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.17 | 0.00 | 3.64 | -11.45 | 128.79 | -1.75 | 171.80 | 0.2119 | 888.2 | 688.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.48 | -11.79 | 129.29 | -1.25 | 174.31 | 0.2166 | 869.0 | 668.5 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -12.03 | 128.99 | -1.55 | 173.08 | 0.2213 | 987.0 | 723.0 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -9.95 | 128.85 | -1.69 | 170.97 | 0.1863 | 931.0 | 660.2 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -12.30 | 128.50 | -2.04 | 171.15 | 0.2271 | 799.0 | 679.4 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -11.76 | 128.35 | -2.19 | 170.10 | 0.2183 | 855.0 | 702.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
