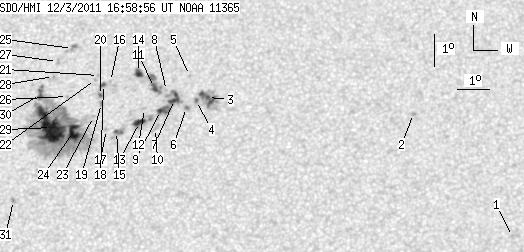

SDO HMI 2011-12-03 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.89 | 384.63 | 53.80 | 203.01 | 19.66 | 123.74 | -6.80 | 18.78 | 0.3480 | 225.6 | 161.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.66 | 15.98 | 136.93 | 6.39 | 338.04 | 0.2873 | 760.0 | 548.9 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 19.79 | 133.95 | 3.41 | 350.34 | 0.3349 | 918.0 | 674.8 | |
| 9.22 | 28.67 | 4.85 | 15.10 | 20.29 | 127.47 | -3.07 | 8.48 | 0.3422 | -1016.0 | -613.8 | |
| 1.54 | -3.00 | 0.81 | -3.00 | 20.20 | 127.12 | -3.42 | 9.47 | 0.3415 | -1003.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.98 | 126.89 | -3.66 | 9.70 | 0.3549 | -743.0 | -550.5 | |
| 0.34 | 1.28 | 0.18 | 0.67 | 19.98 | 126.81 | -3.73 | 10.43 | 0.3388 | -1176.0 | -972.4 | |
| 6.48 | 22.44 | 3.42 | 11.83 | 20.23 | 126.43 | -4.11 | 11.32 | 0.3441 | -1128.2 | -974.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 20.51 | 126.17 | -4.37 | 11.84 | 0.3495 | -724.0 | -594.8 | |
| 1.88 | -7.00 | 0.99 | -7.00 | 19.88 | 126.00 | -4.54 | 12.71 | 0.3400 | -1064.7 | 999999 | |
| 0.00 | 4.10 | 0.00 | 2.15 | 19.32 | 125.86 | -4.68 | 13.50 | 0.3315 | -892.0 | -678.6 | |
| 4.44 | 12.71 | 2.35 | 6.73 | 20.61 | 125.79 | -4.75 | 12.78 | 0.3523 | -841.6 | -784.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 19.95 | 125.49 | -5.05 | 14.02 | 0.3429 | -89.0 | -132.2 | |
| 5.46 | 12.54 | 2.87 | 6.59 | 19.51 | 125.35 | -5.19 | 14.75 | 0.3366 | -901.6 | -400.8 | |
| 4.52 | 6.06 | 2.40 | 3.22 | 21.08 | 125.26 | -5.28 | 13.78 | 0.3618 | -741.0 | -449.1 | |
| 2.05 | 7.76 | 1.08 | 4.08 | 19.23 | 124.63 | -5.91 | 16.92 | 0.3353 | -868.4 | -726.2 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 20.79 | 124.38 | -6.16 | 16.20 | 0.3610 | -640.0 | -346.4 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 19.29 | 124.32 | -6.22 | 17.71 | 0.3379 | -464.0 | -367.3 | |
| 1.71 | 3.41 | 0.91 | 1.81 | 20.70 | 124.17 | -6.37 | 16.82 | 0.3606 | -873.5 | -677.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 20.10 | 124.13 | -6.41 | 17.44 | 0.3515 | -1092.0 | -917.2 | |
| 1.62 | 1.96 | 0.86 | 1.04 | 20.35 | 124.09 | -6.46 | 17.32 | 0.3556 | -984.2 | -561.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.98 | 123.99 | -6.55 | 17.00 | 0.3658 | -749.0 | -577.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 20.86 | 123.90 | -6.64 | 17.32 | 0.3643 | -575.0 | -309.9 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.69 | 123.89 | -6.65 | 18.43 | 0.3463 | -313.0 | -257.1 | |
| 11.18 | 257.51 | 5.89 | 135.89 | 19.23 | 123.28 | -7.26 | 20.49 | 0.3425 | 1219.6 | 442.2 | |
| 0.00 | 6.74 | 0.00 | 3.61 | 21.84 | 123.12 | -7.42 | 18.31 | 0.3832 | 997.0 | 692.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 20.32 | 123.04 | -7.50 | 19.94 | 0.3605 | 717.0 | 486.8 | |
| 0.00 | 2.05 | 0.00 | 1.10 | 21.42 | 122.66 | -7.88 | 19.74 | 0.3793 | 666.0 | 690.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 20.95 | 122.56 | -7.98 | 20.45 | 0.3728 | 778.0 | 736.4 | |
| 47.18 | -24.00 | 24.92 | -24.00 | 19.35 | 122.58 | -7.96 | 22.12 | 0.3485 | 1230.9 | 999999 | |
| 4.27 | -24.00 | 2.27 | -24.00 | 20.38 | 122.18 | -8.36 | 21.94 | 0.3665 | 794.6 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 17.09 | 121.50 | -9.04 | 27.90 | 0.3226 | -1052.0 | -785.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
