SDO HMI 2011-12-03 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.31 | 386.84 | 46.57 | 203.93 | 19.64 | 123.71 | -6.28 | 17.49 | 0.3449 | 263.8 | 126.1 | |
|
previous
or next observation for the same group /

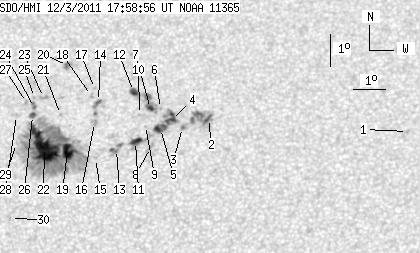

back to the solar disc SDO HMI 2011-12-03 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.82 | 133.93 | 3.94 | 348.88 | 0.3370 | 841.0 | 623.0 | |
| 2.82 | 25.08 | 1.48 | 13.20 | 20.23 | 127.67 | -2.31 | 6.44 | 0.3395 | -974.2 | -791.8 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 19.95 | 126.86 | -3.13 | 8.80 | 0.3367 | -1186.0 | -1000.2 | |
| 6.48 | 26.19 | 3.42 | 13.79 | 20.20 | 126.51 | -3.48 | 9.64 | 0.3417 | -1137.0 | -809.8 | |
| 8.02 | -4.00 | 4.22 | -4.00 | 19.91 | 126.17 | -3.82 | 10.72 | 0.3381 | -1145.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.54 | 126.15 | -3.84 | 10.41 | 0.3483 | -859.0 | -649.2 | |
| 2.22 | 22.78 | 1.17 | 12.06 | 20.54 | 125.84 | -4.15 | 11.24 | 0.3493 | -954.2 | -642.1 | |
| 0.00 | 4.18 | 0.00 | 2.19 | 19.32 | 125.87 | -4.12 | 11.93 | 0.3295 | -958.0 | -694.9 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 20.01 | 125.69 | -4.29 | 11.96 | 0.3412 | -567.0 | -442.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.35 | 125.49 | -4.49 | 12.26 | 0.3474 | -828.0 | -550.5 | |
| 5.38 | 15.36 | 2.82 | 8.06 | 19.51 | 125.39 | -4.60 | 13.12 | 0.3342 | -869.0 | -383.6 | |
| 4.69 | -7.00 | 2.49 | -7.00 | 21.08 | 125.28 | -4.71 | 12.34 | 0.3597 | -739.5 | 999999 | |
| 0.00 | 7.76 | 0.00 | 4.08 | 19.26 | 124.80 | -5.18 | 14.93 | 0.3326 | -991.0 | -782.3 | |
| 1.02 | 6.57 | 0.54 | 3.48 | 20.76 | 124.18 | -5.81 | 15.35 | 0.3590 | -987.5 | -791.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.98 | 124.15 | -5.83 | 16.96 | 0.3311 | -334.0 | -286.3 | |
| 0.00 | 3.84 | 0.00 | 2.03 | 20.10 | 124.08 | -5.91 | 16.15 | 0.3491 | -931.0 | -657.6 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 21.17 | 124.04 | -5.95 | 15.38 | 0.3660 | -683.0 | -550.5 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 20.95 | 123.95 | -6.04 | 15.77 | 0.3630 | -773.0 | -580.3 | |
| 11.60 | 244.88 | 6.11 | 129.01 | 19.19 | 123.26 | -6.72 | 19.12 | 0.3390 | 1206.7 | 464.6 | |
| 0.00 | 4.52 | 0.00 | 2.42 | 21.90 | 123.14 | -6.84 | 16.93 | 0.3814 | 937.0 | 784.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.35 | 122.99 | -6.99 | 18.67 | 0.3583 | 748.0 | 476.9 | |
| 42.32 | -19.00 | 22.32 | -19.00 | 19.32 | 122.53 | -7.45 | 20.88 | 0.3450 | 1243.8 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.59 | 20.89 | 122.43 | -7.56 | 19.52 | 0.3695 | 955.0 | 705.5 | |
| 0.77 | 2.99 | 0.41 | 1.59 | 20.57 | 122.16 | -7.83 | 20.48 | 0.3662 | 548.6 | 612.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 20.88 | 122.14 | -7.85 | 20.20 | 0.3711 | 590.0 | 456.1 | |
| 2.99 | 3.58 | 1.59 | 1.90 | 20.32 | 122.11 | -7.88 | 20.86 | 0.3627 | 755.2 | 557.1 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 20.73 | 121.89 | -8.10 | 20.94 | 0.3701 | 598.0 | 462.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 20.32 | 121.60 | -8.39 | 22.08 | 0.3658 | 692.0 | 440.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 19.44 | 121.64 | -8.35 | 22.96 | 0.3524 | 29.0 | 25.5 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 17.12 | 121.57 | -8.42 | 26.20 | 0.3183 | -723.0 | -542.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
