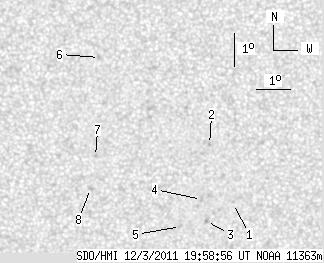

SDO HMI 2011-12-03 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.58 | 0.00 | 5.35 | -10.74 | 126.94 | -1.94 | 169.71 | 0.2025 | 818.1 | 618.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.22 | -11.80 | 129.47 | 0.58 | 182.66 | 0.2158 | 601.0 | 641.8 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -10.02 | 128.74 | -0.14 | 179.26 | 0.1850 | 1016.0 | 821.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -12.34 | 128.65 | -0.23 | 178.99 | 0.2249 | 885.0 | 738.3 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -11.68 | 128.50 | -0.38 | 178.25 | 0.2136 | 906.0 | 677.5 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -12.49 | 127.86 | -1.02 | 175.62 | 0.2282 | 856.0 | 610.7 | |
| 0.00 | 1.79 | 0.00 | 0.90 | -7.42 | 125.47 | -3.42 | 157.03 | 0.1521 | 834.0 | 654.4 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -10.38 | 125.32 | -3.56 | 162.19 | 0.2009 | 818.0 | 635.5 | |
| 0.00 | 2.13 | 0.00 | 1.08 | -11.35 | 125.16 | -3.73 | 162.88 | 0.2174 | 629.0 | 371.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
