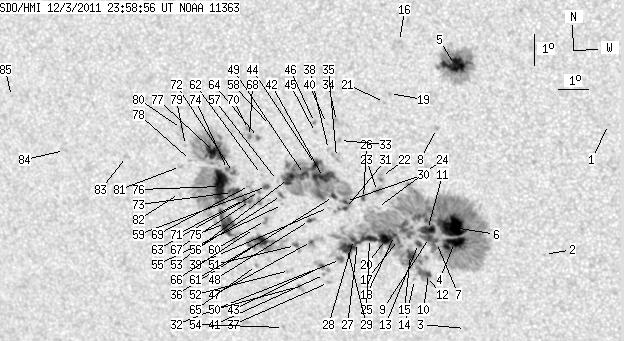

SDO HMI 2011-12-03 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 264.15 | 1397.83 | 150.92 | 795.44 | -22.00 | 107.26 | -19.41 | 141.40 | 0.4951 | -42.4 | 91.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-03 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.41 | -19.38 | 116.04 | -10.63 | 152.96 | 0.3845 | -581.0 | -490.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.53 | 113.62 | -13.05 | 153.10 | 0.4595 | 700.0 | 538.9 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -25.96 | 110.67 | -16.00 | 150.96 | 0.5126 | 562.0 | 472.5 | |
| 15.96 | 655.64 | 8.98 | 370.06 | -23.15 | 110.67 | -16.00 | 147.76 | 0.4772 | 1153.3 | 430.6 | |
| 18.52 | 90.38 | 10.01 | 48.84 | -17.52 | 111.26 | -15.41 | 140.74 | 0.4022 | 1260.6 | 536.6 | |
| 29.44 | -4.00 | 16.51 | -4.00 | -22.67 | 110.70 | -15.98 | 147.21 | 0.4709 | 1453.7 | 999999 | |
| 0.60 | -4.00 | 0.34 | -4.00 | -23.15 | 110.07 | -16.61 | 146.83 | 0.4822 | 792.6 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.17 | -19.52 | 110.49 | -16.19 | 142.56 | 0.4340 | 789.0 | 677.4 | |
| 1.02 | -4.00 | 0.58 | -4.00 | -22.99 | 109.85 | -16.82 | 146.30 | 0.4820 | 962.2 | 999999 | |
| 2.65 | -4.00 | 1.51 | -4.00 | -24.16 | 109.66 | -17.01 | 147.44 | 0.4979 | 670.2 | 999999 | |
| 8.71 | -4.00 | 4.91 | -4.00 | -22.74 | 109.82 | -16.85 | 145.92 | 0.4792 | 1061.2 | 999999 | |
| 0.26 | -4.00 | 0.15 | -4.00 | -24.26 | 109.58 | -17.09 | 147.43 | 0.4998 | -213.7 | 999999 | |
| 2.65 | 4.44 | 1.50 | 2.52 | -23.19 | 109.46 | -17.21 | 145.94 | 0.4878 | 851.7 | 668.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -24.36 | 109.16 | -17.51 | 146.93 | 0.5045 | 685.0 | 461.4 | |
| 6.32 | -4.00 | 3.59 | -4.00 | -23.55 | 109.14 | -17.53 | 145.91 | 0.4948 | 864.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -16.81 | 109.55 | -17.12 | 136.62 | 0.4121 | 923.0 | 689.9 | |
| 0.26 | -4.00 | 0.15 | -4.00 | -23.06 | 108.80 | -17.87 | 144.81 | 0.4920 | 982.7 | 999999 | |
| 1.45 | -4.00 | 0.82 | -4.00 | -22.93 | 108.68 | -17.99 | 144.47 | 0.4915 | 973.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -18.43 | 109.07 | -17.61 | 138.56 | 0.4355 | 815.0 | 661.6 | |
| 9.90 | -4.00 | 5.64 | -4.00 | -23.06 | 108.36 | -18.31 | 144.17 | 0.4959 | 966.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -18.71 | 108.87 | -17.80 | 138.71 | 0.4407 | 484.0 | 398.4 | |
| 0.00 | 4.52 | 0.00 | 2.54 | -21.05 | 108.50 | -18.17 | 141.65 | 0.4711 | 748.0 | 643.4 | |
| 1.11 | 6.14 | 0.63 | 3.46 | -21.52 | 108.30 | -18.37 | 142.03 | 0.4785 | -874.8 | -499.2 | |
| 0.00 | 2.39 | 0.00 | 1.35 | -22.04 | 108.23 | -18.44 | 142.63 | 0.4850 | 310.0 | 298.9 | |
| 7.77 | -4.00 | 4.44 | -4.00 | -23.03 | 107.82 | -18.85 | 143.37 | 0.5004 | 777.2 | 999999 | |
| 1.79 | 2.22 | 1.01 | 1.26 | -21.75 | 107.80 | -18.87 | 141.62 | 0.4858 | -889.7 | -735.2 | |
| 0.60 | -4.00 | 0.34 | -4.00 | -23.16 | 107.40 | -19.28 | 142.94 | 0.5057 | 916.4 | 999999 | |
| 1.71 | -4.00 | 0.98 | -4.00 | -23.07 | 107.27 | -19.40 | 142.65 | 0.5057 | 634.8 | 999999 | |
| 10.07 | -4.00 | 5.80 | -4.00 | -23.36 | 107.03 | -19.65 | 142.69 | 0.5113 | 769.1 | 999999 | |
| 1.19 | 182.30 | 0.68 | 103.79 | -21.85 | 107.18 | -19.49 | 140.88 | 0.4929 | 700.5 | -283.6 | |
| 2.39 | -30.00 | 1.36 | -30.00 | -22.07 | 107.15 | -19.52 | 141.14 | 0.4957 | 802.7 | 999999 | |
| 3.16 | 7.94 | 1.83 | 4.59 | -23.72 | 106.73 | -19.94 | 142.75 | 0.5181 | 555.8 | 31.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -19.91 | 107.24 | -19.43 | 138.16 | 0.4708 | -708.0 | -580.0 | |
| 0.00 | 2.82 | 0.00 | 1.57 | -19.31 | 107.22 | -19.45 | 137.21 | 0.4646 | -887.0 | -668.0 | |
| 0.00 | 5.12 | 0.00 | 2.88 | -20.45 | 107.07 | -19.60 | 138.72 | 0.4785 | -648.0 | -677.5 | |
| 2.13 | -30.00 | 1.21 | -30.00 | -21.69 | 106.80 | -19.87 | 140.13 | 0.4948 | 538.7 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.20 | -24.47 | 106.19 | -20.48 | 143.00 | 0.5313 | 659.0 | 504.2 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -20.20 | 106.84 | -19.83 | 138.02 | 0.4781 | -827.0 | -591.1 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -22.04 | 106.58 | -20.09 | 140.32 | 0.5008 | 111.0 | 143.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.38 | 106.88 | -19.79 | 136.83 | 0.4689 | -806.0 | -652.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -24.21 | 106.10 | -20.58 | 142.55 | 0.5293 | 498.0 | 383.6 | |
| 15.96 | -30.00 | 9.06 | -30.00 | -21.09 | 106.55 | -20.13 | 138.93 | 0.4907 | -1025.4 | 999999 | |
| 2.30 | 7.94 | 1.34 | 4.62 | -23.95 | 106.04 | -20.64 | 142.14 | 0.5269 | 565.3 | 278.6 | |
| 3.41 | -30.00 | 1.94 | -30.00 | -20.67 | 106.34 | -20.34 | 138.05 | 0.4884 | 744.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -19.66 | 106.47 | -20.20 | 136.71 | 0.4762 | -667.0 | -429.7 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -19.35 | 106.48 | -20.19 | 136.24 | 0.4728 | -996.0 | -825.7 | |
| 1.28 | 9.90 | 0.74 | 5.73 | -23.14 | 105.83 | -20.85 | 140.81 | 0.5200 | -907.6 | -360.0 | |
| 2.13 | 3.50 | 1.23 | 2.01 | -22.46 | 105.87 | -20.81 | 139.96 | 0.5123 | -831.0 | -692.1 | |
| 3.16 | -30.00 | 1.80 | -30.00 | -20.99 | 105.92 | -20.75 | 137.96 | 0.4960 | -1032.9 | 999999 | |
| 0.51 | 2.73 | 0.30 | 1.61 | -24.60 | 105.12 | -21.55 | 141.82 | 0.5424 | 635.0 | 565.3 | |
| 1.28 | 4.01 | 0.74 | 2.33 | -23.27 | 105.25 | -21.42 | 140.26 | 0.5269 | -934.5 | -391.9 | |
| 0.00 | 3.24 | 0.00 | 1.90 | -24.08 | 104.90 | -21.77 | 140.88 | 0.5389 | -238.0 | -327.3 | |
| 8.71 | -30.00 | 4.98 | -30.00 | -21.12 | 105.36 | -21.32 | 137.41 | 0.5032 | -1080.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -25.95 | 104.34 | -22.34 | 142.53 | 0.5640 | 619.0 | 424.8 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -21.95 | 105.02 | -21.65 | 138.17 | 0.5152 | -659.0 | -486.4 | |
| 1.88 | 4.61 | 1.08 | 2.65 | -21.67 | 105.03 | -21.64 | 137.78 | 0.5121 | -841.2 | -535.3 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -21.19 | 104.97 | -21.70 | 137.02 | 0.5078 | -697.0 | -562.1 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -19.45 | 104.99 | -21.68 | 134.44 | 0.4899 | -864.0 | -611.9 | |
| 3.24 | 3.76 | 1.87 | 2.17 | -21.38 | 104.57 | -22.11 | 136.79 | 0.5139 | -1004.9 | -826.0 | |
| 0.00 | 3.41 | 0.00 | 1.99 | -22.47 | 104.35 | -22.32 | 138.06 | 0.5273 | -953.0 | -874.8 | |
| 5.97 | 38.58 | 3.50 | 22.60 | -23.11 | 104.13 | -22.54 | 138.68 | 0.5360 | -1174.8 | -527.1 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -21.00 | 104.45 | -22.22 | 136.10 | 0.5112 | -798.0 | -620.3 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -21.54 | 104.30 | -22.37 | 136.70 | 0.5183 | -946.0 | -859.8 | |
| 1.62 | 2.56 | 0.93 | 1.46 | -19.83 | 104.53 | -22.14 | 134.45 | 0.4987 | -963.8 | -707.6 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -23.93 | 103.78 | -22.90 | 139.33 | 0.5478 | -698.0 | -590.2 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -22.73 | 103.92 | -22.75 | 137.90 | 0.5342 | -675.0 | -540.2 | |
| 1.88 | 295.05 | 1.09 | 172.07 | -21.83 | 103.94 | -22.73 | 136.67 | 0.5249 | -915.5 | -382.8 | |
| 0.34 | 2.13 | 0.20 | 1.22 | -19.80 | 104.23 | -22.44 | 134.03 | 0.5017 | -1021.8 | -910.1 | |
| 0.00 | 5.63 | 0.00 | 3.26 | -21.35 | 103.99 | -22.69 | 136.05 | 0.5196 | -1010.0 | -818.4 | |
| 0.00 | 2.48 | 0.00 | 1.41 | -19.58 | 104.23 | -22.44 | 133.69 | 0.4995 | -980.0 | -774.7 | |
| 1.79 | -67.00 | 1.04 | -67.00 | -21.80 | 103.74 | -22.93 | 136.39 | 0.5267 | -1033.8 | 999999 | |
| 2.22 | -67.00 | 1.29 | -67.00 | -20.94 | 103.50 | -23.17 | 134.87 | 0.5207 | -1056.2 | 999999 | |
| 7.68 | -67.00 | 4.47 | -67.00 | -21.58 | 103.36 | -23.31 | 135.63 | 0.5284 | -1019.6 | 999999 | |
| 1.88 | -67.00 | 1.09 | -67.00 | -20.84 | 103.31 | -23.36 | 134.51 | 0.5218 | -1039.4 | 999999 | |
| 18.86 | -67.00 | 11.10 | -67.00 | -22.57 | 102.94 | -23.73 | 136.54 | 0.5425 | -844.3 | 999999 | |
| 29.87 | -67.00 | 17.43 | -67.00 | -21.39 | 102.98 | -23.69 | 134.92 | 0.5305 | -1073.3 | 999999 | |
| 18.52 | -67.00 | 10.73 | -67.00 | -20.31 | 102.95 | -23.72 | 133.30 | 0.5205 | -1123.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -20.57 | 102.08 | -24.59 | 132.71 | 0.5324 | -451.0 | -393.6 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -20.09 | 101.99 | -24.69 | 131.90 | 0.5291 | -631.0 | -460.0 | |
| 0.00 | 1.96 | 0.00 | 1.14 | -19.56 | 101.94 | -24.74 | 131.04 | 0.5248 | -919.0 | -738.6 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -20.76 | 101.70 | -24.98 | 132.58 | 0.5383 | -697.0 | -539.6 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -21.62 | 101.51 | -25.17 | 133.62 | 0.5483 | -622.0 | -419.2 | |
| 0.00 | 2.48 | 0.00 | 1.47 | -20.45 | 99.86 | -26.82 | 130.24 | 0.5559 | -714.0 | -498.6 | |
| 0.00 | 2.30 | 0.00 | 1.40 | -20.27 | 97.68 | -29.00 | 127.95 | 0.5789 | -670.0 | -467.9 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -18.58 | 96.10 | -30.57 | 124.13 | 0.5846 | -619.0 | -464.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
