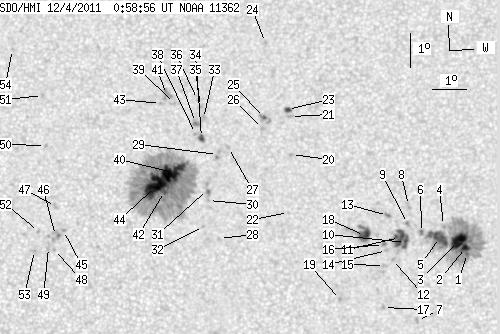

SDO HMI 2011-12-04 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.35 | 618.40 | 56.87 | 310.10 | 7.94 | 129.20 | 3.08 | 340.34 | 0.1555 | 12.2 | 136.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 152.19 | 0.86 | 76.75 | 6.31 | 135.36 | 9.23 | 302.17 | 0.1893 | -811.0 | -444.1 | |
| 2.90 | -1.00 | 1.46 | -1.00 | 6.49 | 135.30 | 9.18 | 303.13 | 0.1901 | -1256.4 | 999999 | |
| 14.00 | -1.00 | 7.06 | -1.00 | 6.67 | 135.09 | 8.97 | 304.52 | 0.1888 | -1375.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 7.14 | 134.65 | 8.53 | 307.95 | 0.1875 | -575.0 | -506.5 | |
| 14.85 | -1.00 | 7.48 | -1.00 | 6.79 | 134.52 | 8.40 | 306.81 | 0.1820 | -1167.1 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.33 | 6.94 | 133.99 | 7.86 | 309.30 | 0.1763 | -1196.0 | -934.3 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 4.33 | 133.83 | 7.71 | 296.20 | 0.1497 | -884.0 | -760.4 | |
| 0.00 | 2.56 | 0.00 | 1.29 | 7.74 | 133.61 | 7.49 | 314.09 | 0.1806 | -725.0 | -593.5 | |
| 0.00 | 2.05 | 0.00 | 1.03 | 7.20 | 133.57 | 7.45 | 312.01 | 0.1738 | -1034.0 | -817.5 | |
| 5.12 | 27.06 | 2.57 | 13.59 | 6.64 | 133.50 | 7.38 | 309.73 | 0.1666 | -946.8 | -777.0 | |
| 9.99 | -10.00 | 5.01 | -10.00 | 6.79 | 133.32 | 7.20 | 311.10 | 0.1659 | -1168.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.51 | 6.14 | 133.10 | 6.98 | 308.82 | 0.1558 | -843.0 | -670.0 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 7.44 | 132.97 | 6.85 | 315.40 | 0.1692 | -854.0 | -687.8 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 6.40 | 132.93 | 6.80 | 310.87 | 0.1564 | -997.0 | -763.2 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 5.96 | 132.86 | 6.74 | 308.89 | 0.1507 | -959.0 | -763.7 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 6.58 | 132.84 | 6.72 | 312.09 | 0.1573 | -1169.0 | -946.1 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.71 | 132.82 | 6.70 | 301.96 | 0.1376 | -985.0 | -827.2 | |
| 10.24 | 19.63 | 5.13 | 9.84 | 6.85 | 132.28 | 6.15 | 315.85 | 0.1535 | -1080.3 | -744.2 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 4.95 | 131.54 | 5.42 | 309.17 | 0.1219 | -866.0 | -721.7 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 9.26 | 130.12 | 4.00 | 335.56 | 0.1670 | -850.0 | -701.5 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 10.40 | 130.10 | 3.98 | 338.23 | 0.1849 | -1011.0 | -700.7 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 7.53 | 130.01 | 3.89 | 331.03 | 0.1395 | -731.0 | -603.5 | |
| 2.73 | 3.24 | 1.38 | 1.64 | 10.61 | 130.02 | 3.89 | 339.08 | 0.1877 | -1003.5 | -902.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 12.63 | 129.38 | 3.25 | 345.16 | 0.2173 | -1011.0 | -728.2 | |
| 1.02 | 6.83 | 0.52 | 3.44 | 10.37 | 129.32 | 3.20 | 342.15 | 0.1799 | -917.5 | -786.1 | |
| 0.00 | 2.13 | 0.00 | 1.07 | 10.04 | 129.26 | 3.13 | 341.90 | 0.1741 | -922.0 | -579.0 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 9.47 | 128.23 | 2.11 | 346.81 | 0.1599 | 720.0 | 602.9 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.76 | 127.95 | 1.83 | 343.66 | 0.1131 | -737.0 | -580.6 | |
| 0.00 | 3.58 | 0.00 | 1.80 | 9.26 | 127.90 | 1.78 | 348.55 | 0.1551 | 706.0 | 729.3 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 7.89 | 127.63 | 1.50 | 348.48 | 0.1309 | 893.0 | 629.3 | |
| 0.00 | 4.78 | 0.00 | 2.39 | 8.22 | 127.60 | 1.48 | 349.18 | 0.1364 | 907.0 | 799.0 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 7.12 | 127.48 | 1.35 | 348.41 | 0.1172 | -763.0 | -559.4 | |
| 0.00 | 3.07 | 0.00 | 1.54 | 10.34 | 127.49 | 1.36 | 352.15 | 0.1723 | 809.0 | 691.2 | |
| 2.73 | 3.76 | 1.37 | 1.88 | 9.77 | 127.43 | 1.30 | 352.04 | 0.1624 | 1134.5 | 893.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.70 | 127.40 | 1.28 | 352.92 | 0.1783 | 794.0 | 630.2 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 10.91 | 127.31 | 1.19 | 353.54 | 0.1817 | 814.0 | 556.1 | |
| 0.00 | 4.27 | 0.00 | 2.14 | 10.22 | 127.25 | 1.12 | 353.44 | 0.1697 | 1110.0 | 879.5 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 9.89 | 127.25 | 1.12 | 353.21 | 0.1641 | 1007.0 | 798.1 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 10.79 | 126.62 | 0.49 | 357.27 | 0.1787 | 888.0 | 620.4 | |
| 21.51 | 318.37 | 10.76 | 159.17 | 8.73 | 126.55 | 0.43 | 357.00 | 0.1429 | 1349.3 | 470.3 | |
| 0.00 | 6.49 | 0.00 | 3.27 | 11.06 | 126.38 | 0.25 | 358.63 | 0.1832 | 989.0 | 832.8 | |
| 1.71 | -40.00 | 0.85 | -40.00 | 8.16 | 126.32 | 0.19 | 358.56 | 0.1329 | 1108.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 10.79 | 126.20 | 0.07 | 359.59 | 0.1785 | 1019.0 | 847.4 | |
| 24.84 | -40.00 | 12.42 | -40.00 | 8.31 | 126.05 | -0.08 | 0.56 | 0.1355 | 1478.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 7.00 | 123.31 | -2.81 | 23.48 | 0.1229 | 1022.0 | 805.0 | |
| 0.00 | 7.00 | 0.00 | 3.49 | 6.85 | 123.07 | -3.05 | 25.74 | 0.1223 | 560.0 | 835.7 | |
| 0.00 | 2.30 | 0.00 | 1.15 | 7.71 | 123.07 | -3.06 | 22.99 | 0.1359 | 887.0 | 606.2 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 6.44 | 123.04 | -3.08 | 27.53 | 0.1160 | 905.0 | 634.2 | |
| 0.00 | 3.33 | 0.00 | 1.66 | 6.49 | 122.87 | -3.26 | 28.63 | 0.1184 | 830.0 | 621.5 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.53 | 122.75 | -3.37 | 20.40 | 0.1672 | 960.0 | 747.3 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 11.03 | 122.64 | -3.48 | 18.14 | 0.1922 | 907.0 | 683.1 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 6.97 | 122.56 | -3.56 | 28.89 | 0.1281 | 990.0 | 677.2 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 6.41 | 122.45 | -3.67 | 32.01 | 0.1207 | 1011.0 | 757.2 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 12.42 | 121.72 | -4.41 | 20.06 | 0.2198 | 857.0 | 618.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
