SDO HMI 2011-12-04 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.49 | 409.08 | 45.90 | 214.51 | 19.53 | 123.83 | -2.30 | 6.69 | 0.3305 | 256.8 | 114.8 | |
|
previous
or next observation for the same group /

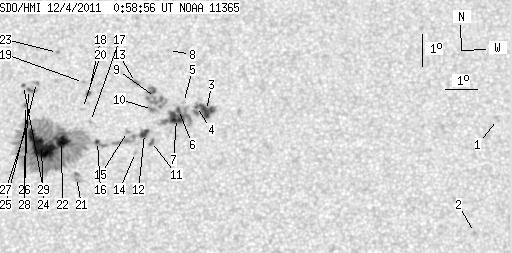

back to the solar disc SDO HMI 2011-12-04 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.91 | 19.96 | 136.85 | 10.73 | 332.23 | 0.3773 | 759.0 | 581.0 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 16.46 | 135.92 | 9.79 | 329.24 | 0.3204 | 828.0 | 632.1 | |
| 9.13 | 22.79 | 4.81 | 11.99 | 20.25 | 127.65 | 1.53 | 355.76 | 0.3394 | -1031.1 | -690.2 | |
| 1.02 | -3.00 | 0.54 | -3.00 | 20.38 | 127.33 | 1.21 | 356.65 | 0.3411 | -797.9 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 20.50 | 126.93 | 0.80 | 357.80 | 0.3429 | -540.0 | -303.8 | |
| 1.88 | 34.14 | 0.99 | 17.94 | 20.28 | 126.77 | 0.64 | 358.21 | 0.3392 | -911.8 | -822.9 | |
| 11.44 | -6.00 | 6.01 | -6.00 | 20.00 | 126.70 | 0.58 | 358.36 | 0.3345 | -1179.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 22.15 | 126.46 | 0.33 | 359.16 | 0.3696 | -684.0 | -500.5 | |
| 0.00 | 21.85 | 0.00 | 11.52 | 20.66 | 126.04 | -0.08 | 0.22 | 0.3452 | -1000.0 | -797.9 | |
| 0.00 | 4.69 | 0.00 | 2.47 | 20.28 | 125.95 | -0.17 | 0.49 | 0.3390 | -1130.0 | -895.3 | |
| 0.00 | 2.90 | 0.00 | 1.52 | 19.28 | 125.92 | -0.20 | 0.60 | 0.3224 | -1048.0 | -886.6 | |
| 4.78 | 18.95 | 2.50 | 9.92 | 19.53 | 125.70 | -0.42 | 1.23 | 0.3266 | -1127.3 | -804.6 | |
| 0.00 | 3.16 | 0.00 | 1.67 | 21.13 | 125.41 | -0.71 | 1.89 | 0.3532 | -842.0 | -733.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.94 | 125.42 | -0.70 | 2.11 | 0.3169 | -866.0 | -581.6 | |
| 0.00 | 2.65 | 0.00 | 1.39 | 19.59 | 125.17 | -0.96 | 2.76 | 0.3280 | -851.0 | -635.5 | |
| 1.71 | 268.27 | 0.89 | 140.44 | 19.28 | 124.23 | -1.89 | 5.55 | 0.3239 | 527.5 | 443.7 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.91 | 124.00 | -2.12 | 6.00 | 0.3346 | 667.0 | 507.2 | |
| 1.79 | 2.56 | 0.95 | 1.35 | 20.79 | 123.93 | -2.20 | 5.92 | 0.3491 | -916.7 | -548.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 21.13 | 123.76 | -2.36 | 6.24 | 0.3551 | -634.0 | -510.1 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 20.31 | 123.74 | -2.38 | 6.57 | 0.3418 | -667.0 | -519.8 | |
| 0.00 | 6.40 | 0.00 | 3.33 | 18.16 | 123.59 | -2.54 | 7.91 | 0.3067 | 465.0 | 424.5 | |
| 12.12 | -16.00 | 6.35 | -16.00 | 19.28 | 123.10 | -3.02 | 8.81 | 0.3263 | 1145.0 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 22.08 | 122.92 | -3.21 | 8.04 | 0.3722 | 948.0 | 812.7 | |
| 38.75 | -16.00 | 20.29 | -16.00 | 19.16 | 122.48 | -3.65 | 10.67 | 0.3260 | 1266.6 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.49 | 21.13 | 122.27 | -3.85 | 10.11 | 0.3585 | 809.0 | 639.3 | |
| 1.11 | 4.18 | 0.59 | 2.21 | 20.91 | 122.02 | -4.10 | 10.87 | 0.3557 | 912.8 | 816.3 | |
| 2.99 | -16.00 | 1.57 | -16.00 | 19.81 | 122.02 | -4.10 | 11.54 | 0.3381 | 821.3 | 999999 | |
| 0.34 | 1.79 | 0.18 | 0.95 | 20.41 | 121.94 | -4.18 | 11.38 | 0.3479 | 925.2 | 843.6 | |
| 0.43 | 1.28 | 0.23 | 0.68 | 21.04 | 121.86 | -4.26 | 11.21 | 0.3583 | 735.4 | 589.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
