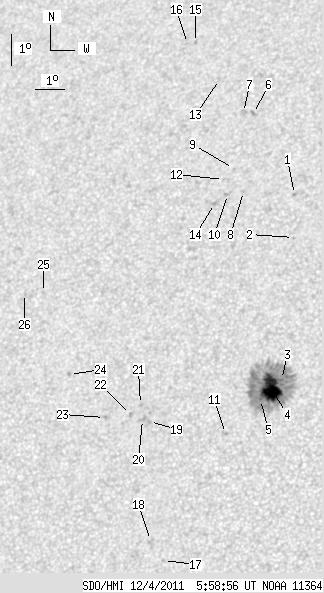

SDO HMI 2011-12-04 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.51 | 211.48 | 17.41 | 117.97 | 19.67 | 103.67 | -19.71 | 44.12 | 0.4592 | -536.6 | -290.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.74 | 25.27 | 104.19 | -19.19 | 35.35 | 0.5159 | -994.0 | -685.7 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 23.87 | 104.38 | -19.01 | 36.88 | 0.4983 | -674.0 | -580.1 | |
| 1.11 | 175.87 | 0.61 | 97.29 | 19.37 | 104.59 | -18.80 | 43.20 | 0.4459 | -872.3 | -371.0 | |
| 29.80 | -3.00 | 16.47 | -3.00 | 19.09 | 104.29 | -19.09 | 44.10 | 0.4461 | -1246.6 | 999999 | |
| 0.60 | -3.00 | 0.33 | -3.00 | 18.75 | 103.97 | -19.42 | 45.13 | 0.4460 | -796.6 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.53 | 27.93 | 102.26 | -21.13 | 34.64 | 0.5625 | -812.0 | -673.7 | |
| 0.00 | 3.33 | 0.00 | 2.00 | 27.96 | 101.89 | -21.50 | 35.04 | 0.5659 | -655.0 | -588.9 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 25.36 | 102.40 | -20.99 | 37.57 | 0.5329 | -818.0 | -622.2 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 26.11 | 101.91 | -21.48 | 37.24 | 0.5455 | -570.0 | -492.3 | |
| 0.00 | 1.88 | 0.00 | 1.10 | 25.26 | 101.86 | -21.53 | 38.37 | 0.5368 | -784.0 | -644.0 | |
| 0.00 | 2.73 | 0.00 | 1.51 | 17.69 | 102.94 | -20.45 | 48.37 | 0.4472 | 903.0 | 522.2 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 25.75 | 101.62 | -21.76 | 38.04 | 0.5441 | -572.0 | -443.2 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 29.07 | 100.77 | -22.61 | 35.08 | 0.5870 | -555.0 | -401.8 | |
| 0.00 | 2.48 | 0.00 | 1.45 | 24.97 | 101.46 | -21.93 | 39.24 | 0.5373 | -765.0 | -628.0 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 30.32 | 99.58 | -23.81 | 35.00 | 0.6098 | -675.0 | -550.0 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 30.28 | 99.29 | -24.10 | 35.35 | 0.6118 | -485.0 | -493.3 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 13.79 | 101.32 | -22.06 | 57.74 | 0.4332 | 818.0 | 595.8 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 14.40 | 100.83 | -22.55 | 57.07 | 0.4445 | 710.0 | 623.7 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 18.05 | 100.35 | -23.04 | 50.93 | 0.4812 | 831.0 | 689.4 | |
| 0.00 | 3.07 | 0.00 | 1.74 | 18.12 | 100.10 | -23.28 | 51.11 | 0.4847 | 827.0 | 670.4 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 18.58 | 99.97 | -23.42 | 50.48 | 0.4904 | 755.0 | 550.8 | |
| 0.00 | 1.88 | 0.00 | 1.07 | 18.27 | 99.68 | -23.71 | 51.33 | 0.4911 | 645.0 | 587.5 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 18.17 | 98.80 | -24.58 | 52.43 | 0.5008 | 658.0 | 602.8 | |
| 0.00 | 1.79 | 0.00 | 1.04 | 19.51 | 97.38 | -26.01 | 51.71 | 0.5287 | 790.0 | 677.4 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 22.09 | 95.96 | -27.43 | 49.18 | 0.5662 | 686.0 | 627.4 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 22.06 | 95.28 | -28.11 | 49.87 | 0.5733 | 636.0 | 582.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
