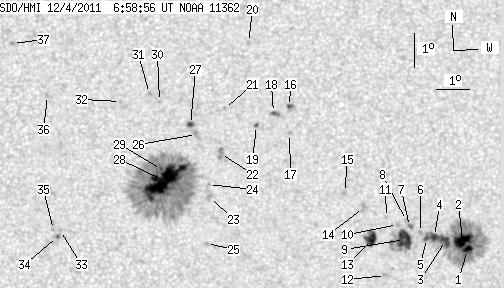

SDO HMI 2011-12-04 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.93 | 579.01 | 62.04 | 291.95 | 7.93 | 129.55 | 6.71 | 321.87 | 0.1843 | 47.0 | 95.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.93 | 152.82 | 2.00 | 77.97 | 6.43 | 135.50 | 12.66 | 295.39 | 0.2422 | -1270.4 | -457.8 | |
| 14.17 | -1.00 | 7.23 | -1.00 | 6.70 | 135.36 | 12.52 | 296.65 | 0.2419 | -1404.8 | 999999 | |
| 6.40 | -1.00 | 3.26 | -1.00 | 6.70 | 134.84 | 12.00 | 297.62 | 0.2341 | -1166.2 | 999999 | |
| 4.35 | -1.00 | 2.22 | -1.00 | 6.82 | 134.51 | 11.67 | 298.73 | 0.2301 | -1128.5 | 999999 | |
| 1.28 | -1.00 | 0.65 | -1.00 | 6.76 | 134.27 | 11.42 | 299.01 | 0.2259 | -1089.9 | 999999 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 6.94 | 134.09 | 11.25 | 300.09 | 0.2248 | -1003.0 | -820.0 | |
| 0.68 | 2.39 | 0.35 | 1.21 | 7.12 | 133.76 | 10.92 | 301.52 | 0.2215 | -755.6 | -863.4 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 7.30 | 133.67 | 10.83 | 302.41 | 0.2218 | -864.0 | -669.0 | |
| 17.93 | 34.15 | 9.09 | 17.31 | 6.73 | 133.60 | 10.76 | 300.36 | 0.2158 | -1115.0 | -727.1 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 7.18 | 133.40 | 10.55 | 302.61 | 0.2167 | -771.0 | -658.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 7.39 | 133.07 | 10.23 | 304.25 | 0.2140 | -857.0 | -597.1 | |
| 0.00 | 2.39 | 0.00 | 1.21 | 5.67 | 133.00 | 10.16 | 297.14 | 0.1982 | -850.0 | -788.8 | |
| 10.67 | 13.15 | 5.39 | 6.65 | 6.73 | 132.60 | 9.76 | 302.82 | 0.2012 | -1048.6 | -766.2 | |
| 0.00 | 4.35 | 0.00 | 2.20 | 7.69 | 132.38 | 9.54 | 307.29 | 0.2074 | -904.0 | -698.2 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 8.13 | 131.82 | 8.97 | 310.69 | 0.2046 | -835.0 | -644.3 | |
| 1.88 | 4.78 | 0.95 | 2.43 | 10.71 | 130.21 | 7.37 | 324.56 | 0.2184 | -884.0 | -862.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.90 | 130.19 | 7.35 | 322.32 | 0.2072 | -758.0 | -504.8 | |
| 1.37 | 4.01 | 0.69 | 2.03 | 10.53 | 129.72 | 6.88 | 325.90 | 0.2111 | -887.4 | -945.5 | |
| 1.11 | 1.28 | 0.56 | 0.65 | 10.14 | 129.20 | 6.36 | 326.91 | 0.2006 | -752.8 | -1053.5 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 12.64 | 129.01 | 6.17 | 333.46 | 0.2359 | -883.0 | -709.7 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 10.65 | 128.25 | 5.40 | 332.27 | 0.1998 | 760.0 | 597.9 | |
| 0.00 | 5.89 | 0.00 | 2.96 | 9.30 | 128.10 | 5.26 | 329.38 | 0.1785 | 793.0 | 747.4 | |
| 0.00 | 2.73 | 0.00 | 1.37 | 7.99 | 127.75 | 4.91 | 326.92 | 0.1561 | 757.0 | 745.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.38 | 127.73 | 4.89 | 328.38 | 0.1615 | 770.0 | 607.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.62 | 127.65 | 4.81 | 321.97 | 0.1358 | -915.0 | -732.1 | |
| 0.00 | 4.18 | 0.00 | 2.11 | 9.87 | 127.39 | 4.55 | 334.35 | 0.1813 | 1078.0 | 842.5 | |
| 2.56 | 2.99 | 1.29 | 1.51 | 10.17 | 127.21 | 4.37 | 335.91 | 0.1847 | 1054.8 | 777.2 | |
| 53.61 | 315.88 | 26.87 | 158.23 | 8.50 | 126.38 | 3.54 | 336.26 | 0.1525 | 1395.0 | 443.2 | |
| 1.62 | -28.00 | 0.81 | -28.00 | 8.82 | 126.33 | 3.49 | 337.44 | 0.1573 | 976.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 10.86 | 126.29 | 3.45 | 341.81 | 0.1900 | 953.0 | 845.7 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 11.10 | 125.99 | 3.15 | 343.66 | 0.1924 | 877.0 | 754.1 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 10.86 | 125.11 | 2.27 | 347.77 | 0.1847 | 835.0 | 646.1 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 7.01 | 123.30 | 0.46 | 355.95 | 0.1140 | 956.0 | 636.6 | |
| 1.37 | 2.99 | 0.68 | 1.49 | 6.83 | 123.21 | 0.37 | 356.64 | 0.1108 | 1000.1 | 850.4 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 7.04 | 123.10 | 0.25 | 357.78 | 0.1143 | 895.0 | 649.1 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 11.04 | 122.92 | 0.08 | 359.59 | 0.1836 | 1121.0 | 775.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.61 | 121.86 | -0.98 | 4.57 | 0.2112 | 925.0 | 682.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
