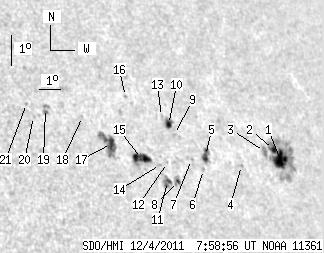

SDO HMI 2011-12-04 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.94 | 148.21 | 34.47 | 119.96 | 19.04 | 172.03 | 49.73 | 294.07 | 0.7908 | -142.6 | -33.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.77 | 68.04 | 12.73 | 58.87 | 18.84 | 175.14 | 52.85 | 292.85 | 0.8208 | -733.5 | -125.9 | |
| 2.56 | -1.00 | 2.20 | -1.00 | 19.16 | 174.92 | 52.63 | 293.29 | 0.8195 | -718.2 | 999999 | |
| 0.00 | 4.61 | 0.00 | 3.92 | 19.10 | 174.43 | 52.14 | 293.35 | 0.8148 | -697.0 | -611.3 | |
| 0.00 | 1.37 | 0.00 | 1.12 | 18.67 | 173.09 | 50.79 | 293.21 | 0.8010 | -414.0 | -389.6 | |
| 4.95 | 7.60 | 3.95 | 6.06 | 18.99 | 171.46 | 49.17 | 294.09 | 0.7860 | -768.7 | -662.1 | |
| 0.00 | 1.11 | 0.00 | 0.88 | 18.55 | 171.19 | 48.90 | 293.64 | 0.7821 | -627.0 | -539.6 | |
| 0.00 | 0.60 | 0.00 | 0.47 | 18.87 | 170.75 | 48.45 | 294.17 | 0.7785 | 101.0 | 117.1 | |
| 1.54 | 5.04 | 1.18 | 3.87 | 18.19 | 169.88 | 47.59 | 293.60 | 0.7678 | -356.3 | -317.1 | |
| 0.00 | 1.28 | 0.00 | 1.00 | 19.65 | 170.25 | 47.96 | 295.31 | 0.7760 | 589.0 | 434.9 | |
| 3.24 | 5.80 | 2.53 | 4.53 | 19.97 | 170.10 | 47.80 | 295.75 | 0.7754 | -527.6 | -222.3 | |
| 0.00 | 6.32 | 0.00 | 4.81 | 18.19 | 169.38 | 47.08 | 293.77 | 0.7626 | -748.0 | -675.2 | |
| 0.00 | 0.85 | 0.00 | 0.66 | 18.78 | 169.59 | 47.29 | 294.45 | 0.7666 | 192.0 | 160.1 | |
| 0.00 | 0.94 | 0.00 | 0.73 | 20.22 | 169.87 | 47.57 | 296.15 | 0.7739 | 238.0 | 236.5 | |
| 0.00 | 1.11 | 0.00 | 0.85 | 18.72 | 169.25 | 46.95 | 294.49 | 0.7628 | 115.0 | -4.5 | |
| 11.10 | 14.77 | 8.35 | 11.11 | 18.91 | 168.45 | 46.15 | 295.01 | 0.7552 | 580.7 | 145.9 | |
| 0.00 | 1.20 | 0.00 | 0.91 | 20.86 | 168.46 | 46.16 | 297.46 | 0.7620 | 674.0 | 506.4 | |
| 4.78 | 21.43 | 3.53 | 15.80 | 19.39 | 167.27 | 44.98 | 296.06 | 0.7445 | 618.3 | 643.5 | |
| 0.00 | 0.51 | 0.00 | 0.37 | 20.24 | 166.29 | 44.00 | 297.55 | 0.7374 | 735.0 | 665.2 | |
| 0.00 | 3.93 | 0.00 | 2.80 | 20.50 | 164.78 | 42.48 | 298.54 | 0.7225 | 595.0 | 568.0 | |
| 0.00 | 0.68 | 0.00 | 0.48 | 20.25 | 164.18 | 41.89 | 298.49 | 0.7150 | 402.0 | 444.4 | |
| 0.00 | 1.02 | 0.00 | 0.72 | 20.66 | 164.02 | 41.73 | 299.10 | 0.7151 | 613.0 | 447.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
