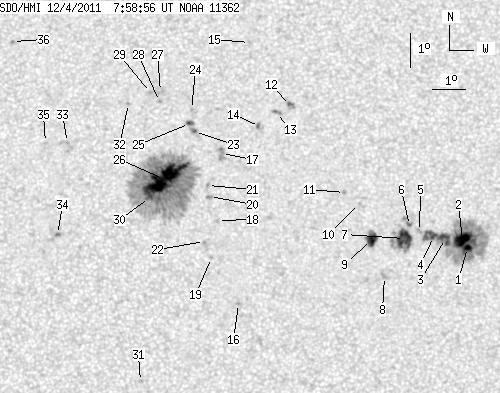

SDO HMI 2011-12-04 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.16 | 578.38 | 54.70 | 291.91 | 7.92 | 129.47 | 7.18 | 319.73 | 0.1888 | 40.5 | 109.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.93 | 148.28 | 2.01 | 75.84 | 6.46 | 135.54 | 13.24 | 294.54 | 0.2514 | -1317.0 | -473.8 | |
| 14.34 | -1.00 | 7.34 | -1.00 | 6.69 | 135.39 | 13.10 | 295.65 | 0.2508 | -1388.2 | 999999 | |
| 7.51 | -1.00 | 3.83 | -1.00 | 6.72 | 134.87 | 12.58 | 296.66 | 0.2431 | -1092.4 | 999999 | |
| 1.45 | -1.00 | 0.74 | -1.00 | 6.78 | 134.51 | 12.21 | 297.55 | 0.2380 | -1221.4 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.09 | 6.93 | 134.09 | 11.79 | 298.94 | 0.2329 | -943.0 | -651.8 | |
| 1.20 | 4.70 | 0.61 | 2.39 | 7.11 | 133.79 | 11.49 | 300.24 | 0.2299 | -833.0 | -732.2 | |
| 18.35 | 31.59 | 9.33 | 16.04 | 6.73 | 133.63 | 11.33 | 299.09 | 0.2243 | -1123.9 | -734.8 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 5.60 | 133.00 | 10.70 | 295.71 | 0.2061 | -864.0 | -811.6 | |
| 9.22 | 12.63 | 4.67 | 6.40 | 6.70 | 132.63 | 10.33 | 301.24 | 0.2093 | -1093.3 | -810.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 7.77 | 132.29 | 9.99 | 306.37 | 0.2145 | -771.0 | -593.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.10 | 131.84 | 9.55 | 308.85 | 0.2118 | -1020.0 | -803.3 | |
| 0.00 | 4.70 | 0.00 | 2.39 | 10.70 | 130.27 | 7.98 | 322.41 | 0.2246 | -1072.0 | -845.9 | |
| 0.00 | 3.50 | 0.00 | 1.78 | 10.49 | 129.84 | 7.55 | 323.34 | 0.2173 | -959.0 | -885.7 | |
| 0.00 | 3.16 | 0.00 | 1.60 | 10.07 | 129.32 | 7.02 | 324.10 | 0.2062 | -377.0 | -613.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 12.60 | 129.08 | 6.78 | 331.20 | 0.2403 | -884.0 | -666.4 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 4.81 | 128.61 | 6.31 | 304.41 | 0.1334 | -925.0 | -735.8 | |
| 0.00 | 8.28 | 0.00 | 4.17 | 9.27 | 128.16 | 5.86 | 326.52 | 0.1835 | 682.0 | 698.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 7.27 | 128.01 | 5.71 | 320.04 | 0.1544 | -575.0 | -340.6 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.17 | 127.82 | 5.52 | 315.92 | 0.1381 | -887.0 | -530.6 | |
| 0.00 | 2.73 | 0.00 | 1.37 | 7.98 | 127.78 | 5.48 | 324.00 | 0.1617 | 950.0 | 741.2 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 8.31 | 127.72 | 5.43 | 325.45 | 0.1657 | 793.0 | 573.1 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 6.64 | 127.61 | 5.32 | 319.30 | 0.1418 | -786.0 | -732.6 | |
| 0.43 | 2.30 | 0.22 | 1.16 | 9.92 | 127.36 | 5.06 | 332.05 | 0.1862 | 1197.0 | 988.5 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 10.58 | 127.28 | 4.98 | 334.01 | 0.1956 | 834.0 | 678.1 | |
| 1.45 | 3.24 | 0.73 | 1.64 | 10.16 | 127.21 | 4.91 | 333.33 | 0.1887 | 1104.4 | 830.0 | |
| 48.49 | 323.63 | 24.32 | 162.21 | 8.49 | 126.44 | 4.14 | 332.80 | 0.1570 | 1412.5 | 448.2 | |
| 0.00 | 2.99 | 0.00 | 1.51 | 11.13 | 126.35 | 4.05 | 339.38 | 0.1979 | 633.0 | 597.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 10.82 | 126.32 | 4.02 | 338.98 | 0.1928 | 1015.0 | 741.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.10 | 126.05 | 3.75 | 340.75 | 0.1956 | 902.0 | 698.9 | |
| 1.79 | -26.00 | 0.90 | -26.00 | 7.95 | 125.98 | 3.69 | 333.85 | 0.1452 | 1158.0 | 999999 | |
| 0.00 | 1.96 | 0.00 | 0.97 | 2.50 | 125.68 | 3.39 | 300.55 | 0.0689 | -793.0 | -670.6 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 10.77 | 125.38 | 3.08 | 343.47 | 0.1867 | 958.0 | 696.8 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.60 | 123.54 | 1.24 | 352.29 | 0.1602 | 910.0 | 692.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.85 | 123.23 | 0.94 | 351.64 | 0.1123 | 1156.0 | 984.4 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 9.60 | 122.88 | 0.59 | 356.35 | 0.1591 | 831.0 | 662.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.63 | 121.89 | -0.41 | 1.89 | 0.2112 | 825.0 | 689.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
