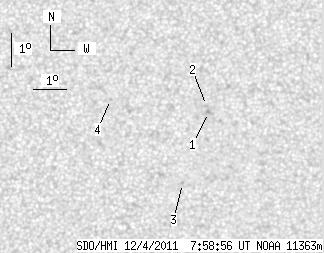

SDO HMI 2011-12-04 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.46 | 0.00 | 2.77 | -10.41 | 128.05 | 5.76 | 207.45 | 0.2150 | 930.5 | 715.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 1.17 | -10.15 | 128.66 | 6.36 | 210.55 | 0.2155 | 1033.0 | 786.4 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -9.94 | 128.59 | 6.30 | 210.81 | 0.2119 | 847.0 | 589.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -12.29 | 127.91 | 5.62 | 203.37 | 0.2422 | 961.0 | 743.5 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -9.75 | 125.70 | 3.40 | 198.20 | 0.1883 | 881.0 | 694.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
