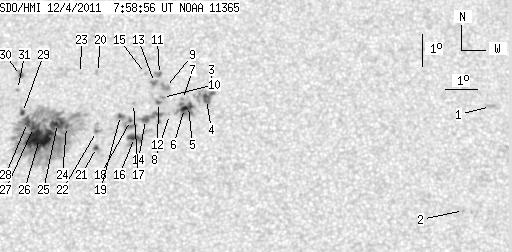

SDO HMI 2011-12-04 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.51 | 386.02 | 43.73 | 202.24 | 19.36 | 123.81 | 1.51 | 355.83 | 0.3277 | 295.5 | 139.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.12 | 0.00 | 2.78 | 19.93 | 136.73 | 14.44 | 324.85 | 0.4089 | 927.0 | 517.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 16.71 | 135.60 | 13.31 | 321.71 | 0.3573 | 922.0 | 780.0 | |
| 1.20 | 19.04 | 0.63 | 10.06 | 20.38 | 127.84 | 5.54 | 345.10 | 0.3535 | -711.2 | -677.1 | |
| 4.78 | -3.00 | 2.53 | -3.00 | 20.16 | 127.67 | 5.37 | 345.36 | 0.3493 | -981.9 | 999999 | |
| 0.34 | 15.79 | 0.18 | 8.32 | 19.94 | 127.10 | 4.80 | 346.71 | 0.3435 | -1174.2 | -948.9 | |
| 2.56 | -5.00 | 1.35 | -5.00 | 19.88 | 126.97 | 4.67 | 347.00 | 0.3421 | -1290.6 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 20.16 | 126.91 | 4.62 | 347.34 | 0.3464 | -839.0 | -655.5 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 19.69 | 126.49 | 4.19 | 348.17 | 0.3374 | -746.0 | -535.3 | |
| 0.00 | 6.06 | 0.00 | 3.20 | 20.54 | 126.39 | 4.09 | 348.97 | 0.3507 | -881.0 | -787.0 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 20.23 | 126.28 | 3.99 | 349.06 | 0.3453 | -1099.0 | -860.6 | |
| 1.54 | 3.67 | 0.81 | 1.94 | 20.95 | 126.21 | 3.91 | 349.67 | 0.3567 | -731.1 | -698.3 | |
| 1.20 | 2.22 | 0.63 | 1.17 | 20.07 | 126.15 | 3.86 | 349.32 | 0.3423 | -1026.5 | -795.4 | |
| 0.00 | 3.76 | 0.00 | 1.99 | 20.70 | 126.04 | 3.75 | 349.96 | 0.3522 | -947.0 | -829.4 | |
| 3.93 | 15.20 | 2.06 | 7.98 | 19.54 | 125.73 | 3.44 | 350.18 | 0.3325 | -962.5 | -902.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.98 | 125.76 | 3.47 | 350.83 | 0.3560 | -774.0 | -637.4 | |
| 7.17 | 17.93 | 3.75 | 9.37 | 18.98 | 125.38 | 3.08 | 350.89 | 0.3223 | -1026.0 | -556.3 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 20.04 | 125.36 | 3.07 | 351.45 | 0.3397 | -861.0 | -687.9 | |
| 1.20 | 15.20 | 0.63 | 7.97 | 19.51 | 125.26 | 2.96 | 351.49 | 0.3307 | -787.1 | -602.9 | |
| 1.88 | -18.00 | 0.99 | -18.00 | 19.66 | 124.95 | 2.65 | 352.44 | 0.3326 | -631.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 21.01 | 124.24 | 1.95 | 354.83 | 0.3534 | 741.0 | 713.0 | |
| 1.02 | 3.84 | 0.53 | 2.00 | 18.67 | 124.18 | 1.89 | 354.28 | 0.3147 | 956.8 | 778.4 | |
| 1.71 | 5.29 | 0.89 | 2.77 | 19.16 | 124.19 | 1.89 | 354.43 | 0.3229 | 737.8 | 638.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 20.98 | 123.71 | 1.41 | 356.25 | 0.3522 | -743.0 | -572.2 | |
| 1.62 | 254.91 | 0.85 | 133.18 | 19.32 | 123.25 | 0.96 | 357.21 | 0.3244 | 973.0 | 447.7 | |
| 11.52 | -24.00 | 6.03 | -24.00 | 19.41 | 122.97 | 0.67 | 358.04 | 0.3257 | 965.9 | 999999 | |
| 31.42 | -24.00 | 16.40 | -24.00 | 18.95 | 122.41 | 0.11 | 359.67 | 0.3178 | 1318.3 | 999999 | |
| 2.99 | -24.00 | 1.56 | -24.00 | 19.29 | 122.22 | -0.08 | 0.23 | 0.3235 | 993.3 | 999999 | |
| 3.93 | -24.00 | 2.06 | -24.00 | 19.45 | 122.03 | -0.27 | 0.77 | 0.3261 | 934.7 | 999999 | |
| 1.88 | 3.24 | 0.99 | 1.70 | 19.76 | 121.87 | -0.42 | 1.21 | 0.3313 | 743.8 | 494.2 | |
| 1.62 | 3.41 | 0.86 | 1.81 | 20.92 | 121.81 | -0.49 | 1.31 | 0.3505 | 903.8 | 721.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 20.48 | 121.71 | -0.58 | 1.60 | 0.3433 | 889.0 | 693.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
