SDO HMI 2011-12-04 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.67 | 553.30 | 57.08 | 279.65 | 7.84 | 129.54 | 7.79 | 316.93 | 0.1943 | -101.8 | 121.9 | |
|
previous
or next observation for the same group /

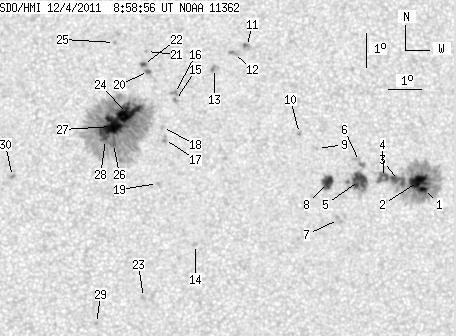

back to the solar disc SDO HMI 2011-12-04 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.99 | 146.57 | 1.53 | 75.14 | 6.45 | 135.60 | 13.85 | 293.59 | 0.2607 | -1286.1 | -447.7 | |
| 15.45 | -1.00 | 7.92 | -1.00 | 6.69 | 135.45 | 13.70 | 294.66 | 0.2601 | -1361.5 | 999999 | |
| 9.56 | -1.00 | 4.89 | -1.00 | 6.72 | 134.84 | 13.09 | 295.75 | 0.2509 | -1129.5 | 999999 | |
| 7.85 | -1.00 | 4.01 | -1.00 | 6.81 | 134.39 | 12.64 | 296.87 | 0.2447 | -1041.2 | 999999 | |
| 16.13 | 29.19 | 8.21 | 14.86 | 6.72 | 133.66 | 11.90 | 297.91 | 0.2329 | -1132.5 | -713.3 | |
| 0.00 | 6.06 | 0.00 | 3.09 | 7.28 | 133.67 | 11.92 | 300.01 | 0.2377 | -810.0 | -734.1 | |
| 0.00 | 3.93 | 0.00 | 1.99 | 5.56 | 132.99 | 11.24 | 294.50 | 0.2142 | -883.0 | -752.9 | |
| 11.10 | 12.46 | 5.63 | 6.32 | 6.66 | 132.68 | 10.93 | 299.71 | 0.2179 | -1078.0 | -718.2 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 7.67 | 132.40 | 10.65 | 304.31 | 0.2228 | -817.0 | -618.6 | |
| 0.00 | 1.79 | 0.00 | 0.91 | 8.12 | 131.87 | 10.12 | 307.35 | 0.2198 | -942.0 | -745.1 | |
| 0.00 | 4.01 | 0.00 | 2.04 | 10.72 | 130.33 | 8.58 | 320.46 | 0.2314 | -990.0 | -846.7 | |
| 0.00 | 3.41 | 0.00 | 1.74 | 10.51 | 129.93 | 8.18 | 321.19 | 0.2243 | -979.0 | -876.9 | |
| 0.00 | 4.18 | 0.00 | 2.12 | 10.06 | 129.35 | 7.59 | 321.95 | 0.2121 | -606.0 | -595.7 | |
| 0.00 | 2.22 | 0.00 | 1.11 | 4.83 | 128.69 | 6.94 | 302.12 | 0.1427 | -902.0 | -748.7 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 9.11 | 128.15 | 6.40 | 323.70 | 0.1867 | 914.0 | 775.0 | |
| 0.00 | 3.50 | 0.00 | 1.77 | 9.32 | 128.12 | 6.37 | 324.47 | 0.1893 | 889.0 | 783.2 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 7.95 | 127.80 | 6.05 | 321.17 | 0.1672 | 854.0 | 679.1 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 8.30 | 127.74 | 5.99 | 322.74 | 0.1715 | 766.0 | 441.6 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.64 | 127.57 | 5.82 | 316.72 | 0.1476 | -740.0 | -612.7 | |
| 1.62 | 6.74 | 0.82 | 3.40 | 9.98 | 127.35 | 5.60 | 329.74 | 0.1916 | 987.3 | 817.3 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 10.58 | 127.30 | 5.55 | 331.49 | 0.2001 | 913.0 | 738.8 | |
| 1.71 | -20.00 | 0.86 | -20.00 | 10.19 | 127.20 | 5.45 | 330.94 | 0.1934 | 1055.7 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.11 | 3.26 | 127.13 | 5.37 | 297.27 | 0.1057 | -867.0 | -639.2 | |
| 20.23 | 312.34 | 10.16 | 156.68 | 8.72 | 126.70 | 4.95 | 329.20 | 0.1673 | 1330.0 | 470.2 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 10.85 | 126.34 | 4.59 | 336.38 | 0.1970 | 955.0 | 748.2 | |
| 2.22 | -24.00 | 1.11 | -24.00 | 7.83 | 126.27 | 4.52 | 328.54 | 0.1503 | 625.0 | 999999 | |
| 22.79 | -24.00 | 11.43 | -24.00 | 8.33 | 126.22 | 4.46 | 330.54 | 0.1573 | 1464.3 | 999999 | |
| 1.02 | -24.00 | 0.51 | -24.00 | 7.95 | 126.03 | 4.28 | 330.31 | 0.1499 | 1140.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 2.49 | 125.73 | 3.98 | 296.67 | 0.0779 | -983.0 | -766.2 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 6.85 | 123.25 | 1.50 | 346.77 | 0.1141 | 1158.0 | 944.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
