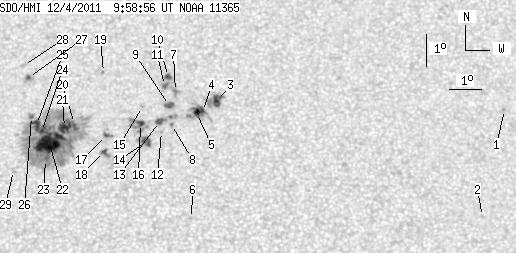

SDO HMI 2011-12-04 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.13 | 374.02 | 43.05 | 196.01 | 19.30 | 123.62 | 2.42 | 353.15 | 0.3279 | 286.4 | 159.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.47 | 19.95 | 136.91 | 15.71 | 322.65 | 0.4212 | 868.0 | 744.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 16.63 | 135.90 | 14.70 | 318.85 | 0.3711 | 752.0 | 526.1 | |
| 8.54 | 17.50 | 4.52 | 9.27 | 20.25 | 127.72 | 6.52 | 342.52 | 0.3559 | -882.5 | -677.5 | |
| 1.11 | 21.77 | 0.59 | 11.49 | 19.90 | 127.23 | 6.03 | 343.45 | 0.3482 | -1038.5 | -795.6 | |
| 2.82 | -4.00 | 1.49 | -4.00 | 19.87 | 127.04 | 5.84 | 343.92 | 0.3469 | -1294.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 16.58 | 126.78 | 5.57 | 341.44 | 0.2937 | -646.0 | -544.0 | |
| 0.00 | 4.78 | 0.00 | 2.53 | 20.53 | 126.40 | 5.20 | 346.10 | 0.3545 | -998.0 | -833.7 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 19.50 | 126.24 | 5.04 | 345.74 | 0.3375 | -1072.0 | -845.8 | |
| 0.00 | 5.89 | 0.00 | 3.11 | 20.09 | 126.20 | 4.99 | 346.31 | 0.3468 | -1199.0 | -917.6 | |
| 1.71 | 2.99 | 0.91 | 1.59 | 21.00 | 126.20 | 4.99 | 346.95 | 0.3613 | -849.1 | -693.5 | |
| 0.00 | 2.90 | 0.00 | 1.54 | 20.72 | 126.06 | 4.85 | 347.11 | 0.3562 | -975.0 | -928.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 19.28 | 125.92 | 4.72 | 346.45 | 0.3327 | -848.0 | -569.9 | |
| 4.10 | 10.07 | 2.15 | 5.30 | 19.59 | 125.87 | 4.66 | 346.83 | 0.3375 | -1073.2 | -930.9 | |
| 5.89 | 11.86 | 3.08 | 6.21 | 18.97 | 125.44 | 4.24 | 347.57 | 0.3259 | -1105.5 | -713.1 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 20.06 | 125.35 | 4.14 | 348.56 | 0.3432 | -742.0 | -524.6 | |
| 3.07 | 16.39 | 1.61 | 8.60 | 19.53 | 125.27 | 4.06 | 348.43 | 0.3344 | -871.9 | -584.5 | |
| 1.88 | 4.01 | 0.98 | 2.10 | 19.15 | 124.19 | 2.99 | 351.25 | 0.3252 | 811.5 | 611.2 | |
| 2.05 | 4.87 | 1.07 | 2.54 | 18.65 | 124.12 | 2.92 | 351.21 | 0.3168 | 946.5 | 765.0 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 21.13 | 124.14 | 2.93 | 352.29 | 0.3572 | 829.0 | 701.8 | |
| 0.34 | 251.20 | 0.18 | 131.29 | 19.53 | 123.20 | 1.99 | 354.27 | 0.3292 | 909.2 | 455.2 | |
| 8.54 | -20.00 | 4.47 | -20.00 | 19.40 | 122.88 | 1.68 | 355.13 | 0.3267 | 981.0 | 999999 | |
| 32.86 | -20.00 | 17.16 | -20.00 | 18.94 | 122.41 | 1.20 | 356.41 | 0.3184 | 1280.8 | 999999 | |
| 0.77 | -20.00 | 0.40 | -20.00 | 18.41 | 122.28 | 1.07 | 356.69 | 0.3095 | 606.2 | 999999 | |
| 1.45 | -20.00 | 0.76 | -20.00 | 19.28 | 122.16 | 0.95 | 357.20 | 0.3238 | 1016.2 | 999999 | |
| 5.21 | -20.00 | 2.73 | -20.00 | 19.50 | 122.01 | 0.80 | 357.69 | 0.3273 | 871.0 | 999999 | |
| 0.34 | 2.73 | 0.18 | 1.43 | 19.75 | 121.85 | 0.64 | 358.16 | 0.3314 | 906.8 | 700.2 | |
| 1.45 | 4.27 | 0.77 | 2.26 | 20.97 | 121.76 | 0.55 | 358.52 | 0.3515 | 890.4 | 761.9 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 21.35 | 121.60 | 0.40 | 358.96 | 0.3577 | 726.0 | 522.5 | |
| 0.00 | 2.13 | 0.00 | 1.11 | 18.07 | 121.28 | 0.08 | 359.75 | 0.3033 | -651.0 | -446.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
