SDO HMI 2011-12-04 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.41 | 374.82 | 45.85 | 196.51 | 19.36 | 123.59 | 2.93 | 351.71 | 0.3300 | 348.4 | 160.2 | |
|
previous
or next observation for the same group /

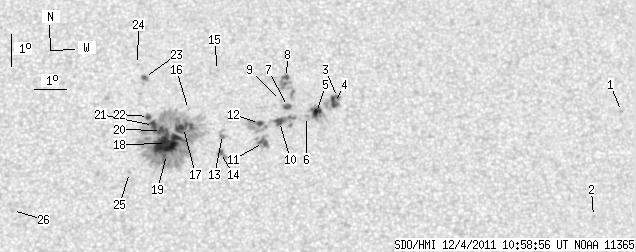

back to the solar disc SDO HMI 2011-12-04 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.65 | 19.91 | 136.92 | 16.26 | 321.66 | 0.4262 | 947.0 | 698.0 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 16.65 | 135.71 | 15.05 | 318.25 | 0.3752 | 775.0 | 620.2 | |
| 1.28 | 15.62 | 0.68 | 8.28 | 20.36 | 127.81 | 7.15 | 341.05 | 0.3611 | -736.3 | -802.9 | |
| 5.21 | -3.00 | 2.76 | -3.00 | 20.21 | 127.71 | 7.05 | 341.15 | 0.3581 | -937.7 | 999999 | |
| 5.63 | 15.45 | 2.98 | 8.16 | 19.89 | 127.13 | 6.47 | 342.32 | 0.3503 | -1186.2 | -774.3 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 19.77 | 126.81 | 6.15 | 343.03 | 0.3468 | -1036.0 | -927.6 | |
| 3.93 | 4.18 | 2.07 | 2.21 | 20.08 | 126.22 | 5.56 | 344.82 | 0.3490 | -982.3 | -950.3 | |
| 1.37 | 17.07 | 0.73 | 9.05 | 21.00 | 126.22 | 5.56 | 345.52 | 0.3634 | -809.8 | -793.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.27 | 126.00 | 5.34 | 345.52 | 0.3511 | -639.0 | -561.6 | |
| 5.38 | 33.20 | 2.83 | 17.46 | 19.61 | 125.95 | 5.29 | 345.15 | 0.3405 | -1040.8 | -660.8 | |
| 4.95 | 12.46 | 2.59 | 6.53 | 18.96 | 125.43 | 4.77 | 346.06 | 0.3279 | -1083.5 | -743.1 | |
| 2.22 | -10.00 | 1.17 | -10.00 | 19.55 | 125.32 | 4.66 | 346.81 | 0.3369 | -949.4 | 999999 | |
| 0.00 | 5.29 | 0.00 | 2.77 | 19.21 | 124.15 | 3.49 | 349.85 | 0.3275 | 899.0 | 723.6 | |
| 2.05 | 4.95 | 1.07 | 2.58 | 18.65 | 124.08 | 3.42 | 349.73 | 0.3181 | 969.7 | 709.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 21.22 | 124.04 | 3.38 | 351.18 | 0.3597 | 781.0 | 649.0 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 19.99 | 123.10 | 2.44 | 353.17 | 0.3377 | 252.0 | 109.1 | |
| 11.35 | 253.65 | 5.95 | 132.62 | 19.43 | 122.93 | 2.27 | 353.43 | 0.3281 | 979.1 | 454.5 | |
| 30.55 | -17.00 | 15.96 | -17.00 | 18.93 | 122.39 | 1.73 | 354.83 | 0.3190 | 1274.4 | 999999 | |
| 0.94 | -17.00 | 0.49 | -17.00 | 18.59 | 122.39 | 1.73 | 354.74 | 0.3133 | 1166.2 | 999999 | |
| 4.10 | -17.00 | 2.14 | -17.00 | 19.33 | 122.24 | 1.58 | 355.39 | 0.3255 | 949.1 | 999999 | |
| 4.78 | -17.00 | 2.50 | -17.00 | 19.49 | 121.99 | 1.33 | 356.15 | 0.3278 | 909.8 | 999999 | |
| 2.48 | -17.00 | 1.30 | -17.00 | 19.77 | 121.84 | 1.18 | 356.65 | 0.3322 | 761.9 | 999999 | |
| 1.19 | 3.07 | 0.63 | 1.62 | 21.00 | 121.72 | 1.06 | 357.18 | 0.3523 | 915.5 | 805.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 21.41 | 121.50 | 0.84 | 357.81 | 0.3589 | 598.0 | 537.9 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 18.03 | 121.23 | 0.57 | 358.19 | 0.3028 | -704.0 | -525.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.85 | 117.62 | -3.04 | 10.22 | 0.2876 | -770.0 | -558.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
