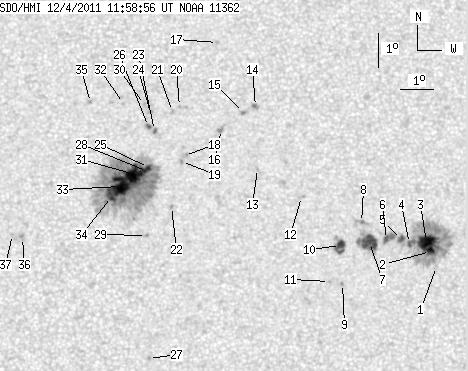

SDO HMI 2011-12-04 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.92 | 524.46 | 52.87 | 266.58 | 7.85 | 129.92 | 9.80 | 310.29 | 0.2194 | 87.0 | 70.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | 5.96 | 135.82 | 15.71 | 289.55 | 0.2871 | -35.0 | -19.7 | |
| 3.33 | 151.39 | 1.72 | 78.23 | 6.41 | 135.65 | 15.54 | 291.22 | 0.2869 | -1321.1 | -432.0 | |
| 15.19 | -2.00 | 7.85 | -2.00 | 6.70 | 135.54 | 15.43 | 292.34 | 0.2869 | -1350.1 | 999999 | |
| 1.96 | -2.00 | 1.01 | -2.00 | 6.64 | 135.01 | 14.90 | 292.83 | 0.2784 | -1054.5 | 999999 | |
| 3.50 | -2.00 | 1.80 | -2.00 | 6.76 | 134.77 | 14.66 | 293.56 | 0.2754 | -1078.3 | 999999 | |
| 2.65 | -2.00 | 1.36 | -2.00 | 6.76 | 134.31 | 14.20 | 294.22 | 0.2683 | -1042.8 | 999999 | |
| 17.66 | 32.34 | 9.06 | 16.58 | 6.68 | 133.79 | 13.67 | 294.71 | 0.2596 | -1059.5 | -758.1 | |
| 0.00 | 4.61 | 0.00 | 2.36 | 7.27 | 133.56 | 13.45 | 297.16 | 0.2604 | -1045.0 | -782.5 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 5.46 | 132.93 | 12.82 | 291.48 | 0.2384 | -1030.0 | -918.6 | |
| 5.97 | 13.48 | 3.05 | 6.89 | 6.59 | 132.90 | 12.78 | 295.84 | 0.2454 | -1102.2 | -860.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 5.52 | 132.54 | 12.42 | 292.32 | 0.2326 | -913.0 | -725.9 | |
| 0.00 | 1.79 | 0.00 | 0.91 | 8.05 | 131.75 | 11.64 | 303.41 | 0.2404 | -640.0 | -505.4 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 8.89 | 130.44 | 10.32 | 309.54 | 0.2306 | -784.0 | -638.4 | |
| 0.00 | 3.33 | 0.00 | 1.70 | 10.74 | 130.43 | 10.32 | 315.34 | 0.2516 | -1013.0 | -842.4 | |
| 0.00 | 2.30 | 0.00 | 1.18 | 10.56 | 130.06 | 9.95 | 315.86 | 0.2450 | -1137.0 | -906.1 | |
| 0.00 | 4.35 | 0.00 | 2.21 | 10.05 | 129.38 | 9.26 | 316.37 | 0.2308 | -1048.0 | -759.5 | |
| 0.00 | 1.88 | 0.00 | 0.96 | 12.67 | 129.34 | 9.23 | 323.46 | 0.2640 | -867.0 | -657.4 | |
| 0.00 | 3.41 | 0.00 | 1.73 | 9.28 | 128.23 | 8.12 | 317.63 | 0.2079 | 732.0 | 677.8 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 9.10 | 128.14 | 8.03 | 317.37 | 0.2045 | 980.0 | 866.5 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 10.74 | 128.12 | 8.01 | 322.47 | 0.2257 | 808.0 | 682.4 | |
| 0.00 | 2.22 | 0.00 | 1.13 | 10.59 | 127.90 | 7.79 | 322.80 | 0.2214 | 785.0 | 627.8 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 7.76 | 127.81 | 7.70 | 313.64 | 0.1843 | 919.0 | 699.8 | |
| 0.51 | 1.88 | 0.26 | 0.95 | 10.02 | 127.34 | 7.23 | 323.21 | 0.2079 | 993.5 | 816.4 | |
| 0.00 | 2.30 | 0.00 | 1.17 | 10.56 | 127.24 | 7.12 | 325.14 | 0.2143 | 794.0 | 634.4 | |
| 2.30 | 278.19 | 1.16 | 139.97 | 8.92 | 127.14 | 7.03 | 320.51 | 0.1909 | 1020.4 | 469.5 | |
| 1.62 | 2.13 | 0.82 | 1.08 | 10.14 | 127.17 | 7.05 | 324.24 | 0.2078 | 1085.3 | 985.8 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 3.25 | 127.07 | 6.95 | 291.76 | 0.1307 | -895.0 | -798.5 | |
| 0.85 | -25.00 | 0.43 | -25.00 | 8.80 | 127.11 | 7.00 | 320.23 | 0.1890 | 984.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.89 | 127.05 | 6.93 | 312.97 | 0.1645 | -831.0 | -621.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 10.80 | 127.06 | 6.95 | 326.45 | 0.2160 | 855.0 | 704.9 | |
| 19.71 | -25.00 | 9.93 | -25.00 | 8.71 | 126.72 | 6.60 | 321.54 | 0.1836 | 1299.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 10.84 | 126.42 | 6.31 | 328.99 | 0.2106 | 842.0 | 618.8 | |
| 23.04 | -25.00 | 11.59 | -25.00 | 8.35 | 126.26 | 6.15 | 322.27 | 0.1739 | 1427.8 | 999999 | |
| 5.63 | -25.00 | 2.83 | -25.00 | 8.05 | 126.01 | 5.90 | 322.30 | 0.1673 | 1223.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 10.87 | 125.43 | 5.32 | 333.21 | 0.2028 | 939.0 | 714.7 | |
| 0.00 | 2.56 | 0.00 | 1.28 | 6.84 | 123.34 | 3.23 | 333.17 | 0.1245 | 902.0 | 785.4 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 6.93 | 123.04 | 2.93 | 335.64 | 0.1237 | 1061.0 | 777.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
