SDO HMI 2011-12-04 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.37 | 354.99 | 45.85 | 186.30 | 19.36 | 123.68 | 3.57 | 349.96 | 0.3320 | 366.2 | 130.4 | |
|
previous
or next observation for the same group /

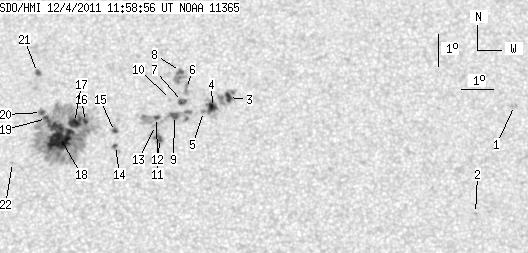

back to the solar disc SDO HMI 2011-12-04 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.65 | 0.00 | 1.45 | 19.94 | 136.90 | 16.78 | 320.84 | 0.4317 | 589.0 | 657.9 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 16.59 | 135.32 | 15.20 | 317.85 | 0.3761 | 755.0 | 642.9 | |
| 4.27 | 16.98 | 2.26 | 9.01 | 20.21 | 127.70 | 7.59 | 339.83 | 0.3611 | -963.8 | -732.8 | |
| 4.61 | 14.76 | 2.44 | 7.81 | 19.89 | 127.18 | 7.07 | 340.80 | 0.3534 | -1225.9 | -768.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 19.77 | 126.89 | 6.78 | 341.41 | 0.3500 | -1131.0 | -1000.5 | |
| 0.00 | 5.63 | 0.00 | 2.99 | 20.49 | 126.38 | 6.27 | 343.35 | 0.3586 | -909.0 | -775.4 | |
| 4.35 | 4.61 | 2.30 | 2.44 | 20.08 | 126.24 | 6.13 | 343.35 | 0.3516 | -920.6 | -1129.3 | |
| 1.96 | 10.84 | 1.04 | 5.76 | 21.02 | 126.22 | 6.10 | 344.21 | 0.3662 | -753.3 | -828.1 | |
| 4.95 | 16.04 | 2.61 | 8.46 | 19.64 | 125.97 | 5.86 | 343.67 | 0.3435 | -994.8 | -903.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.14 | 125.86 | 5.75 | 344.37 | 0.3509 | -735.0 | -457.6 | |
| 3.41 | 10.41 | 1.79 | 5.46 | 18.92 | 125.48 | 5.36 | 344.38 | 0.3299 | -1052.2 | -774.3 | |
| 1.88 | 12.89 | 0.99 | 6.78 | 19.58 | 125.40 | 5.29 | 345.13 | 0.3400 | -905.7 | -433.7 | |
| 0.00 | 2.30 | 0.00 | 1.21 | 19.33 | 125.36 | 5.25 | 345.03 | 0.3358 | -854.0 | -715.3 | |
| 1.02 | 4.18 | 0.54 | 2.18 | 18.71 | 124.09 | 3.98 | 348.13 | 0.3209 | 926.1 | 695.4 | |
| 1.62 | 3.58 | 0.85 | 1.88 | 19.14 | 124.07 | 3.96 | 348.48 | 0.3279 | 738.7 | 734.0 | |
| 2.05 | 242.27 | 1.07 | 126.71 | 19.46 | 123.17 | 3.06 | 351.21 | 0.3304 | 1019.2 | 445.1 | |
| 9.98 | -16.00 | 5.23 | -16.00 | 19.43 | 122.82 | 2.71 | 352.18 | 0.3291 | 986.5 | 999999 | |
| 39.85 | -16.00 | 20.83 | -16.00 | 18.99 | 122.35 | 2.23 | 353.37 | 0.3209 | 1213.2 | 999999 | |
| 3.07 | -16.00 | 1.61 | -16.00 | 19.55 | 121.95 | 1.83 | 354.72 | 0.3295 | 857.3 | 999999 | |
| 2.05 | -16.00 | 1.07 | -16.00 | 19.74 | 121.79 | 1.68 | 355.22 | 0.3323 | 793.3 | 999999 | |
| 2.30 | 3.33 | 1.22 | 1.76 | 21.00 | 121.68 | 1.57 | 355.83 | 0.3528 | 838.4 | 739.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.18 | 120.88 | 0.76 | 357.62 | 0.3055 | -814.0 | -578.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
